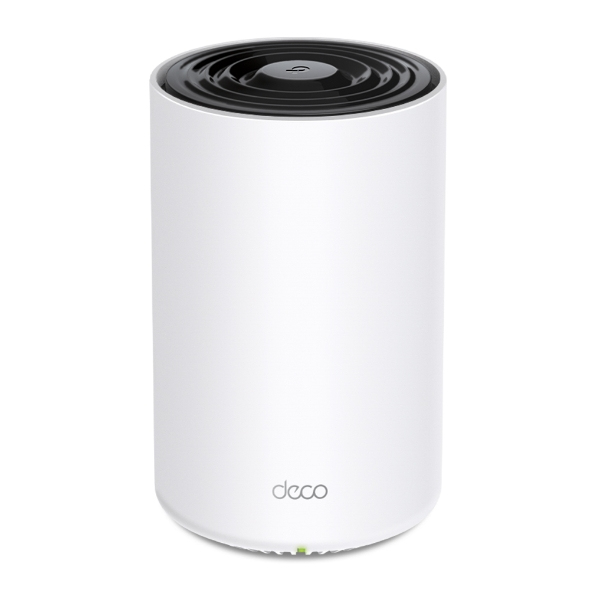

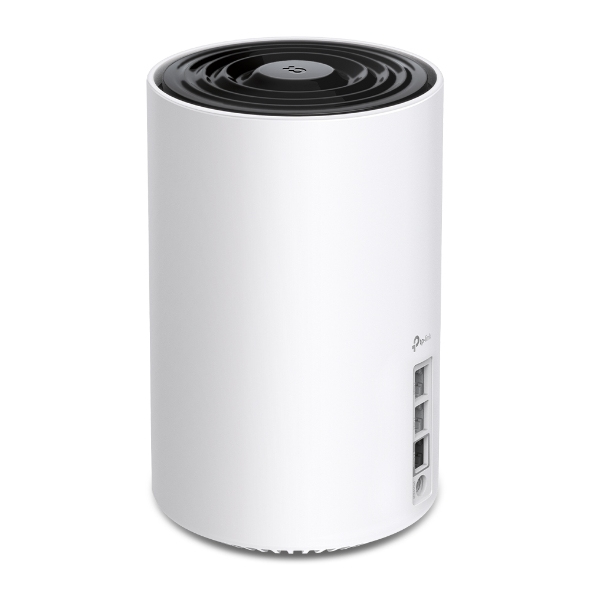

Deco X80
Model Deco X80Part no. DECO X80(1-PACK)EAN 4897098688250
54 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh system
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Mobile network generationNot supported
- Quality of Service (QoS) supportYes
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh system
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Mobile network generation
- Not supported
- Quality of Service (QoS) support
- Yes
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- Deco X80
- Part number
- DECO X80(1-PACK)
- EAN / UPC
- 4897098688250
- Also known as
- TP-Link AX6000 Dual-Band Mesh WiFi 6 System
Specifications
54 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh system |
| Antenna type | Internal |
| Antennas quantity | 4 |

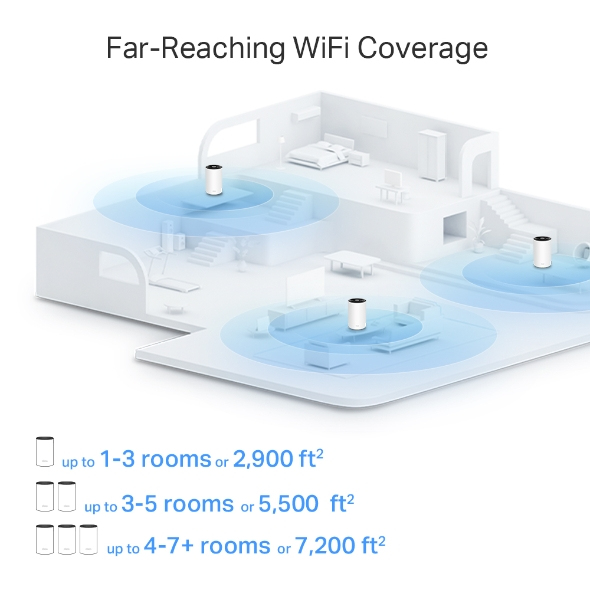

| Maximum coverage | 269 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |

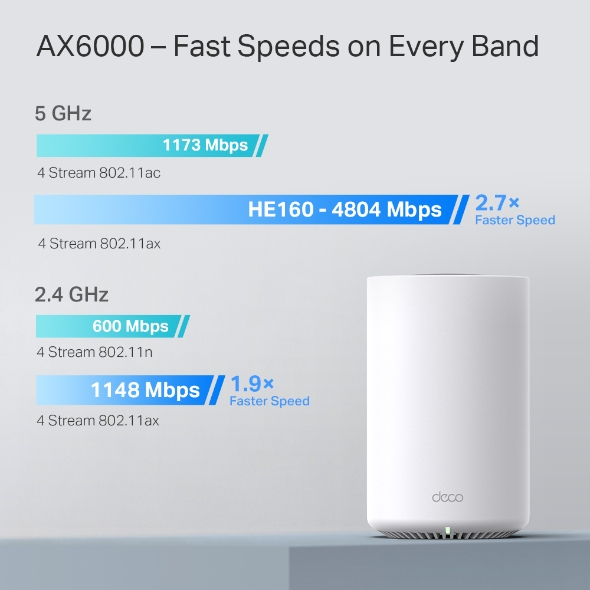

| WLAN data transfer rate (max) | 6000 Mbit/s |
| WLAN data transfer rate (first band) | 1148 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| Networking standards | IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA-Personal, WPA2-Personal, WPA3-Personal |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Apps supported | TP-Link Deco |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | Not supported |
Features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Parental control | Yes |
| Parental control features | Bedtime, Content filter, Custom profiles, Family online time ranking, Family time, Off time, Pause the Internet, Professional content filter library, Time rewards, Weekly/monthly reports |
| Firmware upgradeable via | Network |
| MU-MIMO technology | Yes |
| MIMO | Yes |

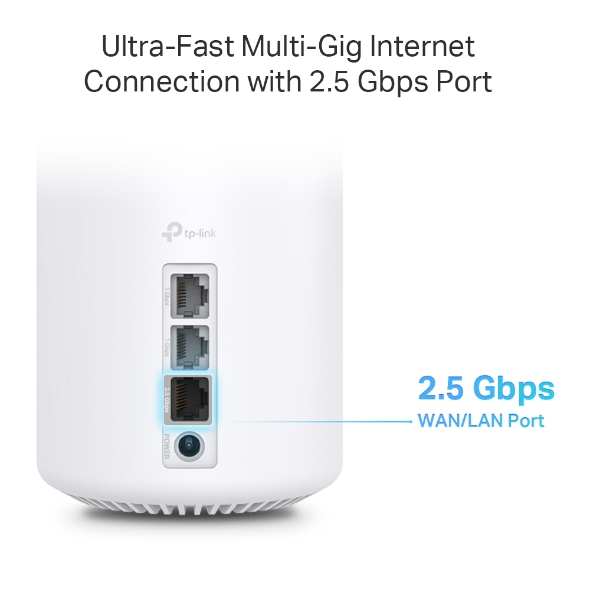

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | CE, FCC, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 105 mm |
| Height | 169 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
