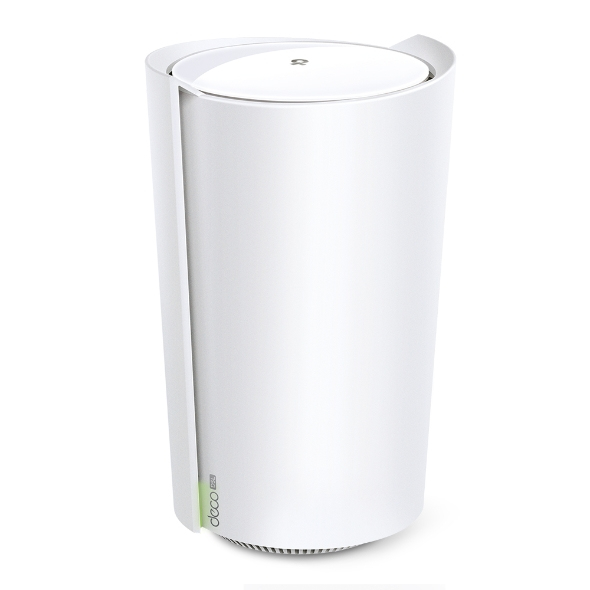

Deco X73-DSL
Model Deco X73-DSLPart no. DECO X73-DSLEAN 6935364072872
50 specifications
- SpeedWi-Fi 6 (802.11ax)
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- ADSLYes
- Ethernet LAN (RJ-45) ports4
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- ADSL
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- Deco X73-DSL
- Part number
- DECO X73-DSL
- EAN / UPC
- 6935364072872, 6935364072889
- Also known as
- TP-Link AX5400 VDSL Whole Home Mesh Wi-Fi 6 System
Specifications
50 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Number of devices supported | 200 |
| Maximum coverage | 270 m² |
| Transmit power | 23 dBmW |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 4804 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |

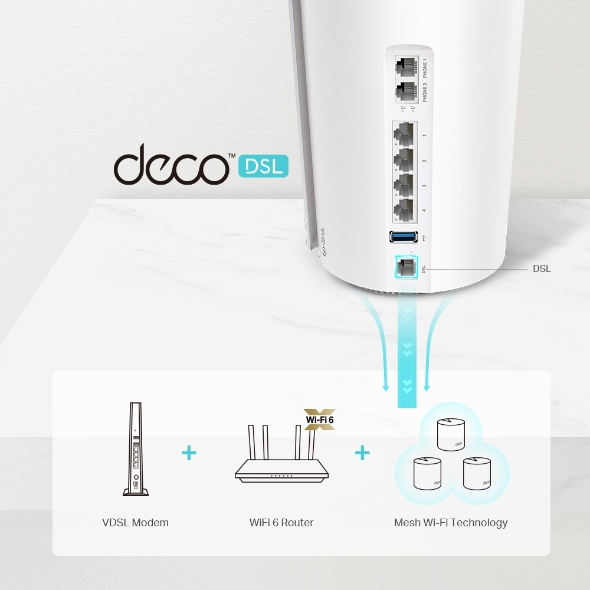

DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL2 | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
| Processor frequency | 1 GHz |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI |
| BeamForming | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |

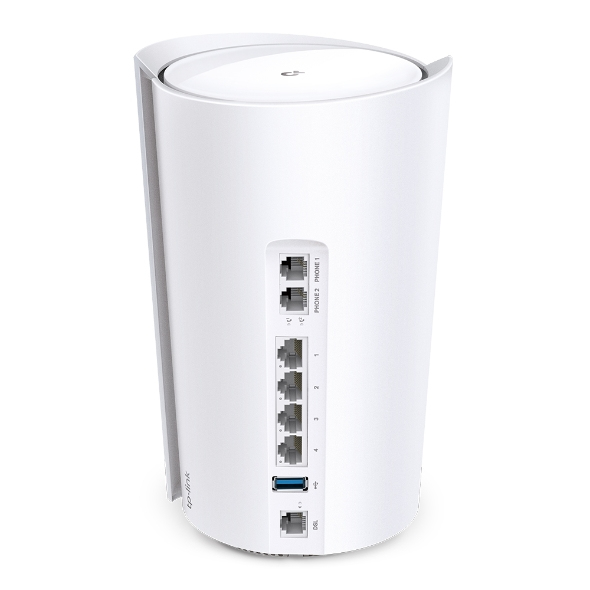

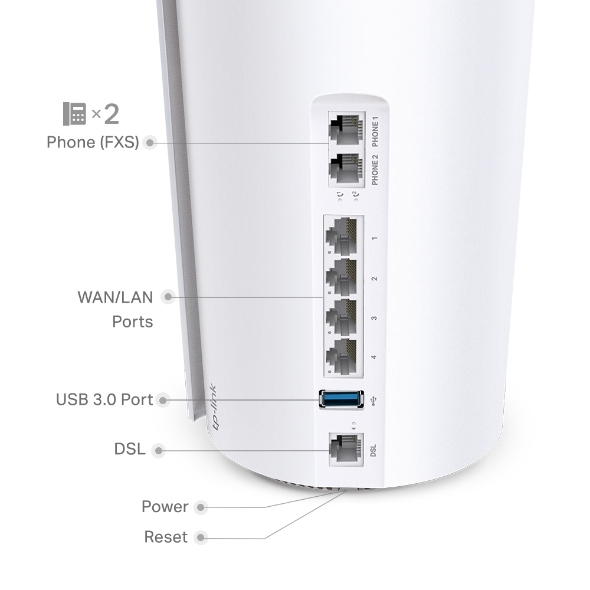

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet WAN | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 123 mm |
| Height | 210.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
