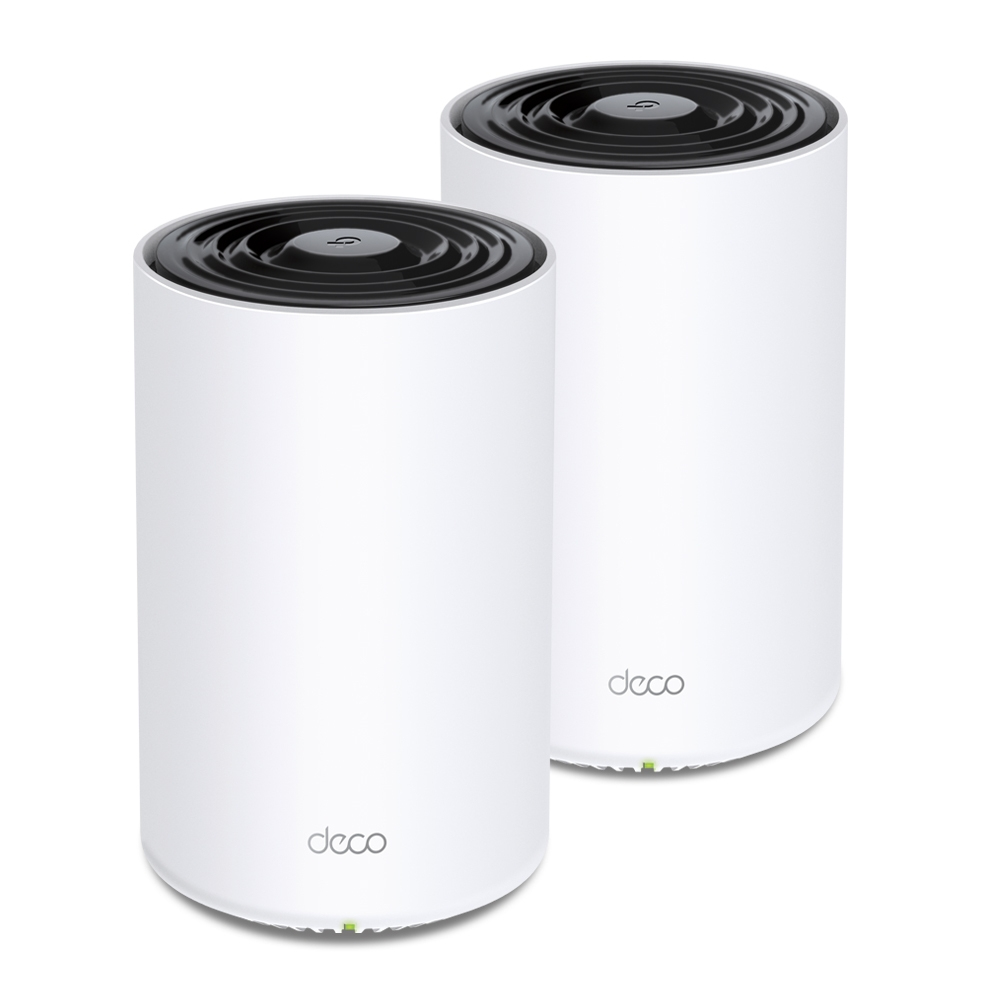

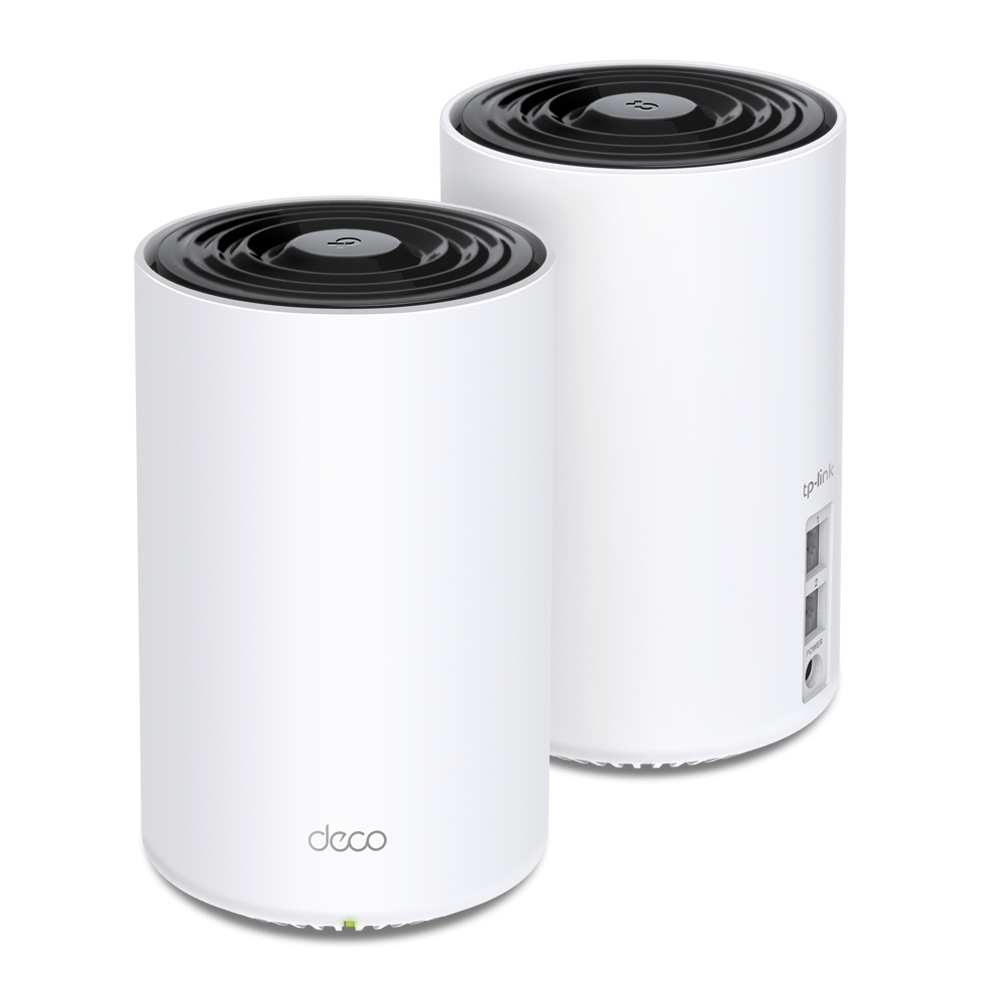

Deco X68 (2-pack)
Model Deco X68 (2-pack)Part no. DECO X68(2-PACK)EAN 840030701399
62 specifications
- SpeedWi-Fi 6 (802.11ax)
- ColourBlack, White
- Built-in processorYes
- Ethernet LAN (RJ-45) ports2
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Colour
- Black, White
- Built-in processor
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- Deco X68 (2-pack)
- Part number
- DECO X68(2-PACK)
- EAN / UPC
- 840030701399, 6935364052805, 6935364072179
- Also known as
- TP-Link AX3600 Whole Home Mesh WiFi 6 System
Specifications
62 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 5 |
| Number of devices supported | 150 |
| Transmit power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz); FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (third band) | 1802 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Apps supported | TP-Link Deco |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.5 GHz |
| Cloud services supported | TP-Link ID |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| BeamForming | Yes |
| Transmitting power (CE) | <20 dBm (2.4 GHz) <23 dBm (5 GHz) |
| Transmitting power (FCC) | <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| NAT functionality | Port Forwarding UPnP |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Parental control | Yes |
| Parental control features | Content filter, Custom profiles, Pause the Internet, Time controls, Weekly and monthly reports |
| Firmware upgradeable via | Network |
| Supported WAN type | Dynamic IP Static IP PPPoE PPTP L2TP |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Operating modes | Router, Access Point |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2.5 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 105 mm |
| Height | 168 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 2 pc(s) |
| AC adapter included | Yes |
| Number of units included | 2 pc(s) |
| Ethernet cable | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
