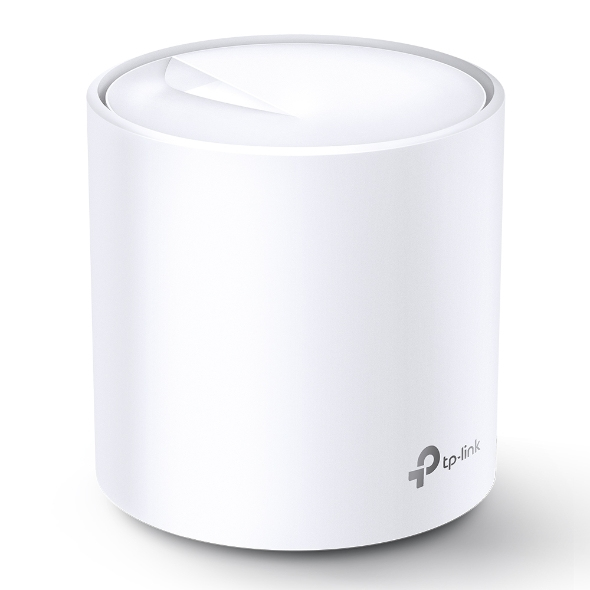

Deco X20 (1-pack)
Model Deco X20 (1-pack)Part no. DECO X20EAN 840030701122
52 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeMesh router
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Built-in processorYes
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mesh router
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Built-in processor
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- Deco X20 (1-pack)
- Part number
- DECO X20
- EAN / UPC
- 840030701122, 1210002612241, 6935364052294, 6935364052430
- Also known as
- TP-Link AX1800 Whole Home Mesh Wi-Fi 6 System
Specifications
52 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Transmit power | FCC: <30 dBm, CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1775 Mbit/s |
| WLAN data transfer rate (first band) | 1201 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Guest access | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Quality of Service (QoS) support | Yes |
| Firewall security | SPI |
| DHCP client | Yes |
| DHCP server | Yes |
| Parental control | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC adapter input current | 0.4 A |
| AC input frequency | 50-60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 110 mm |
| Height | 114 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 194 mm |
| Package height | 125 mm |
| Package weight | 1.01 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
