Deco X10-4G
Model Deco X10-4GPart no. DECO X10-4G(1-PACK)EAN 4895252504248
59 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh router
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Mobile network generation4G
- Band steeringYes
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh router
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Mobile network generation
- 4G
- Band steering
- Yes
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- Deco X10-4G
- Part number
- DECO X10-4G(1-PACK)
- EAN / UPC
- 4895252504248, 4895252504255
- Also known as
- TP-Link 4G+ AX1500 Whole Home Mesh WiFi 6 Gateway
Specifications
59 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| LED indicators | Yes |
| Antenna type | Internal |
| Number of devices supported | 120 |

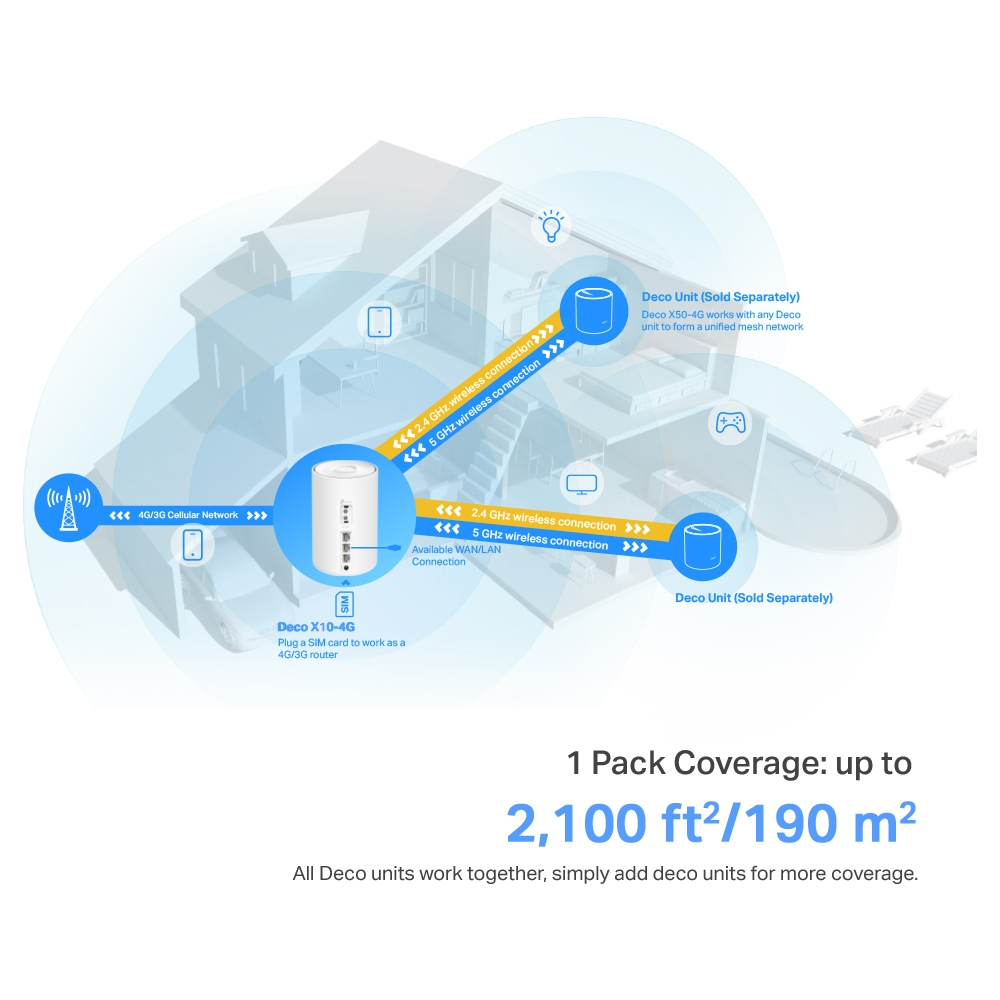

| Maximum coverage | 190 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1500 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA3-Personal, WPA-Personal, WPA2-Personal |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Apps supported | TP-Link Deco |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | 4G |
| 3G standards | DC-HSPA+, HSDPA, UMTS |
| 4G standard | TD-LTE & FDD-LTE |
| SIM card type | NanoSIM |
Features
| Specification | Value |
|---|---|
| Band steering | Yes |
| Port forwarding | Yes |
| BeamForming | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Parental control | Yes |
| Works with Amazon Alexa | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter input current | 0.6 A |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 105 mm |
| Height | 167 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
