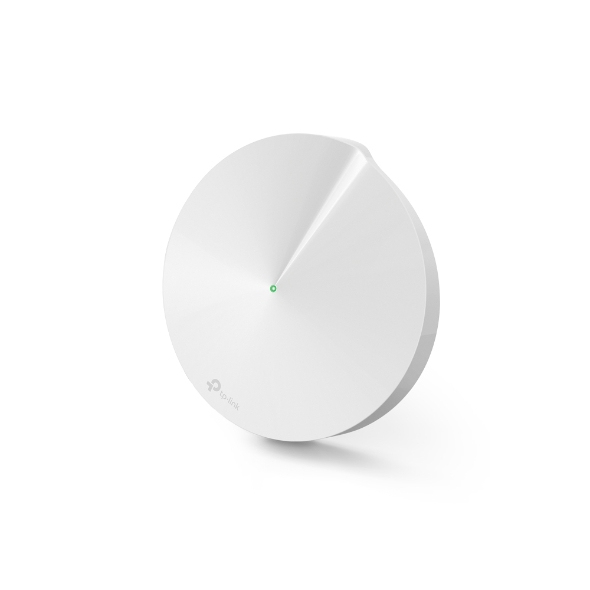

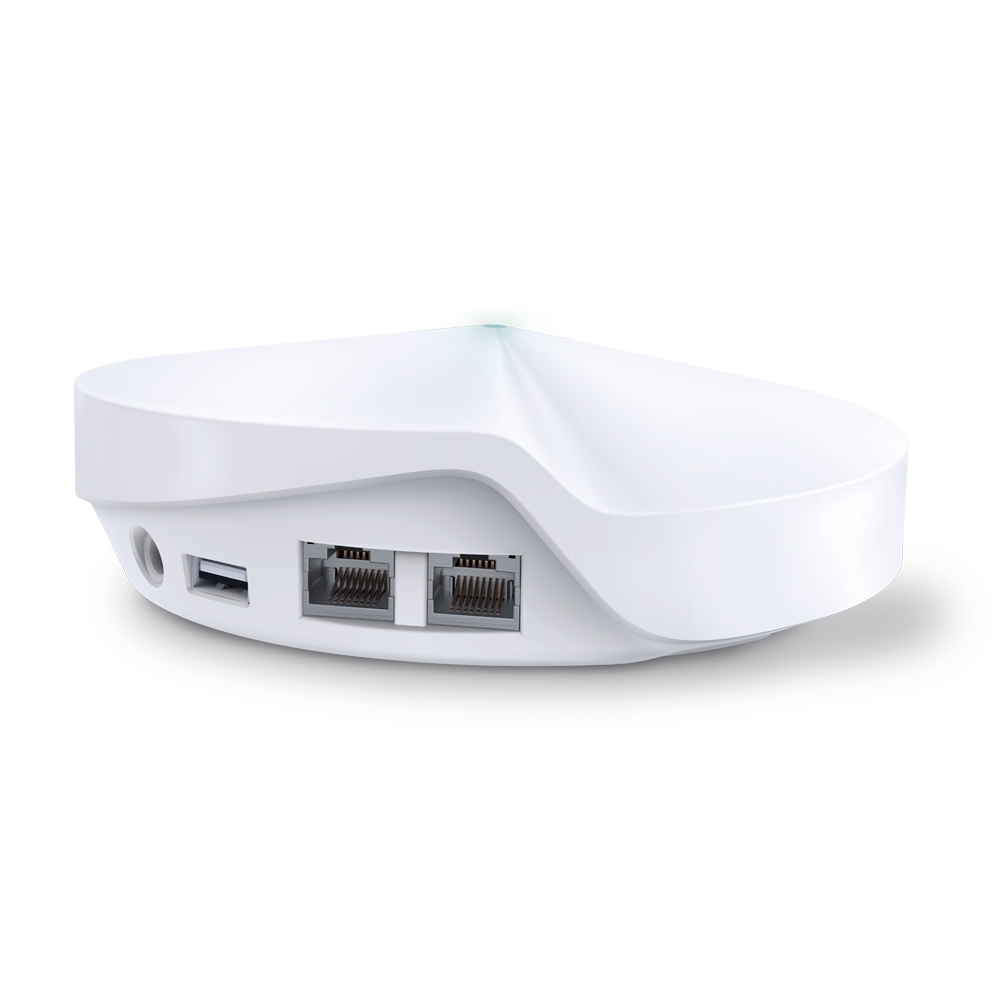

DECO M9 PLUS(3PV2)
Model DECO M9 PLUS(3PV2)
44 specifications
- SpeedWi-Fi 5 (802.11ac)
- ColourWhite
- Mobile network generationNo
- Processor cores4
- Ethernet LAN (RJ-45) ports2
- AC adapter output voltage12 V
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Colour
- White
- Mobile network generation
- No
- Processor cores
- 4
- Ethernet LAN (RJ-45) ports
- 2
- AC adapter output voltage
- 12 V
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- DECO M9 PLUS(3PV2)
- Part number
- DECO M9 PLUS(3PV2)
- Also known as
- TP-Link DECO M9 PLUS(3PV2) mesh wi-fi system Tri-band (2.4 GHz / 5 GHz / 5 GHz) Wi-Fi 5 (802.11ac) White 2 Internal
Specifications
44 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 8 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 867 Mbit/s |
| WLAN data transfer rate (second band) | 400 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA, WPA2 |
| Number of guest networks (2.4 GHz) | 1 |
| Dynamic IP | Yes |
| Static IP | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | No |
Features
| Specification | Value |
|---|---|
| Processor cores | 4 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI |
| BeamForming | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Parental control | Yes |
| Firmware upgradeable via | Network, USB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144 mm |
| Depth | 144 mm |
| Height | 46 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 3 pc(s) |
| AC adapter included | Yes |
| Ethernet cable | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85171800 |
