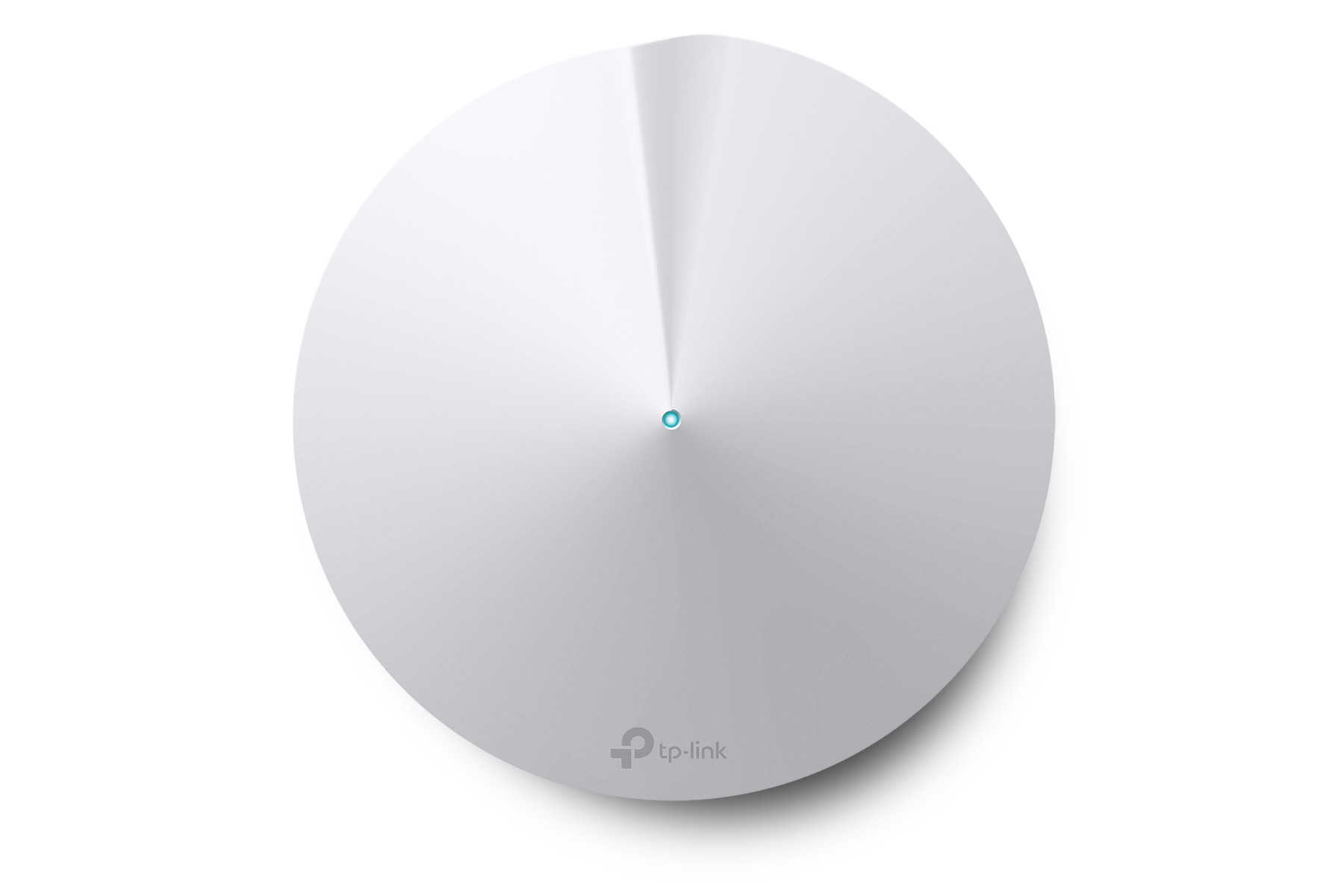

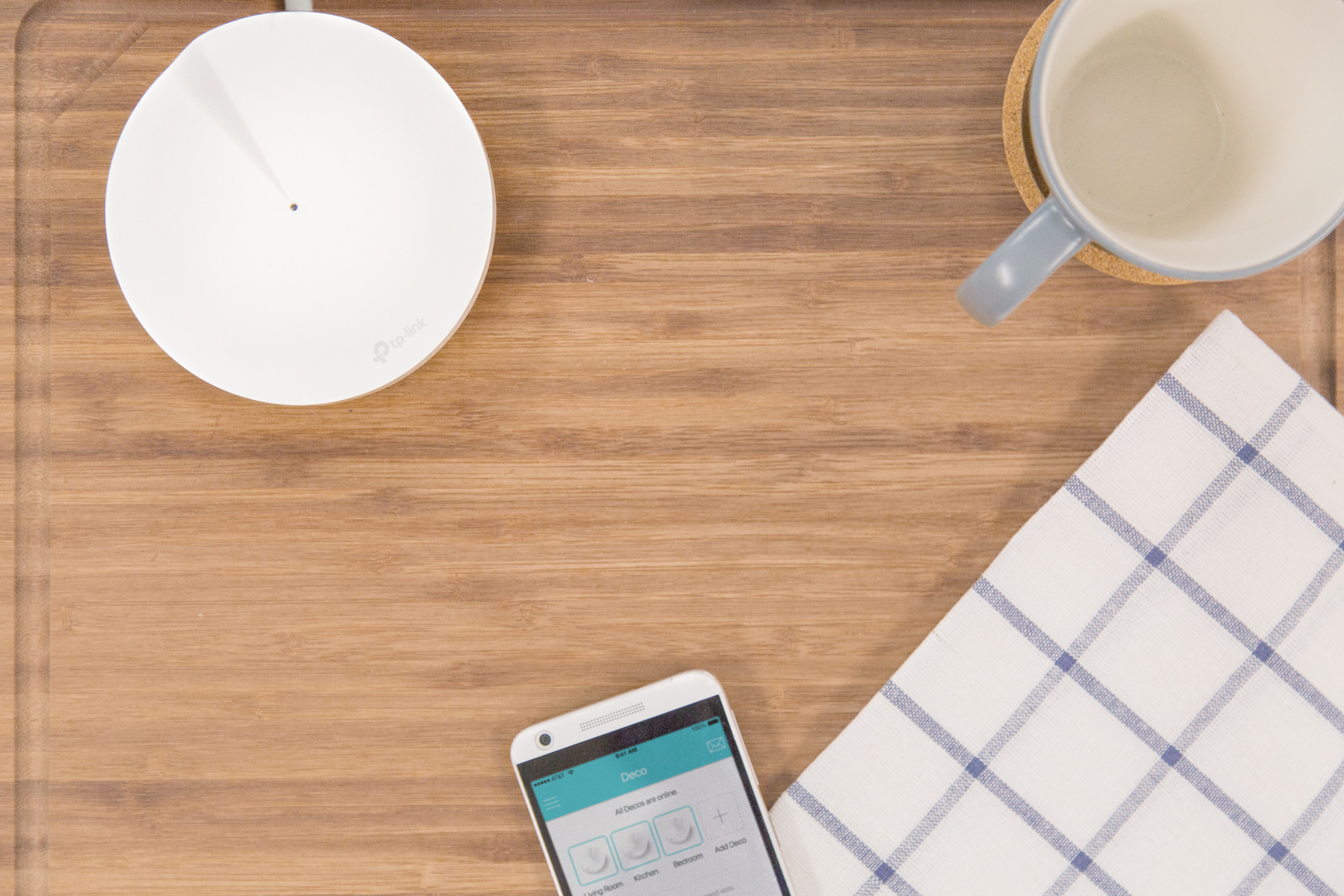

Deco M5 (1-Pack)
Model Deco M5 (1-Pack)Part no. DECO M5(1-PACK)EAN 845973080822
59 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeMesh router
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Built-in processorYes
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mesh router
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Built-in processor
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- Deco M5 (1-Pack)
- Part number
- DECO M5(1-PACK)
- EAN / UPC
- 845973080822, 6935364080822, 6935364083267
- Also known as
- TP-Link AC1300 Deco Whole Home Mesh Wi-Fi System
Specifications
59 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1267 Mbit/s |
| WLAN data transfer rate (first band) | 400 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA-PSK, WPA2-PSK |
| Number of guest networks (2.4 GHz) | 1 |
| Dynamic IP | Yes |
| Static IP | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| BeamForming | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Mobile operating systems supported | Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
| Universal Plug and Play (UPnP) | Yes |
| Parental control | Yes |
| Parental control features | Content filter, Custom profiles, Time controls, Time rewards, Weekly/monthly reports |
Ports & interfaces
| Specification | Value |
|---|---|

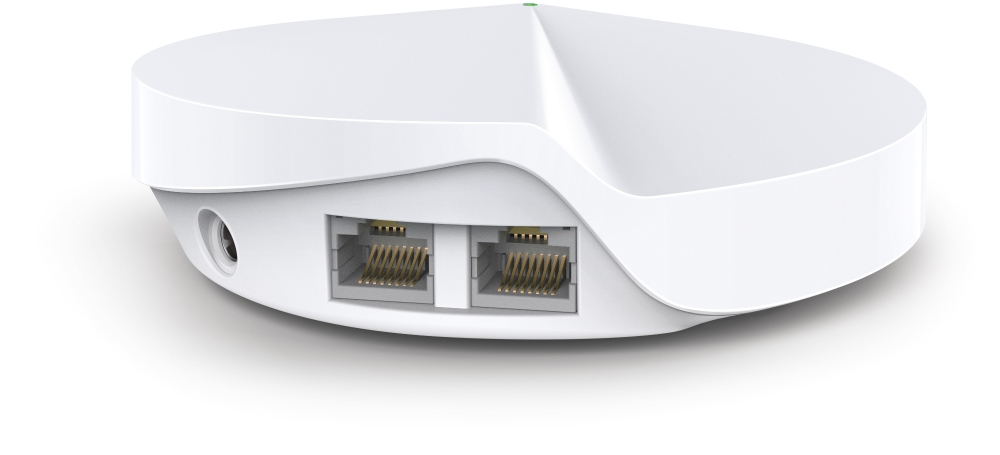

| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.2 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 38 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195.5 mm |
| Package depth | 194 mm |
| Package height | 101 mm |
| Package weight | 630 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
