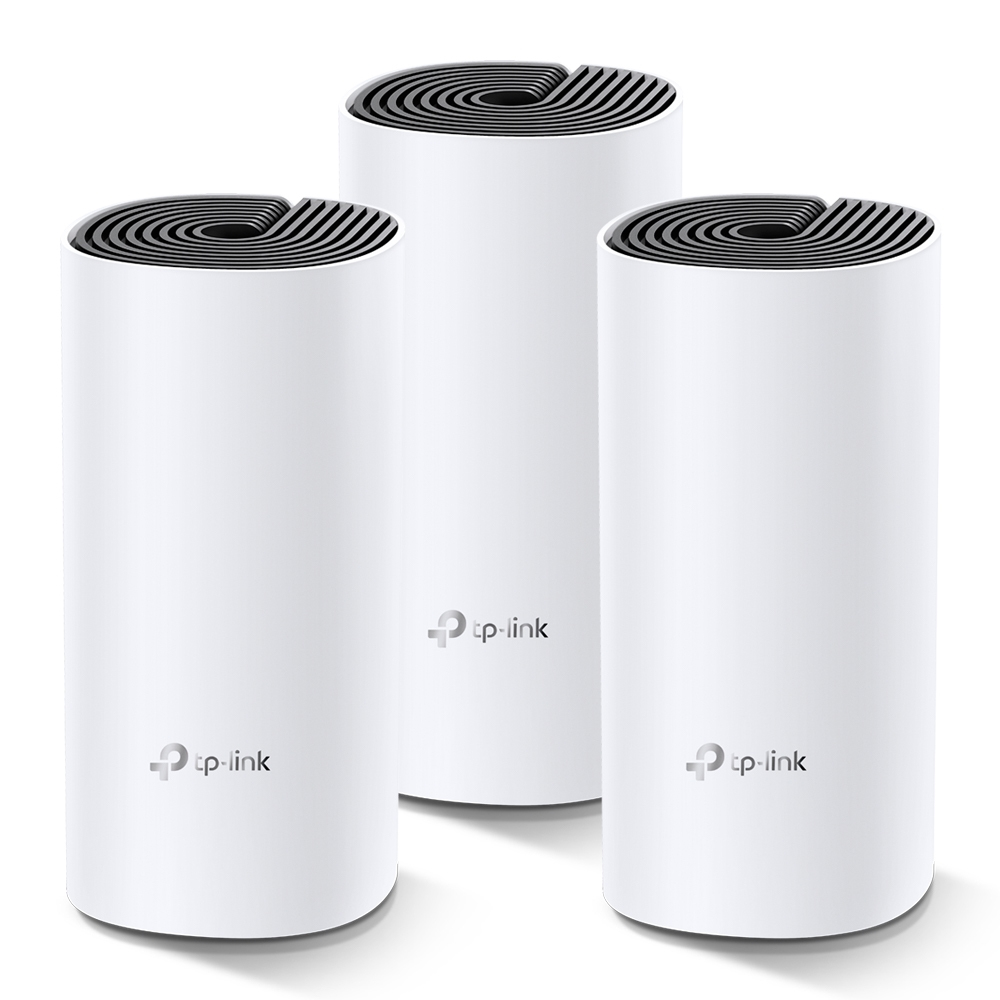

AC1200 Dual-band (2.4 GHz
5 GHz) Wi-Fi 5 (802.11ac) White 2 Internal
Model AC1200Part no. DECO M4, 3-PACKEAN 8435280924685
43 specifications
- SpeedWi-Fi 5 (802.11ac)
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Built-in processorYes
- Ethernet LAN (RJ-45) ports2
- AC adapter output voltage12 V
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Built-in processor
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- AC adapter output voltage
- 12 V
- Brand
- TP-Link
- Category
- Mesh Wi-Fi System
- Model
- AC1200
- Part numbers
- DECO M4, 3-PACK, DECO M4, 2-PACK, DECO M4(3-PACK)-REACOND
- EAN / UPC
- 8435280924685
- Also known as
- TP-Link AC1200 Dual-band (2.4 GHz / 5 GHz) Wi-Fi 5 (802.11ac) White 2 Internal
Specifications
43 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Number of devices supported | 100 |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (second band) | 300 Mbit/s |
| Security algorithms | WPA, WPA2 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| DHCP client | Yes |
| Mobile operating systems supported | Android, iOS |
| Parental control | Yes |
| Parental control features | Content filter, Time controls |
| Firmware upgradeable via | Network |
| MU-MIMO technology | Yes |
| MIMO | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.7 mm |
| Depth | 90.7 mm |
| Height | 190 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 3 pc(s) |
| AC adapter included | Yes |
| Number of units included | 3 pc(s) |
| Ethernet cable | Yes |
