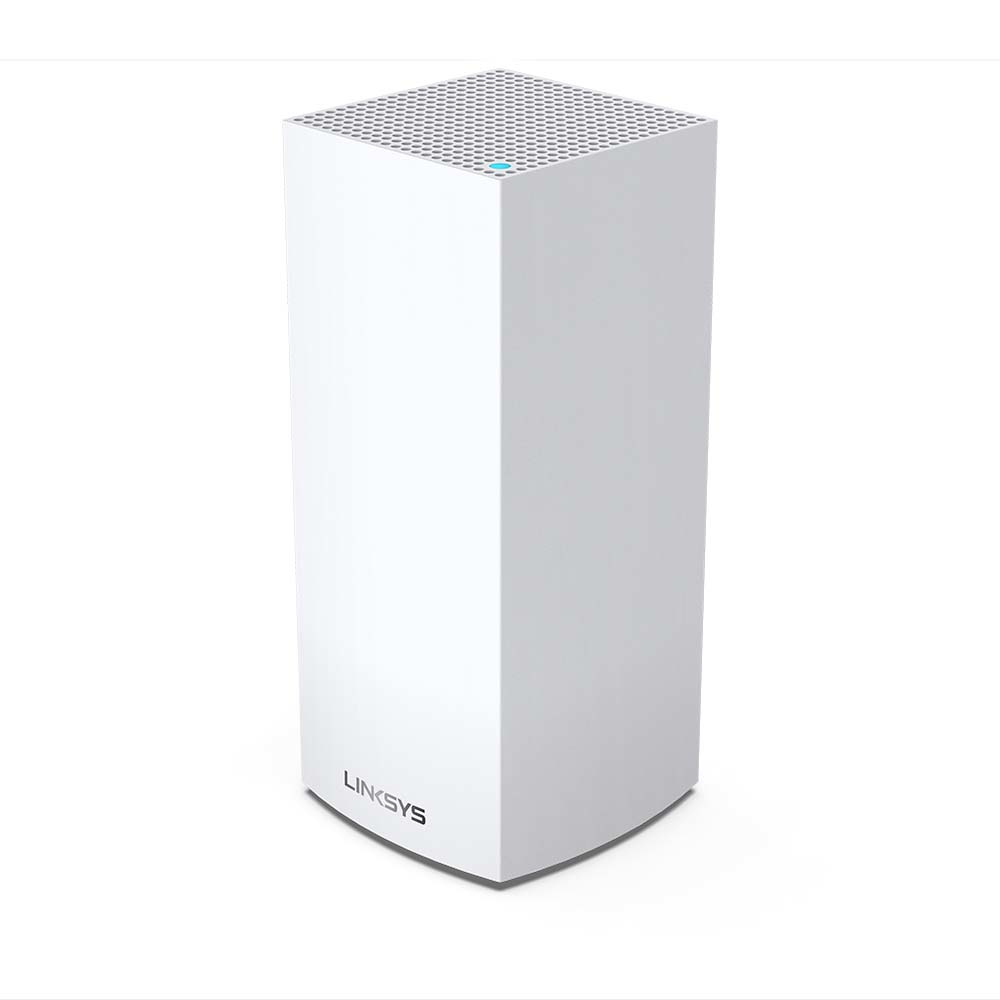

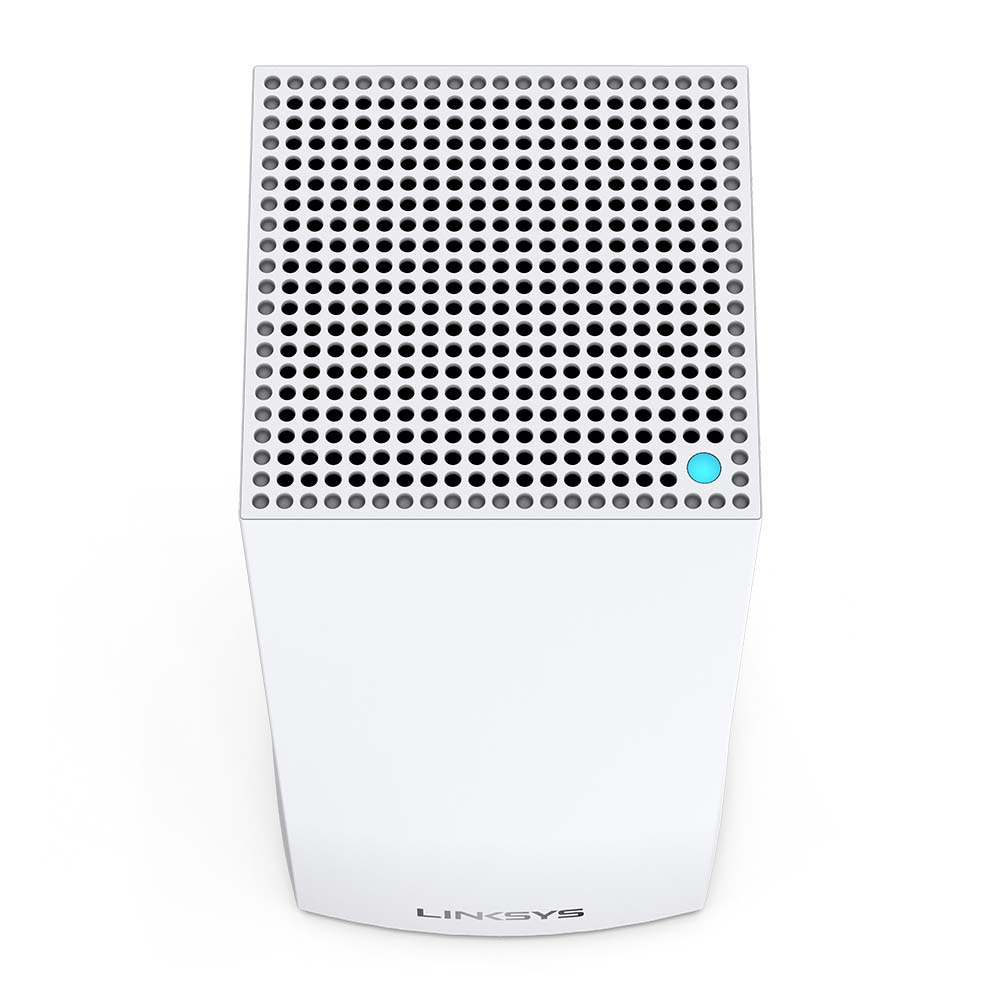

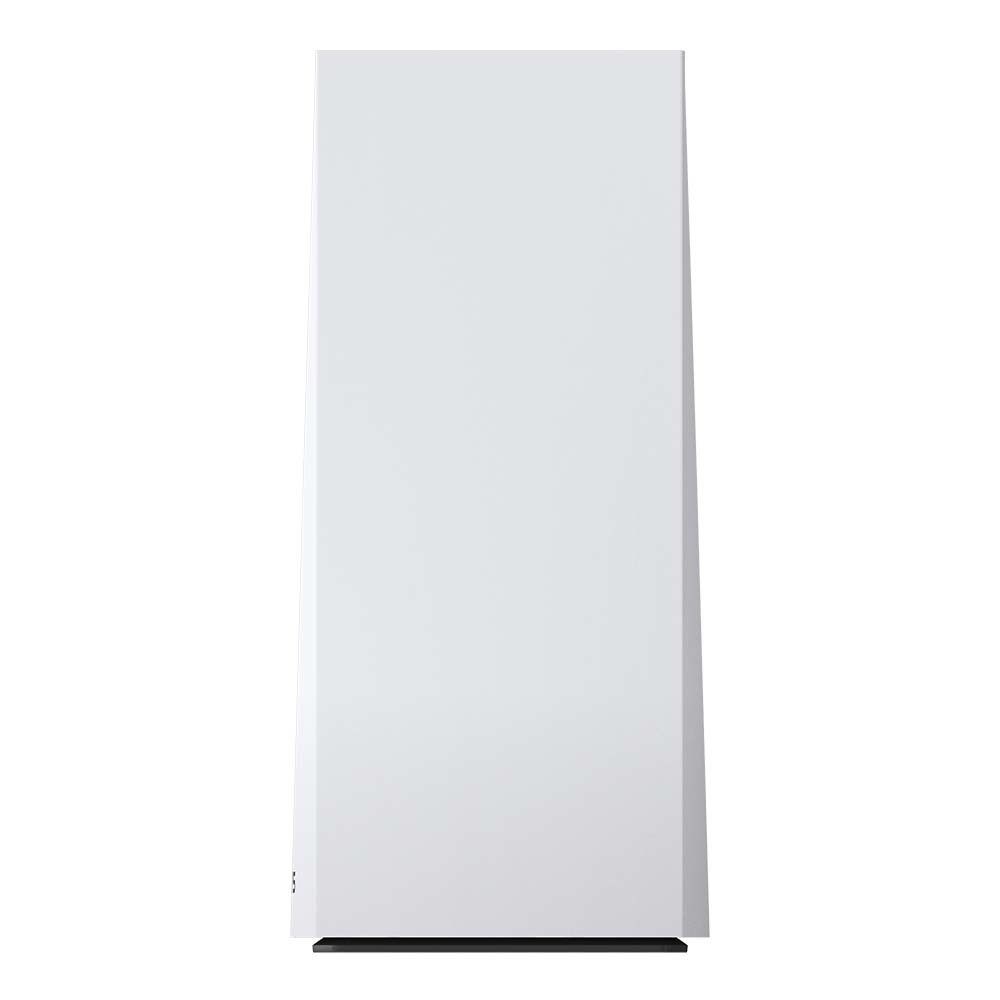

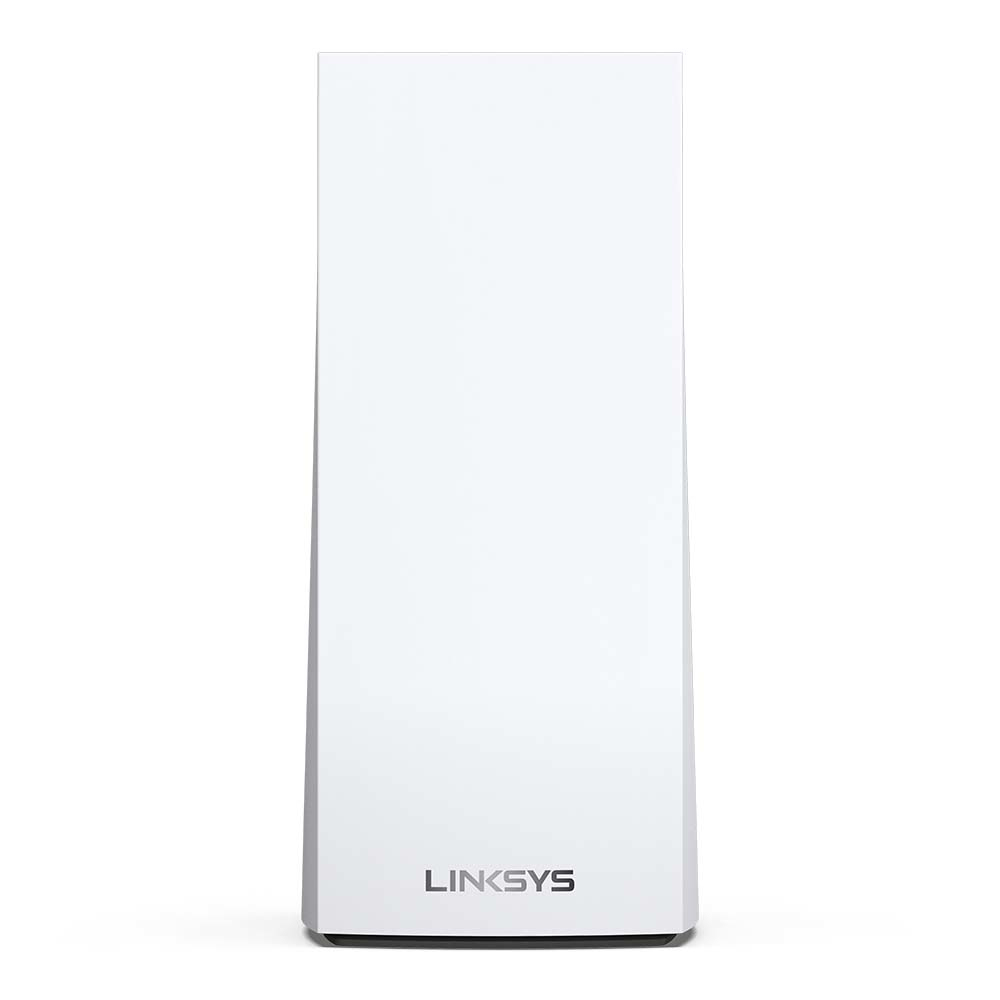

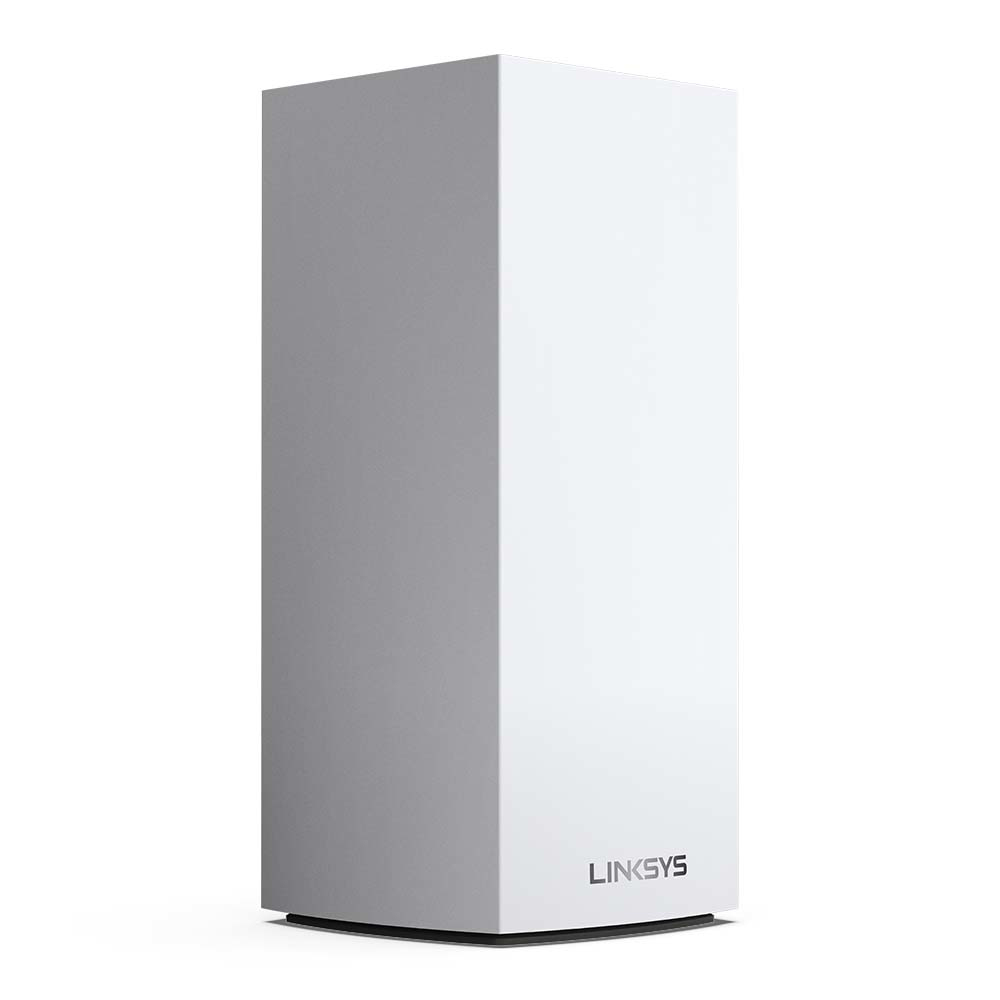

WiFi 6 AX5300 Whole Home Mesh Tri‑Band System
Model MX5300-EUEAN 745883782987
45 specifications
- Memory1000 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight1.59 kg
- ColourBlack, White
- Built-in processorYes
Overview
- Memory
- 1000 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 1.59 kg
- Colour
- Black, White
- Built-in processor
- Yes
- Brand
- Linksys
- Category
- Mesh Wi-Fi System
- Model
- MX5300-EU
- Part number
- MX5300-EU
- EAN / UPC
- 745883782987, 4260184669158
- Also known as
- Linksys WiFi 6 AX5300 Whole Home Mesh Tri‑Band System
Specifications
45 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Product type | Tabletop router |
| LED indicators | Yes |
| Antenna type | Internal |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 5400 Mbit/s |
| WLAN data transfer rate (first band) | 1147 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 1733 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA2, WPA3 |
| Guest access | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 2.2 GHz |
| Internal memory | 1000 MB |
| Flash memory | 512 MB |
| MU-MIMO technology | Yes |
| MIMO | Yes |

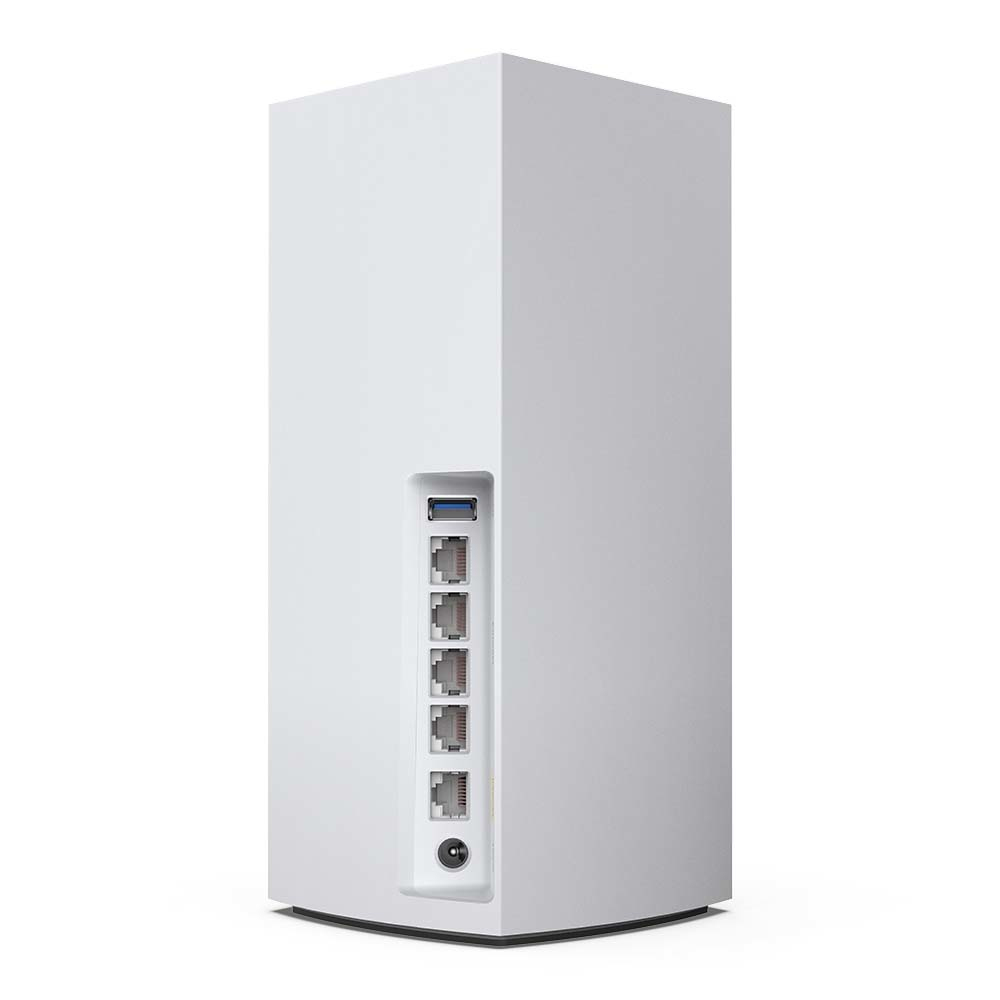

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter input current | 0.7 A |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 4 A |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 110 mm |
| Height | 244 mm |
| Weight | 1.59 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
