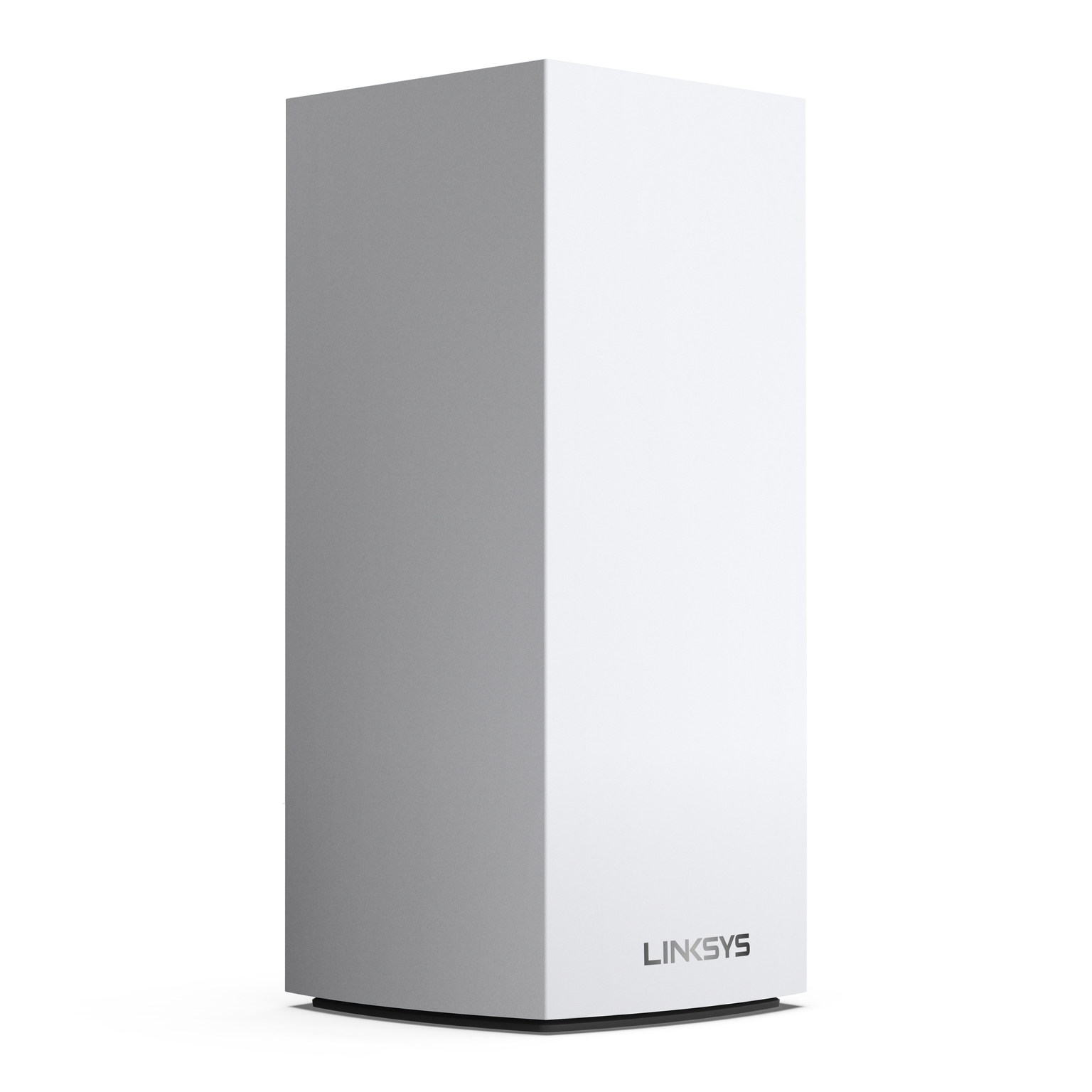

Velop Whole Home Intelligent Mesh WiFi 6 (AX4200) System, Tri-Band, 1-pack
Model MX4200Part no. MX4200-EUEAN 745883809882
49 specifications
- Memory512 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh router
- Weight950 g
- ColourWhite
- Built-in processorYes
Overview
- Memory
- 512 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh router
- Weight
- 950 g
- Colour
- White
- Built-in processor
- Yes
- Brand
- Linksys
- Category
- Mesh Wi-Fi System
- Model
- MX4200
- Part number
- MX4200-EU
- EAN / UPC
- 745883809882, 745883809912, 4260184670413
- Also known as
- Linksys Velop Whole Home Intelligent Mesh WiFi 6 (AX4200) System, Tri-Band, 1-pack
Specifications
49 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 6 |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4200 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (third band) | 2402 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA2, WPA3 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.4 GHz |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter input current | 0.9 A |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 110 mm |
| Height | 259 mm |
| Weight | 950 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 310.4 mm |
| Package depth | 134.9 mm |
| Package height | 250.8 mm |
| Package weight | 1.41 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
