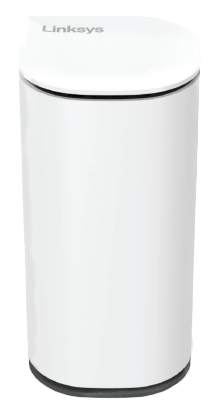

LN1603-KE Dual-band (2.4 GHz
5 GHz) Wi-Fi 7 (802.11be) White 1 Internal
Model LN1603-KEPart no. LN1601-KEEAN 4260184676002
31 specifications
- SpeedWi-Fi 7 (802.11be)
- TypeMesh system
- Weight986 g
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Mobile network generationNot supported
Overview
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Mesh system
- Weight
- 986 g
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Mobile network generation
- Not supported
- Brand
- Linksys
- Category
- Mesh Wi-Fi System
- Model
- LN1603-KE
- Part numbers
- LN1601-KE, LN1603-KE
- EAN / UPC
- 4260184676002, 4260184676071
- Also known as
- Linksys LN1603-KE Dual-band (2.4 GHz / 5 GHz) Wi-Fi 7 (802.11be) White 1 Internal
Specifications
31 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh system |
| LED indicators | Power, Status |
| Antenna type | Internal |
| Maximum coverage | 200 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 5000 Mbit/s |
| Security algorithms | WPA3, WPA2 |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | Not supported |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Bluetooth | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Universal Plug and Play (UPnP) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet WAN | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 9 V |
| AC adapter output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 139 mm |
| Depth | 240 mm |
| Height | 80.5 mm |
| Weight | 986 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Number of units included | 1 pc(s) |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
