ATLAS MAX 6E
Model ATLAS MAX 6EPart no. MX8503EAN 745883817306
35 specifications
- Memory512 MB
- SpeedWi-Fi 6E (802.11ax)
- TypeMesh router
- Weight1.47 kg
- ColourWhite
- Built-in processorYes
Overview
- Memory
- 512 MB
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mesh router
- Weight
- 1.47 kg
- Colour
- White
- Built-in processor
- Yes
- Brand
- Linksys
- Category
- Mesh Wi-Fi System
- Model
- ATLAS MAX 6E
- Part numbers
- MX8503, MX8502
- EAN / UPC
- 745883817306, 745883817290
- Also known as
- Linksys ATLAS MAX 6E Tri-band (2.4 GHz / 5 GHz / 6 GHz) Wi-Fi 6E (802.11ax) White 4 Internal
Specifications
35 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 12 |
| Maximum coverage | 836 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (first band) | 1147 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 4804 Mbit/s |
| Security algorithms | WPA2, WPA3 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 2.2 GHz |
| Internal memory | 512 MB |
| Flash memory | 1024 MB |
| Bluetooth | Yes |
| Mobile operating systems supported | Android, iOS |
| Supported WAN type | 5Gbps WAN |
| MU-MIMO technology | Yes |

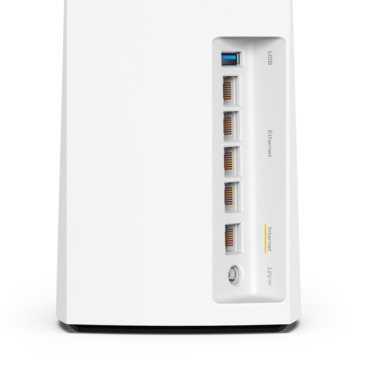

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 4 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 445 mm |
| Height | 957 mm |
| Weight | 1.47 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 3 pc(s) |
