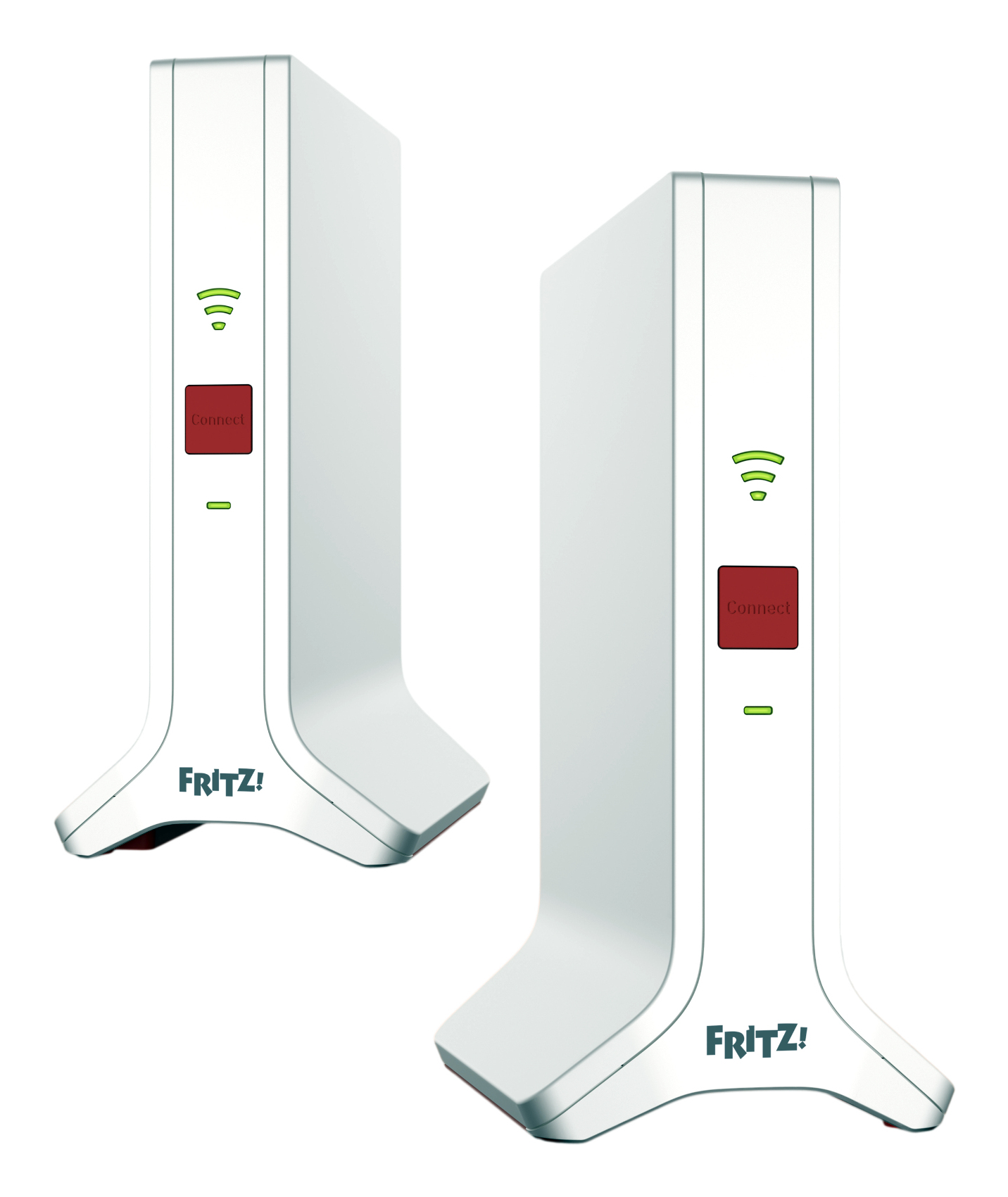

Mesh Set 4200 Dual-band (2.4 GHz
5 GHz) Wi-Fi 6E (802.11ax) Red, White 2 Internal
Model 4200Part no. 20003136EAN 4023125031366
22 specifications
- SpeedWi-Fi 6E (802.11ax)
- ColourRed, White
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Mobile network generationNot supported
- WPS push buttonYes
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- Wi-Fi 6E (802.11ax)
- Colour
- Red, White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Mobile network generation
- Not supported
- WPS push button
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- FRITZ!
- Category
- Mesh Wi-Fi System
- Model
- 4200
- Part numbers
- 20003136, 20003137
- EAN / UPC
- 4023125031366, 4023125031373
- Also known as
- Mesh Set 4200 Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6E (802.11ax) Red, White 2 Internal
Specifications
22 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | Red, White |
| Antenna type | Internal |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (max) | 4200 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA2, WPA3 |
Mobile network
| Specification | Value |
|---|---|
| Mobile network generation | Not supported |
Features
| Specification | Value |
|---|---|
| WPS push button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 9 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 145 mm |
| Height | 190 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 232 mm |
| Package depth | 246 mm |
| Package height | 150 mm |
| Package weight | 1.4 kg |
