M30 (2-Pack)
Model M30 (2-Pack)Part no. M30-2/EEAN 790069472831
37 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh system
- Weight295 g
- ColourBlue, White
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Quality of Service (QoS) supportYes
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh system
- Weight
- 295 g
- Colour
- Blue, White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Quality of Service (QoS) support
- Yes
- Brand
- D-Link
- Category
- Mesh Wi-Fi System
- Model
- M30 (2-Pack)
- Part number
- M30-2/E
- EAN / UPC
- 790069472831
- Also known as
- D-Link AX3000 Wi-Fi 6 Smart Mesh System
Specifications
37 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | Blue, White |
| Product type | Mesh system |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 5 |
| Maximum coverage | 465 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2403 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u |
| Security algorithms | WPA-Personal, WPA2-Personal, WPA3-Personal |
| Dynamic IP | Yes |
| Static IP | Yes |
Features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Parental control | Yes |

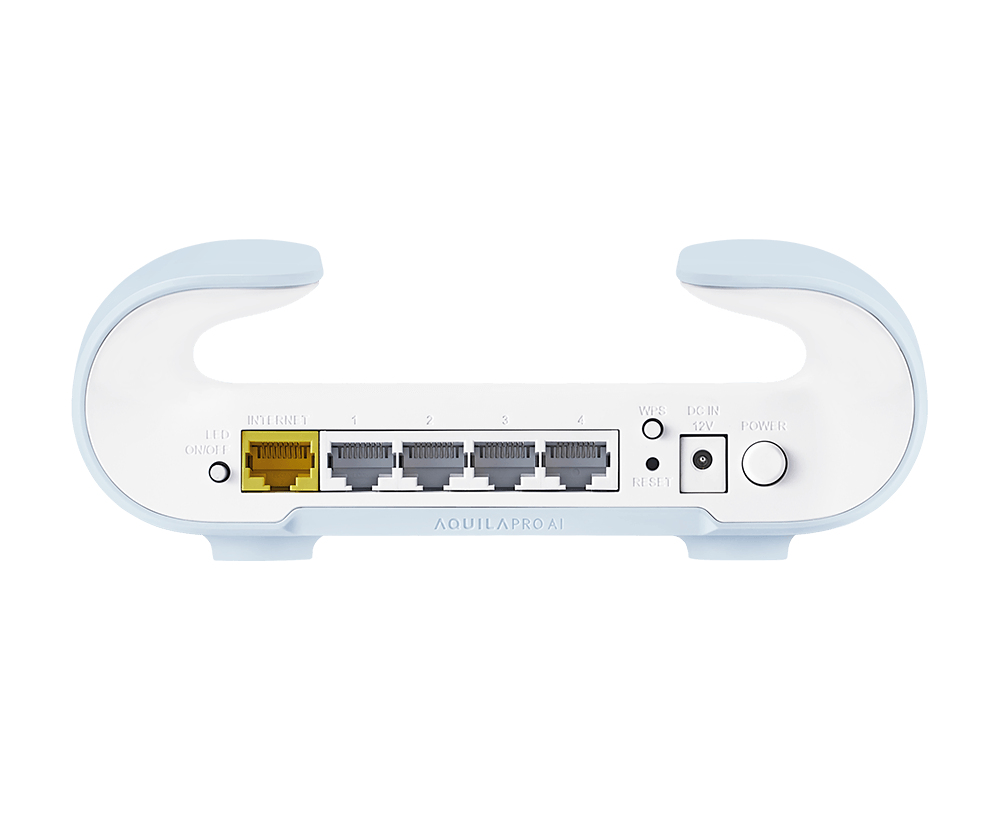

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, IC, NCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 181.5 mm |
| Depth | 129.2 mm |
| Height | 66 mm |
| Weight | 295 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Number of units included | 2 pc(s) |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
