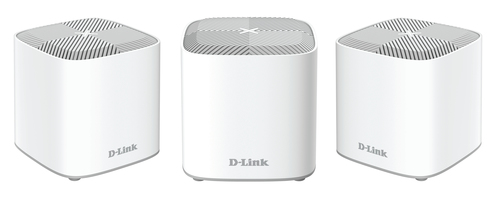

COVR AX1800 Dual Band Whole Home Mesh Wi‑Fi 6 System
Model COVR-X1863EAN 790069460166
22 specifications
- Weight263 g
- ColourWhite
- Security algorithmsWPA, WPA2, WPA3
- Quality of Service (QoS) supportYes
- Ethernet LAN (RJ-45) ports1
- AC input voltage12 V
Overview
- Weight
- 263 g
- Colour
- White
- Security algorithms
- WPA, WPA2, WPA3
- Quality of Service (QoS) support
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- AC input voltage
- 12 V
- Brand
- D-Link
- Category
- Mesh Wi-Fi System
- Model
- COVR-X1863
- Part number
- COVR-X1863
- EAN / UPC
- 790069460166, 790069460180
- Also known as
- D-Link COVR AX1800 Dual Band Whole Home Mesh Wi‑Fi 6 System
Specifications
22 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Power, Status |
| Antenna type | Internal |
| Antennas quantity | 4 |
Wireless LAN features
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v |
| Security algorithms | WPA, WPA2, WPA3 |
Features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| MIMO | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| AC input voltage | 12 V |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, IC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 104 mm |
| Depth | 111.8 mm |
| Height | 104 mm |
| Weight | 263 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
