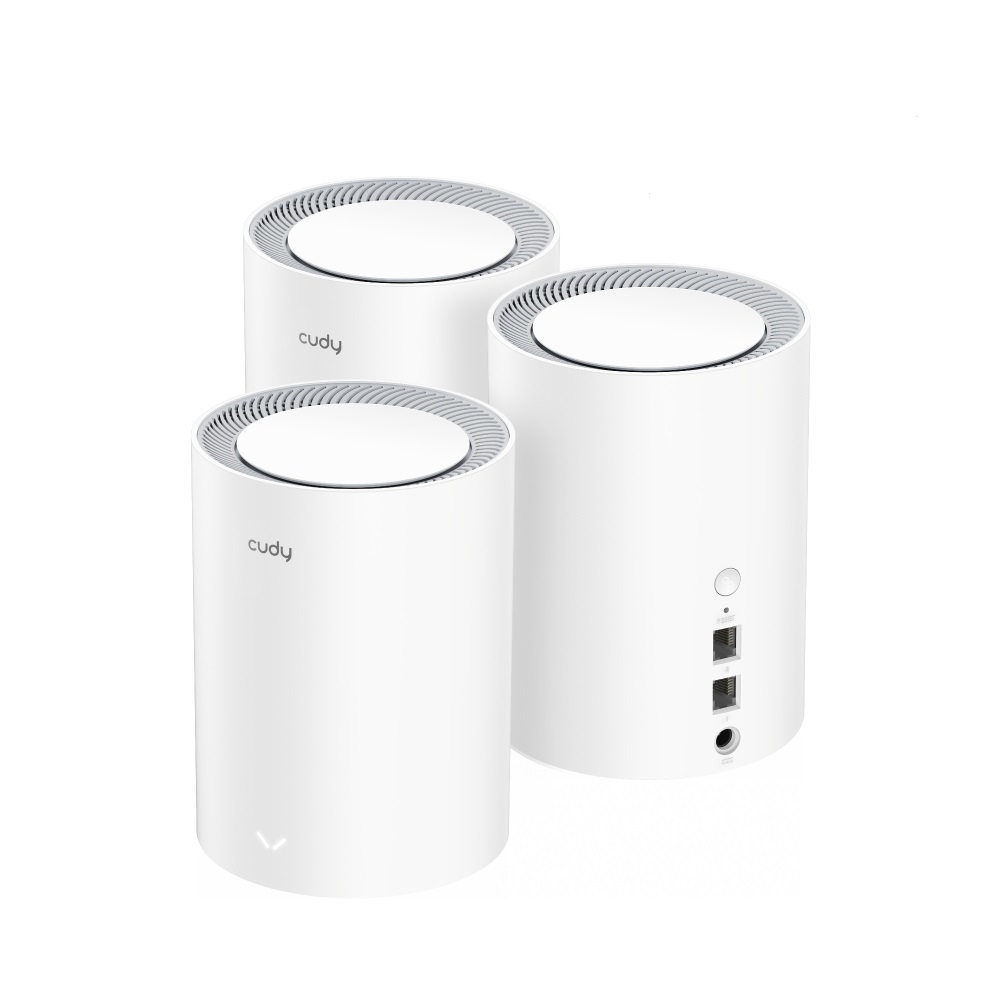

M1800 3-pack
Model M1800 3-packPart no. M1800 3-PACKEAN 6971690792824
36 specifications
- Memory16 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh system
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Built-in processorYes
Overview
- Memory
- 16 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh system
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Built-in processor
- Yes
- Brand
- Cudy
- Category
- Mesh Wi-Fi System
- Model
- M1800 3-pack
- Part number
- M1800 3-PACK
- EAN / UPC
- 6971690792824
- Also known as
- Cudy M1800 3-pack Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 1 Internal
Specifications
36 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh system |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna direction type | Omni-directional |
| Number of devices supported | 100 |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Guest access | Yes |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
| Internal memory | 16 MB |
| Flash memory | 256 MB |
| Port forwarding | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 3 pc(s) |
| AC adapter included | Yes |
| Number of units included | 3 pc(s) |
| Ethernet cable | Yes |
