M1200 2-pack
Model M1200 2-packPart no. M1200(2-PACK)
42 specifications
- Memory128 MB
- SpeedWi-Fi 5 (802.11ac)
- TypeMesh system
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports1
Overview
- Memory
- 128 MB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mesh system
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Cudy
- Category
- Mesh Wi-Fi System
- Model
- M1200 2-pack
- Part number
- M1200(2-PACK)
- Also known as
- Cudy M1200 2-pack Dual-band (2.4 GHz / 5 GHz) Wi-Fi 5 (802.11ac) White 1 Internal
Specifications
42 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh system |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna direction type | Omni-directional |
| Number of devices supported | 100 |
| Maximum coverage | 278 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of guest networks (5 GHz) | 1 |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard |
Features
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Port forwarding | Yes |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 30 dBm |
| Mac operating systems supported | MacOS |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Parental control | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |

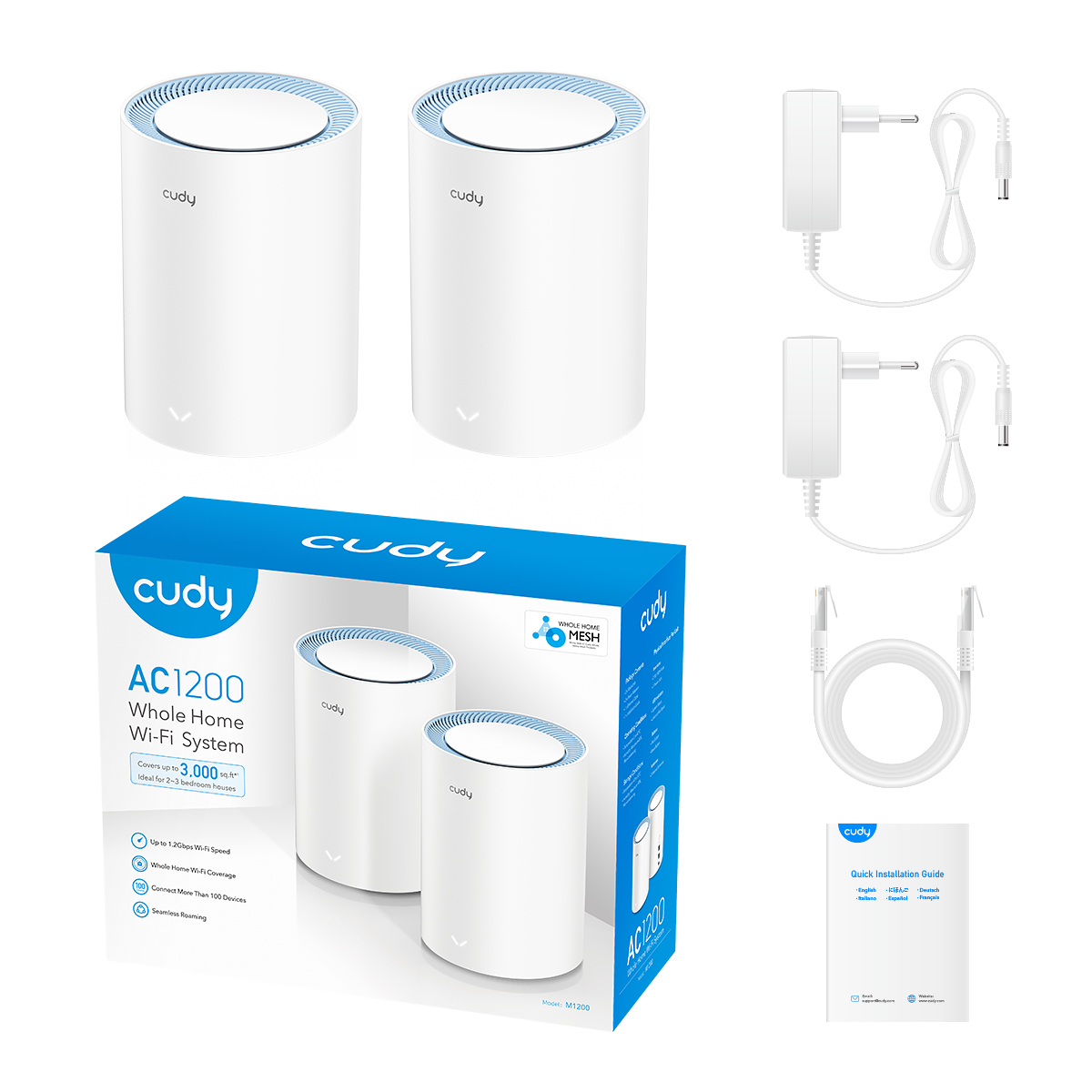

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 2 pc(s) |
| AC adapter included | Yes |
| Number of units included | 2 pc(s) |
| Ethernet cable | Yes |
