M11000 Tri-band (2.4 GHz
5 GHz / 6 GHz) Wi-Fi 7 (802.11be) White 4 Internal
Model M11000Part no. M11000(1-PACK)EAN 6971690793630
54 specifications
- Memory128 MB
- SpeedWi-Fi 7 (802.11be)
- TypeMesh router
- Weight852.5 g
- ColourWhite
- Built-in processorYes
Overview
- Memory
- 128 MB
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Mesh router
- Weight
- 852.5 g
- Colour
- White
- Built-in processor
- Yes
- Brand
- Cudy
- Category
- Mesh Wi-Fi System
- Model
- M11000
- Part numbers
- M11000(1-PACK), M11000(2-PACK), M11000(3-PACK)
- EAN / UPC
- 6971690793630, 6971690793616, 6971690793623
- Also known as
- Cudy M11000 Tri-band (2.4 GHz / 5 GHz / 6 GHz) Wi-Fi 7 (802.11be) White 4 Internal
Specifications
54 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh router |
| LED indicators | Status, System |
| Antenna type | Internal |
| Antennas quantity | 6 |
| Antenna direction type | Omni-directional |
| Maximum coverage | 260 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 4324 Mbit/s |
| WLAN data transfer rate (first band) | 2882 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| WLAN data transfer rate (third band) | 688 Mbit/s |
| Networking standards | IEEE 802.11be |
| Security algorithms | WPA, WPA2, WPA3 |
| Guest access | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.5 GHz |
| Internal memory | 128 MB |
| Flash memory | 512 MB |
| Bluetooth | No |
| Virtual assistant | No |
| Quality of Service (QoS) support | Yes |
| Parental control | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116 mm |
| Depth | 116 mm |
| Height | 202 mm |
| Weight | 852.5 g |

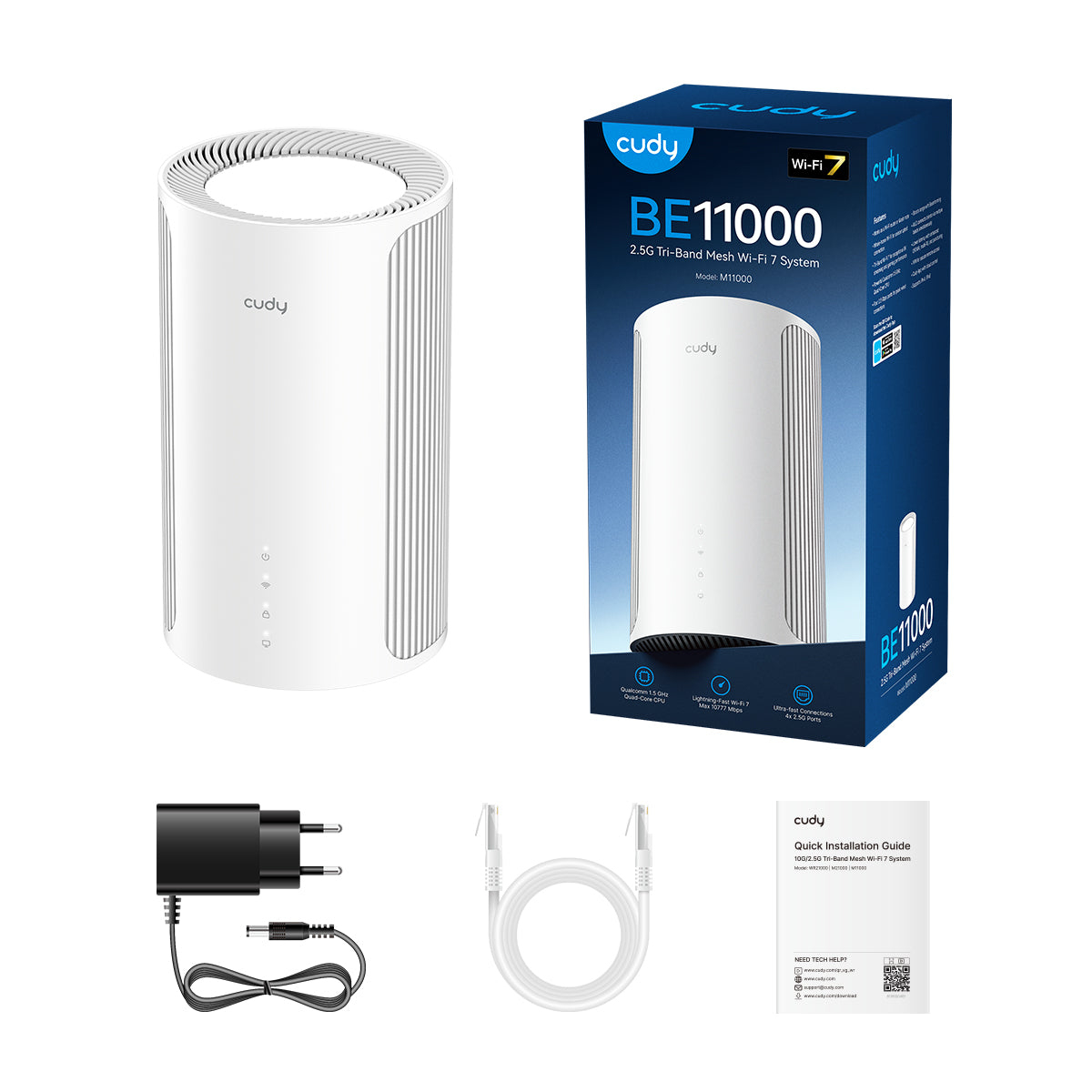

Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 313 mm |
| Package depth | 152 mm |
| Package height | 132 mm |
| Package weight | 852.5 g |
