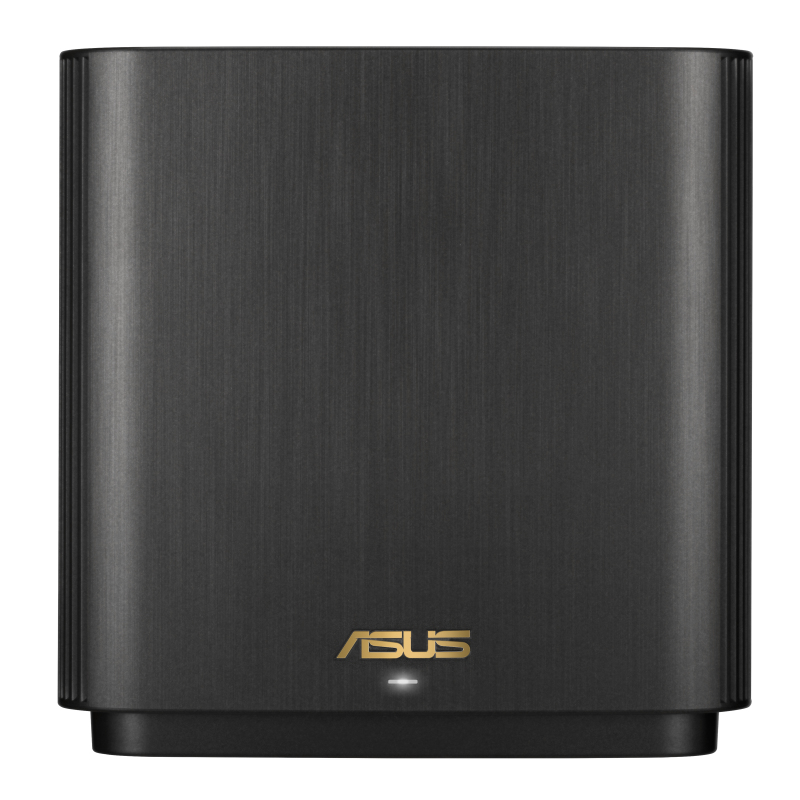

ZenWiFi XT9 (B-1-PK)
Model ZenWiFi XT9 (B-1-PK)Part no. ZENWIFI XT9 1PK BLACKEAN 195553826112
41 specifications
- Memory512 MB
- SpeedWi-Fi 6 (802.11ax)
- TypeMesh router
- Weight740 g
- ColourBlack
- Built-in processorYes
Overview
- Memory
- 512 MB
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mesh router
- Weight
- 740 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- Mesh Wi-Fi System
- Model
- ZenWiFi XT9 (B-1-PK)
- Part numbers
- ZENWIFI XT9 1PK BLACK, XT9 (B-1-PK)
- EAN / UPC
- 195553826112
- Also known as
- ASUS ZenWiFi XT9 (B-1-PK) Tri-band (2.4 GHz / 5 GHz / 5 GHz) Wi-Fi 6 (802.11ax) Black 4 Internal
Specifications
41 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Product type | Mesh router |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 6 |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 4804 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | SSID, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS |
| IGMP snooping | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN support | Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Fusion VPN Server WireGuard |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.7 GHz |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Quality of Service (QoS) support | Yes |
| Firewall security | Maximum Firewall keyword filter : Max 64 rules Maximum Firewall network service filter : Max 32 rules Maximum Firewall URL filter : Max 64 rules |
| BeamForming | Yes |
| Parental control | Yes |
| Works with Amazon Alexa | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols (IPv6) | yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 250 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 740 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Ethernet cable | Yes |
