ZenWiFi BT6
Model ZenWiFi BT6Part no. 90IG0940-MA1B2TEAN 197105537958
34 specifications
- Memory1000 MB
- SpeedWi-Fi 7 (802.11be)
- ColourWhite
- Ethernet LAN (RJ-45) ports3
- AC input voltage110 - 240 V
- Width159 mm
Overview
- Memory
- 1000 MB
- Speed
- Wi-Fi 7 (802.11be)
- Colour
- White
- Ethernet LAN (RJ-45) ports
- 3
- AC input voltage
- 110 - 240 V
- Width
- 159 mm
- Brand
- ASUS
- Category
- Mesh Wi-Fi System
- Model
- ZenWiFi BT6
- Part numbers
- 90IG0940-MA1B2T, 90IG0940-MA1B0T
- EAN / UPC
- 197105537958, 197105537897
- Also known as
- ASUS ZenWiFi BT6 Tri-band (2.4 GHz / 5 GHz / 6 GHz) Wi-Fi 7 (802.11be) White 3 Internal
Specifications
34 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Power |

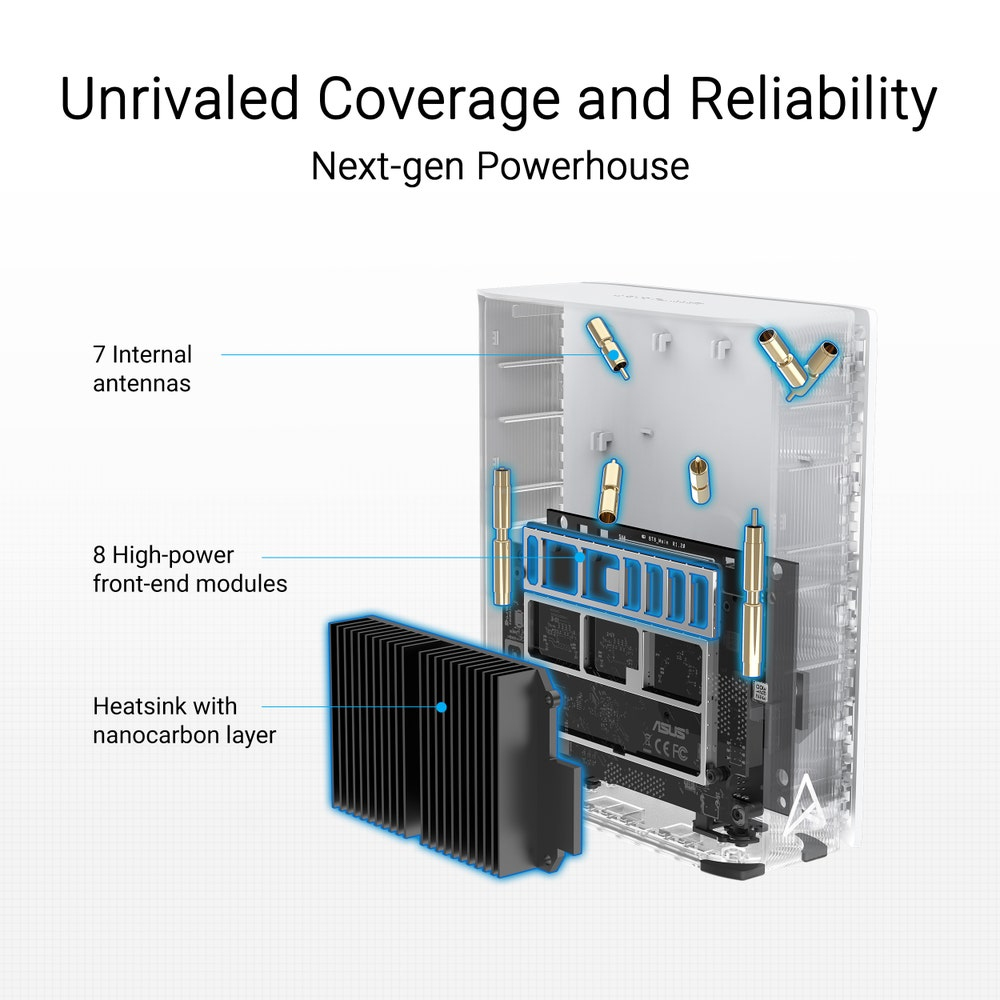

| Antenna type | Internal |
| Antennas quantity | 7 |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|

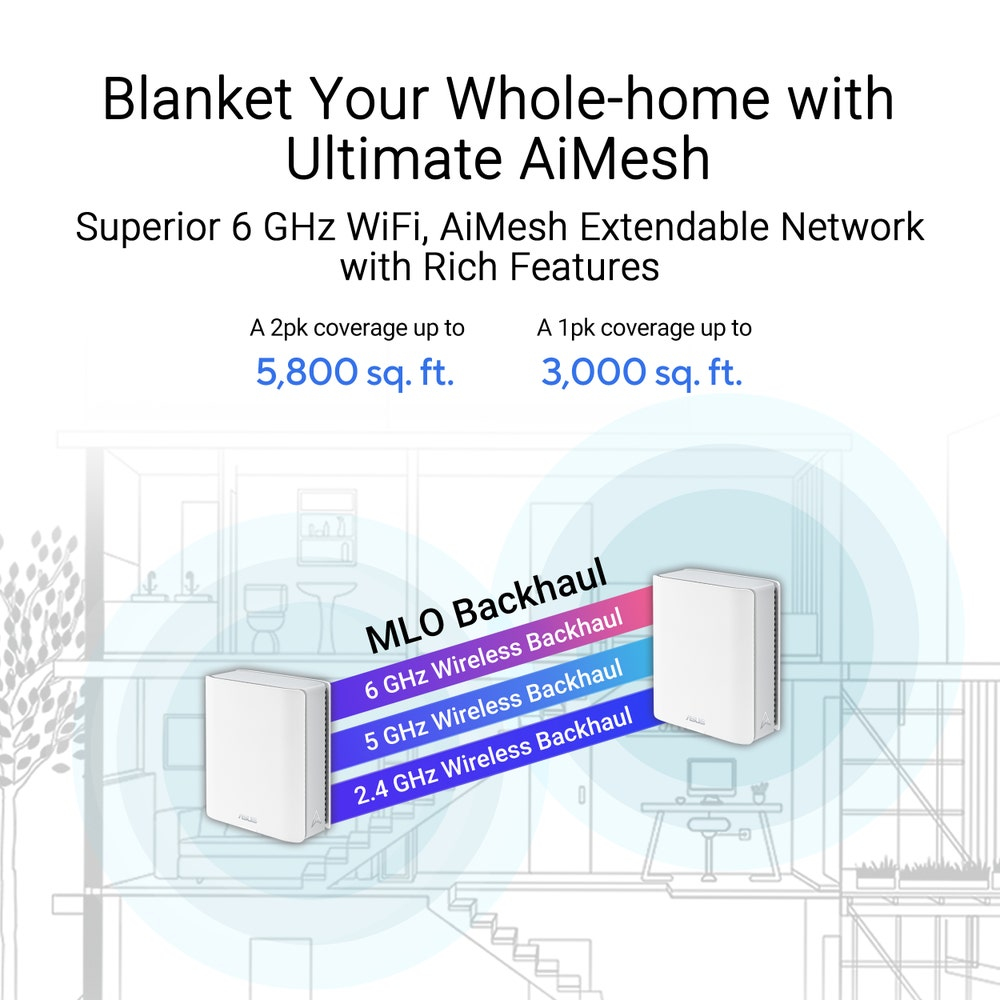

| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |

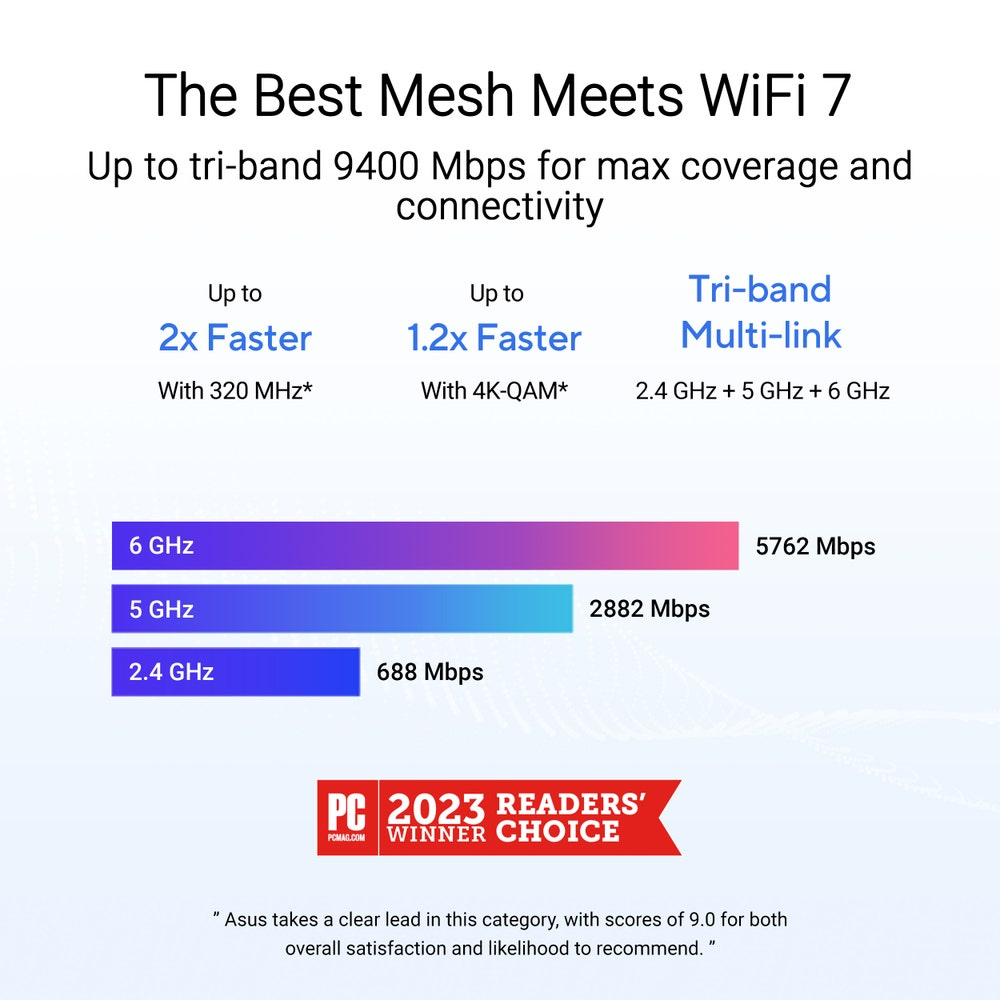

| WLAN data transfer rate (max) | 5762 Mbit/s |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| WLAN data transfer rate (third band) | 5762 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g |

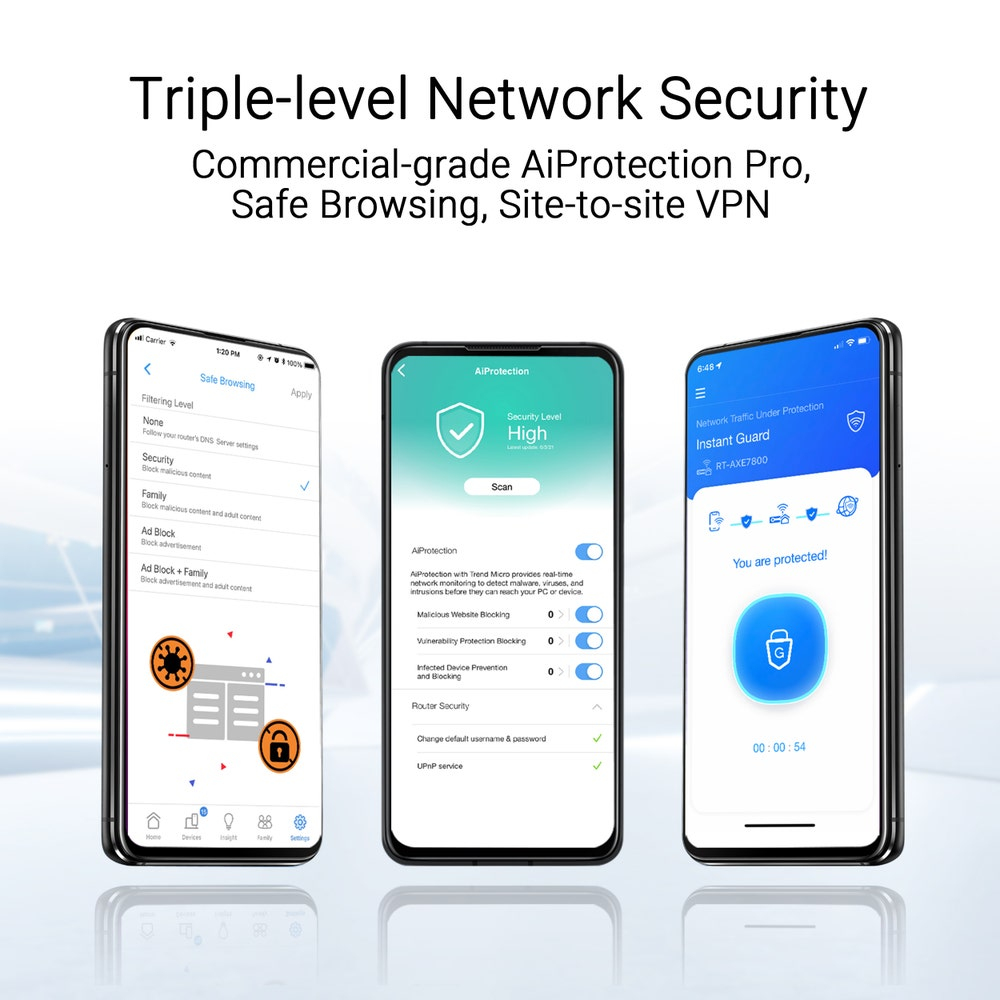

| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA3-Personal, WPS |
| Guest access | Yes |
| VPN support | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
Features
| Specification | Value |
|---|---|
| Internal memory | 1000 MB |
| Flash memory | 128 MB |
| Parental control | Yes |
| Parental control features | Time controls |

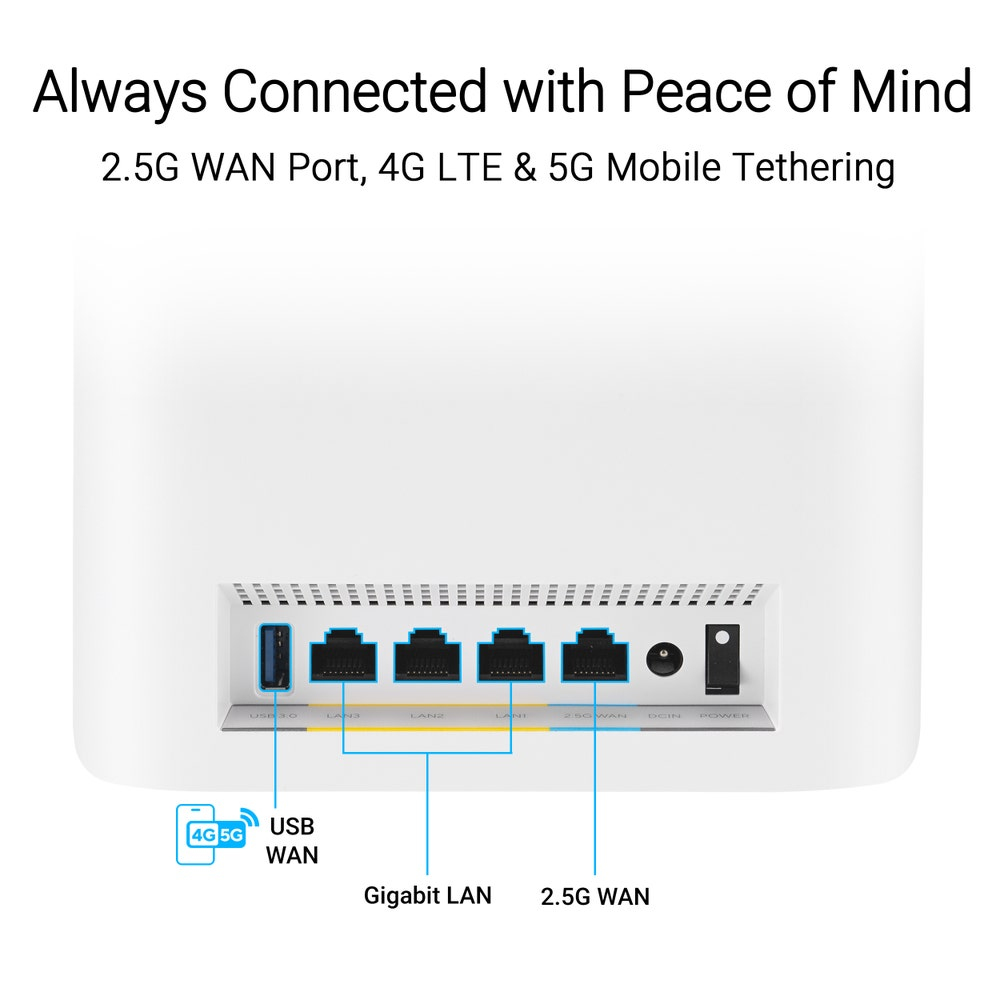

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 159 mm |
| Depth | 72 mm |
| Height | 186 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 2 pc(s) |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Quick installation guide | Yes |
