ZenWiFi BT10 (W-3-PK)
Model ZenWiFi BT10 (W-3-PK)Part no. 90IG08Y0-MO3C20EAN 4711387649381
51 specifications
- Memory2000 MB
- SpeedWi-Fi 7 (802.11be)
- TypeMesh system
- Weight855 g
- ColourWhite
- Built-in processorYes
Overview
- Memory
- 2000 MB
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Mesh system
- Weight
- 855 g
- Colour
- White
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- Mesh Wi-Fi System
- Model
- ZenWiFi BT10 (W-3-PK)
- Part number
- 90IG08Y0-MO3C20
- EAN / UPC
- 4711387649381
- Also known as
- ASUS ZenWiFi BT10 (W-3-PK) Tri-band (2.4 GHz / 5 GHz / 6 GHz) Wi-Fi 7 (802.11be) White Internal
Specifications
51 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Product type | Mesh system |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 8 |
| Maximum coverage | 278.709 m² |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 11529 Mbit/s |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 5764 Mbit/s |
| WLAN data transfer rate (third band) | 11529 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA3-Personal |
| IGMP snooping | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Apps supported | ASUS Router |
| VPN support | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 2 GHz |
| Internal memory | 2000 MB |
| Flash memory | 256 MB |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | Firewall |
| DHCP server | Yes |
| Parental control | Yes |
| MU-MIMO technology | Yes |

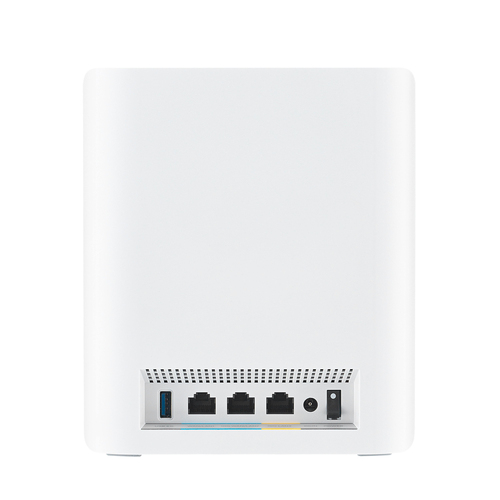

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 159 mm |
| Depth | 72 mm |
| Height | 186 mm |
| Weight | 855 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 3 pc(s) |
| AC adapter included | Yes |
| Ethernet cable | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 325 mm |
| Package depth | 298 mm |
| Package height | 169 mm |
| Package weight | 3.21 kg |
