ZenWiFi BD5
Model ZenWiFi BD5Part no. 90IG0960-MA1CAVEAN 197105627819
31 specifications
- Memory512 MB
- SpeedWi-Fi 7 (802.11be)
- ColourWhite
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
- Built-in processorYes
- Ethernet LAN (RJ-45) ports2
Overview
- Memory
- 512 MB
- Speed
- Wi-Fi 7 (802.11be)
- Colour
- White
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Built-in processor
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- ASUS
- Category
- Mesh Wi-Fi System
- Model
- ZenWiFi BD5
- Part numbers
- 90IG0960-MA1CAV, 90IG0960-MA1CCV, 90IG0960-MA1CEV
- EAN / UPC
- 197105627819, 197105627796, 197105627802
- Also known as
- ASUS ZenWiFi BD5 Dual-band (2.4 GHz / 5 GHz) Wi-Fi 7 (802.11be) White 2 Internal
Specifications
31 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Power |

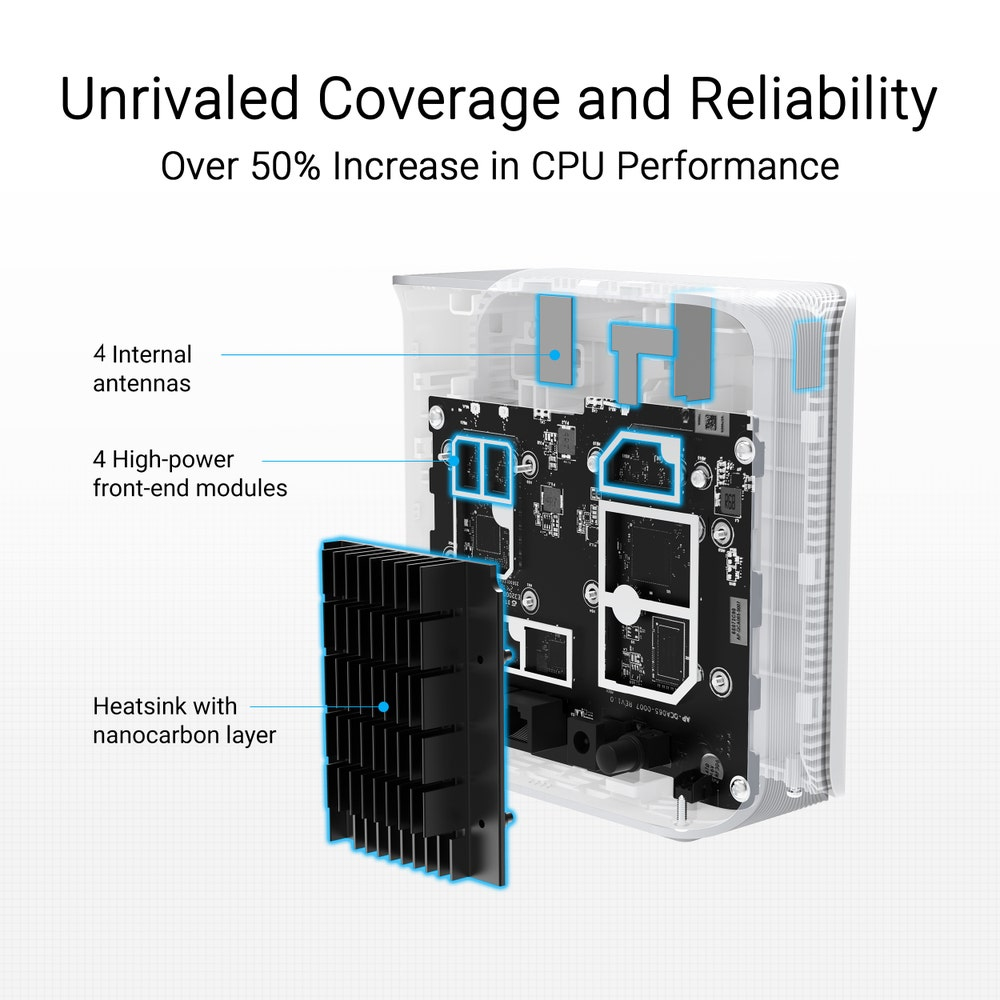

| Antenna type | Internal |
| Antennas quantity | 4 |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |

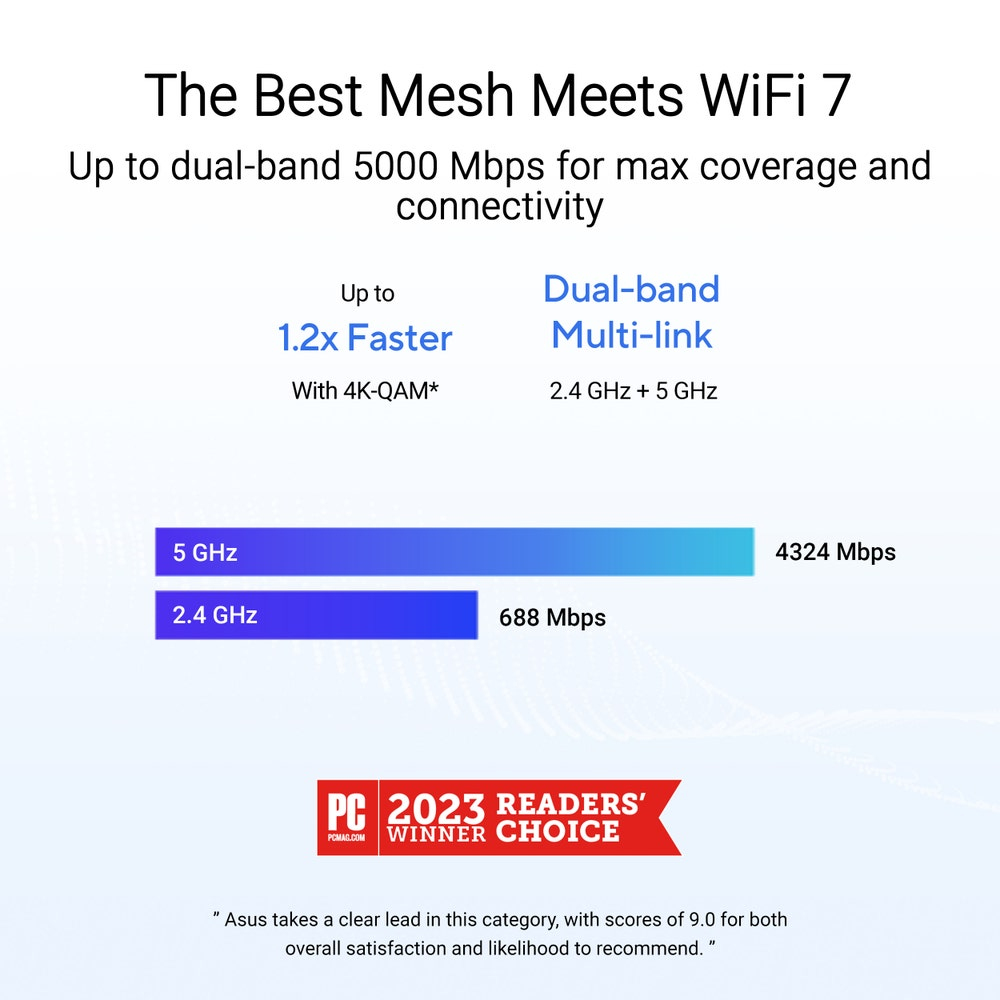

| WLAN data transfer rate (max) | 4323 Mbit/s |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 4323 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g |

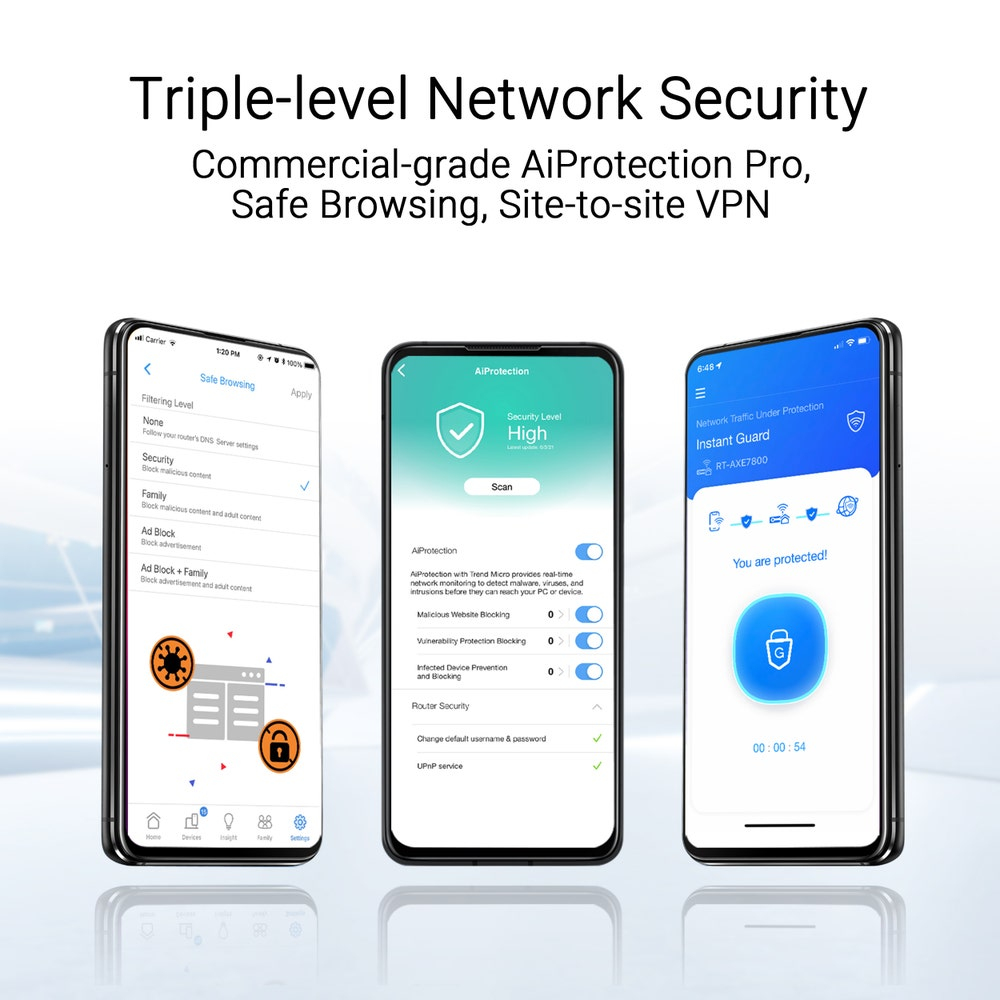

| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA3-Personal, WPS |
| VPN support | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.5 GHz |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Parental control | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

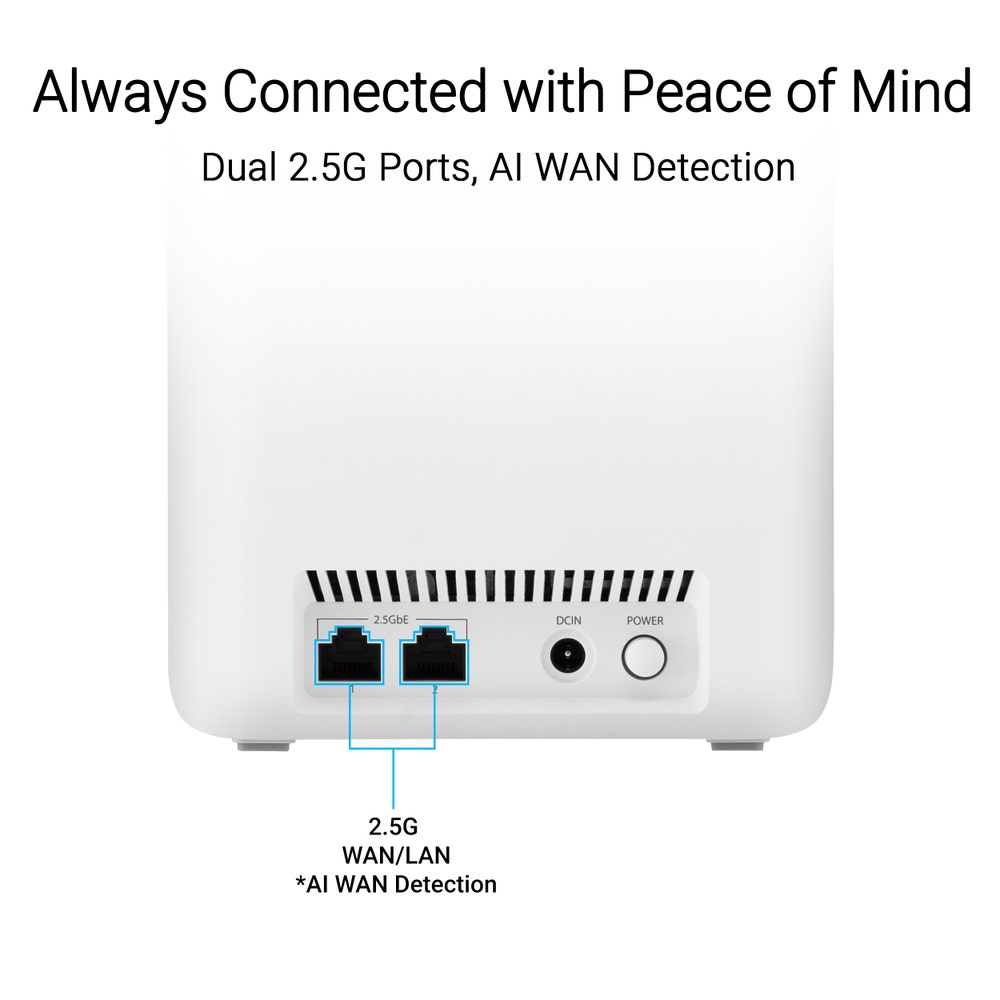

| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet WAN | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC adapter input current | 2 A |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 70 mm |
| Height | 140 mm |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Ethernet cable | Yes |

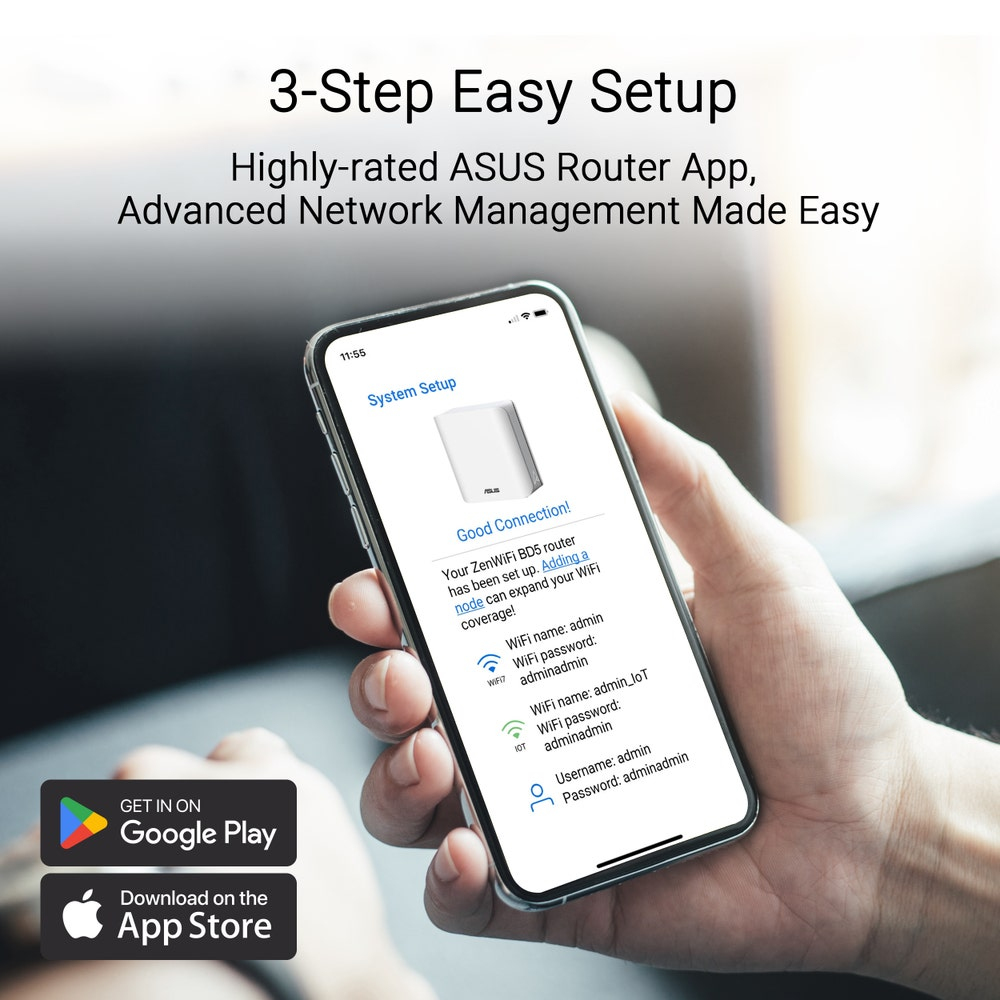

| Quick installation guide | Yes |
