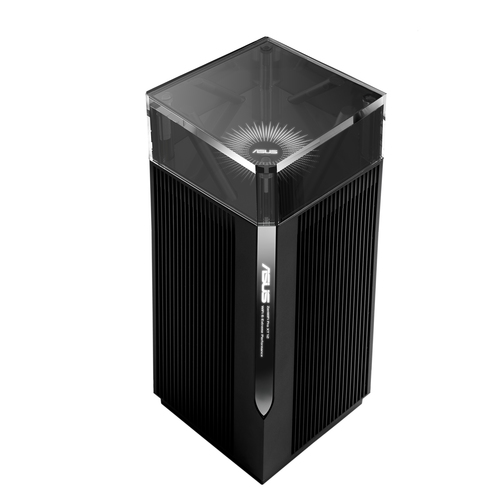

XT12 Tri-band (2.4 GHz
5 GHz / 5 GHz) Wi-Fi 6E (802.11ax) Black 3 Internal
Model XT12Part no. XT12 2 PACK
30 specifications
- Memory1024 MB
- SpeedWi-Fi 6E (802.11ax)
- Weight1.5 kg
- ColourBlack
- Ethernet LAN (RJ-45) ports3
- AC input voltage100 - 240 V
Overview
- Memory
- 1024 MB
- Speed
- Wi-Fi 6E (802.11ax)
- Weight
- 1.5 kg
- Colour
- Black
- Ethernet LAN (RJ-45) ports
- 3
- AC input voltage
- 100 - 240 V
- Brand
- ASUS
- Category
- Mesh Wi-Fi System
- Model
- XT12
- Part numbers
- XT12 2 PACK, XT12 1 PACK
- Also known as
- ASUS XT12 Tri-band (2.4 GHz / 5 GHz / 5 GHz) Wi-Fi 6E (802.11ax) Black 3 Internal
Specifications
30 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 10 |
| Reset button | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1148 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| WLAN data transfer rate (third band) | 4804 Mbit/s |
| Security algorithms | WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS |
| IGMP snooping | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
Features
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Quality of Service (QoS) support | Yes |
| MU-MIMO technology | Yes |

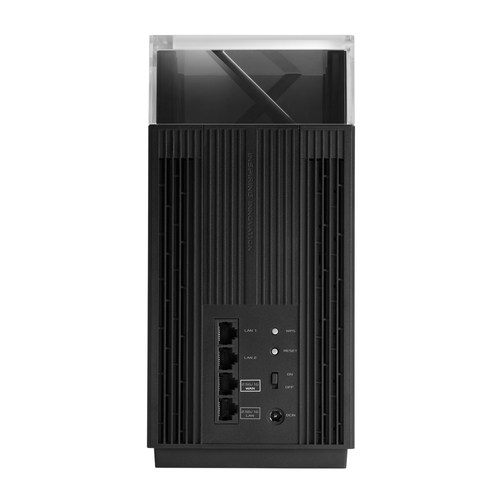

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 241 mm |
| Weight | 1.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 2 pc(s) |
| AC adapter included | Yes |
| Ethernet cable | Yes |
