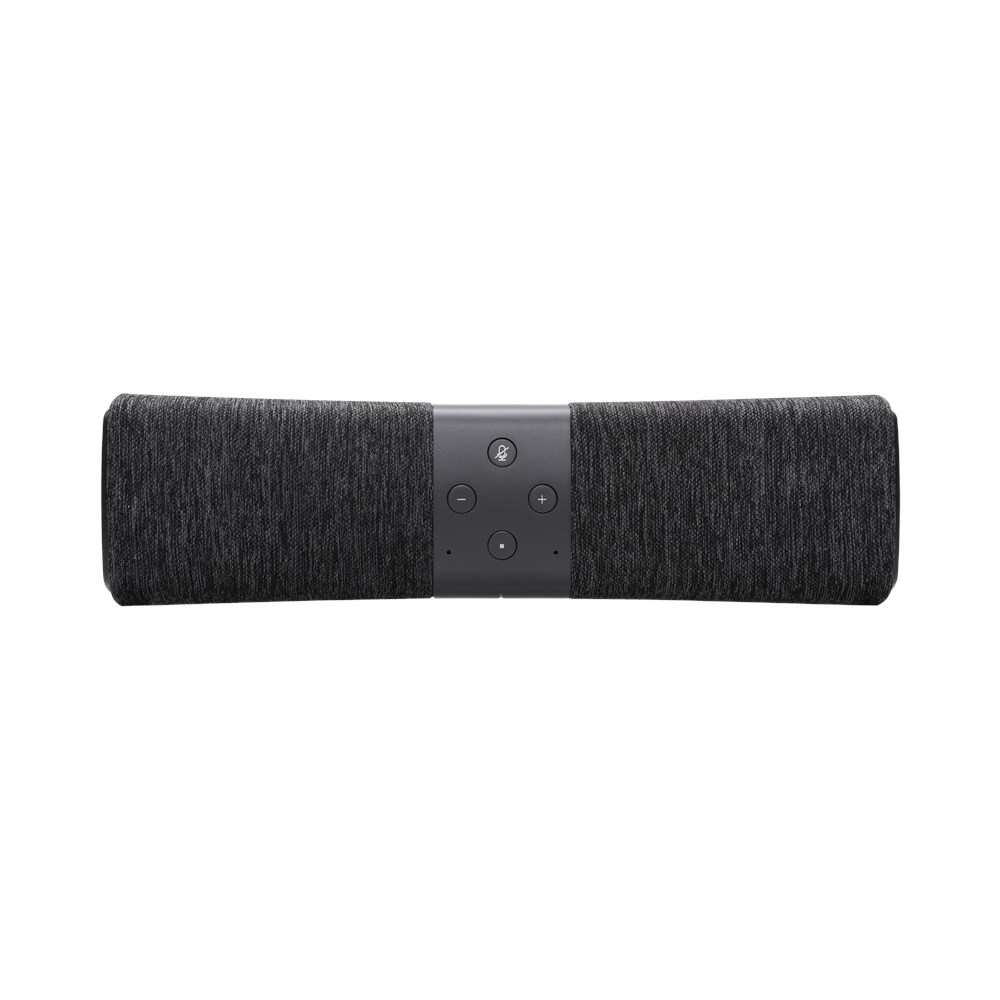

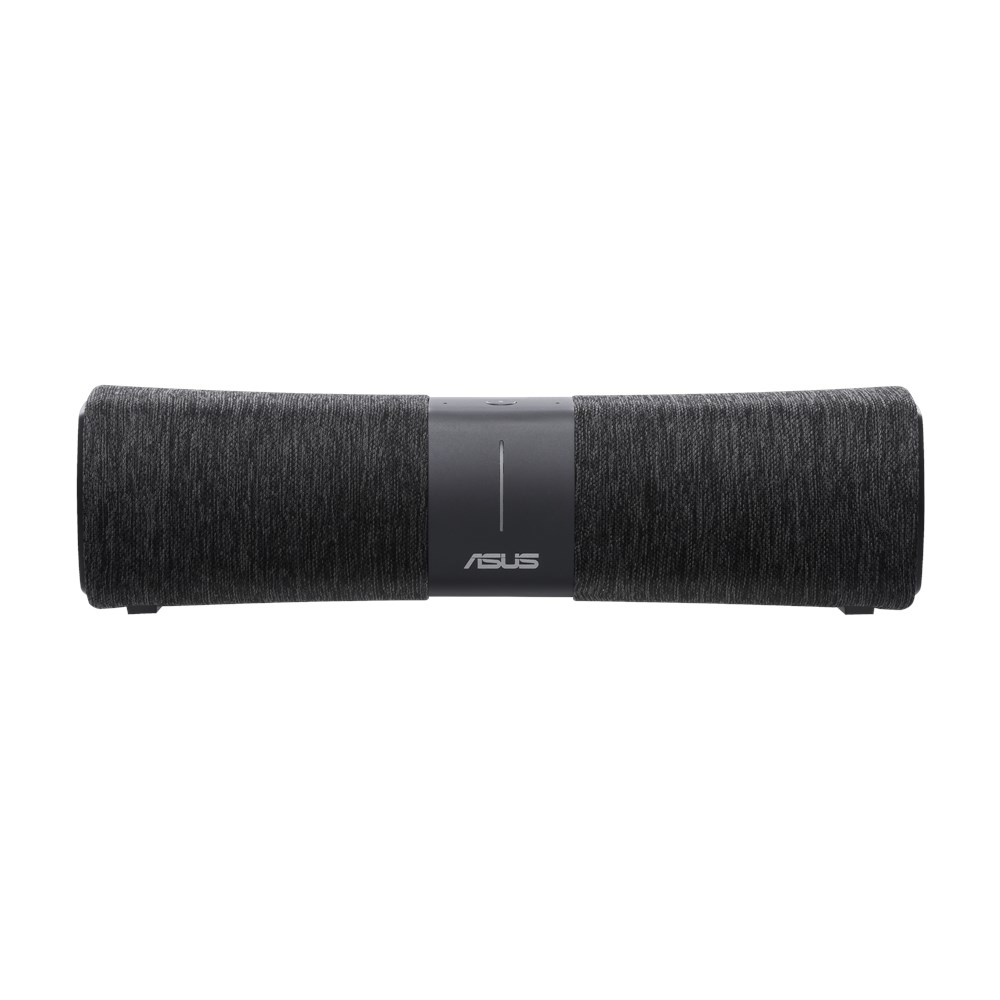

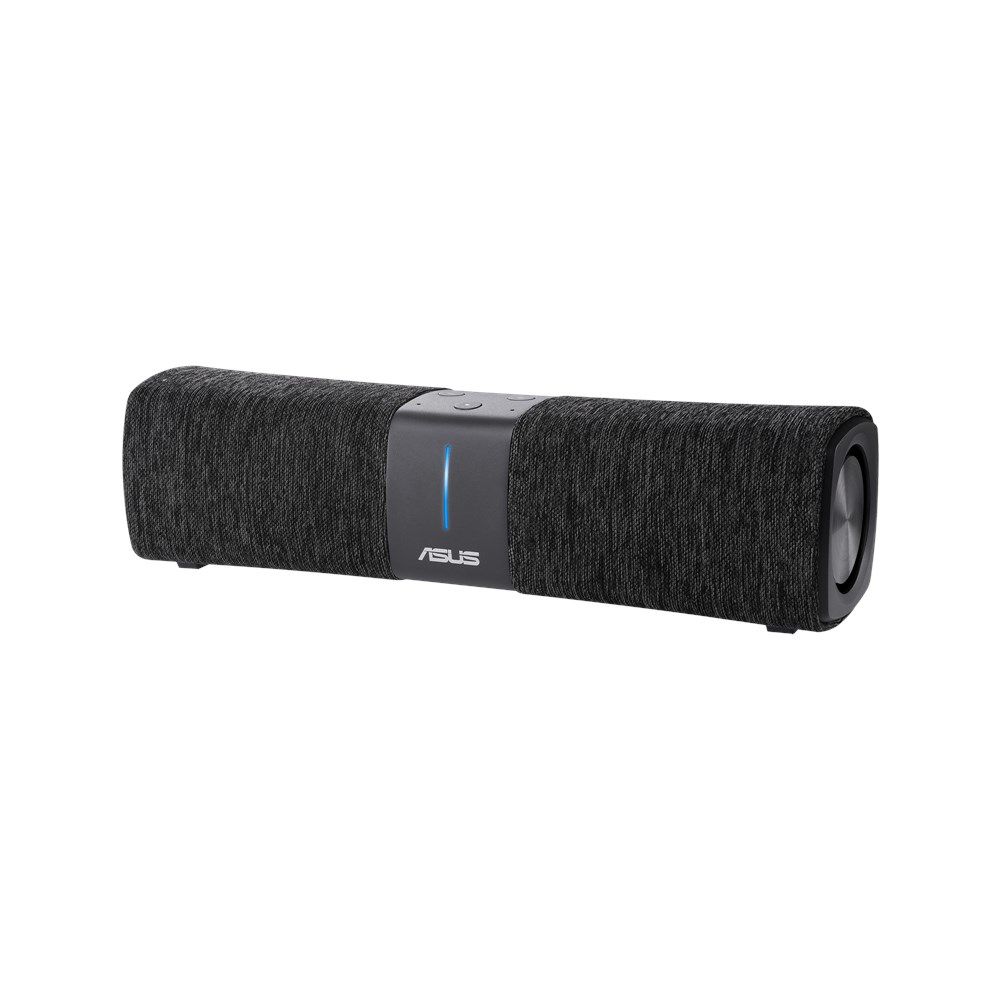

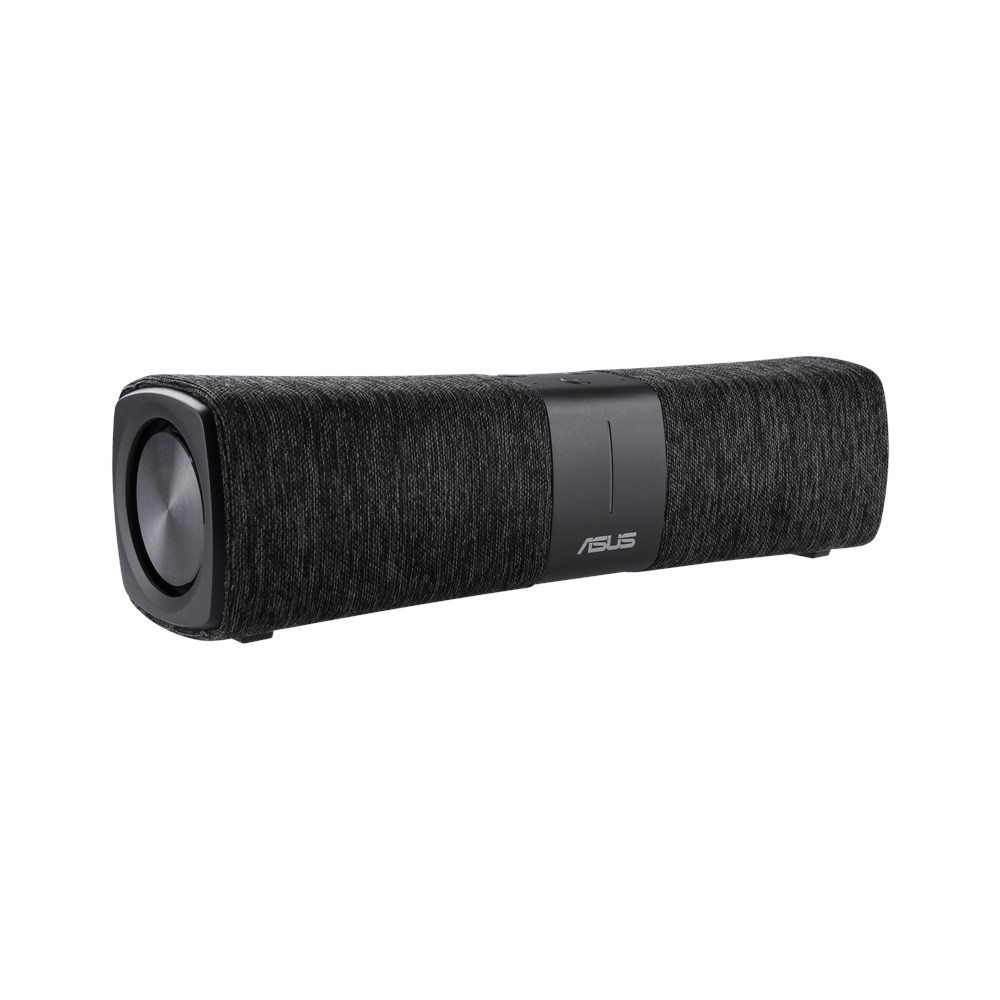

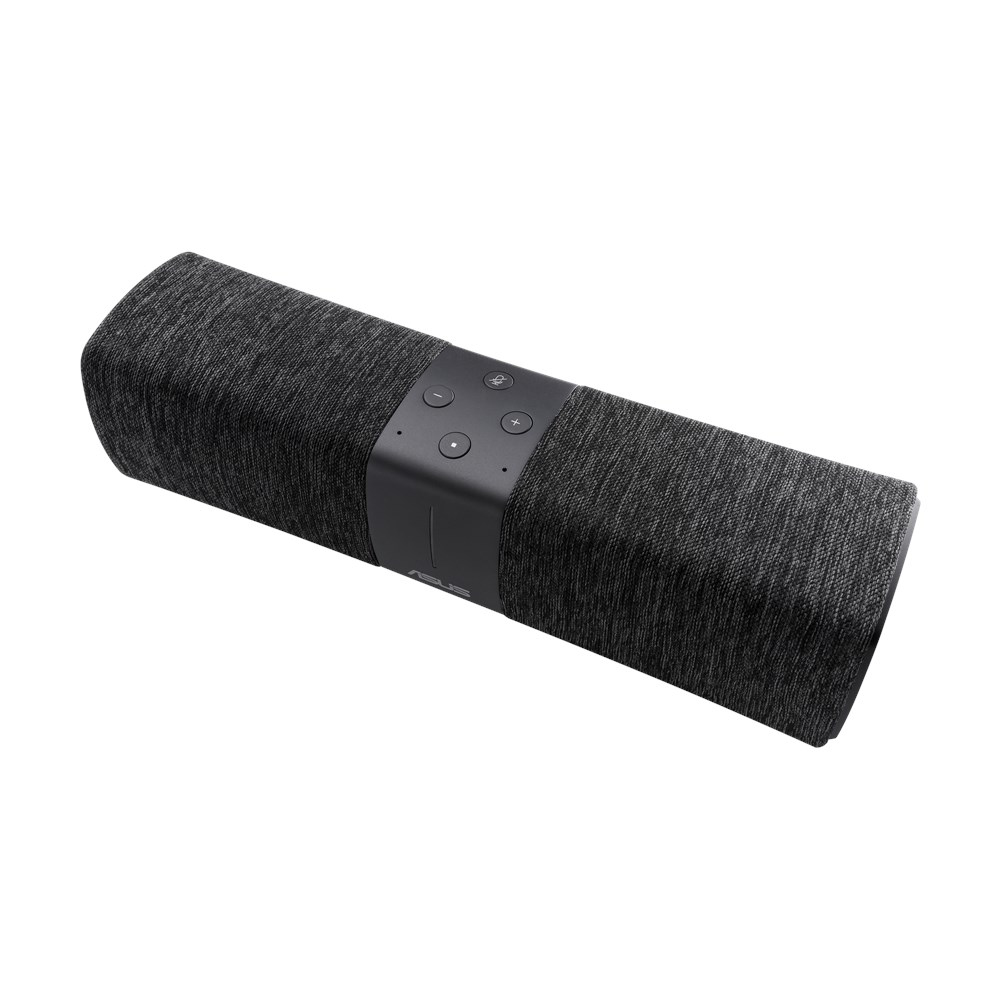

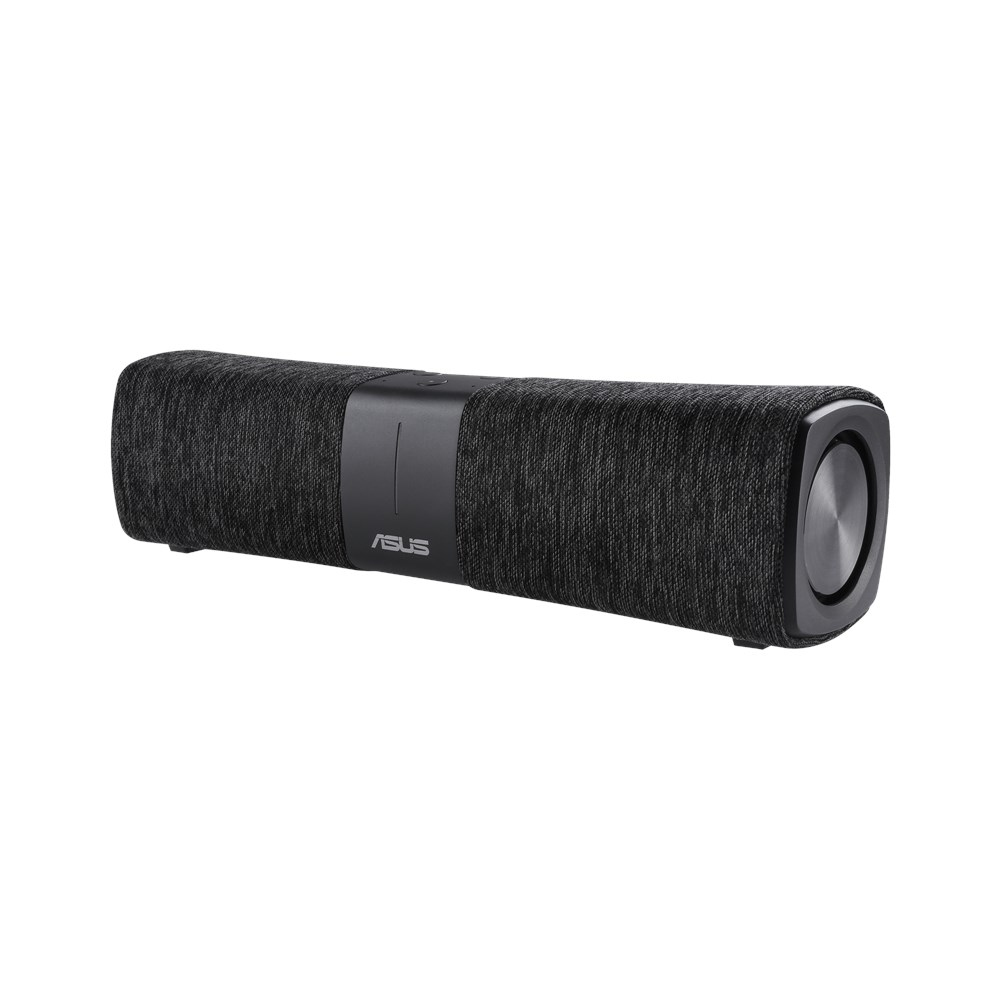

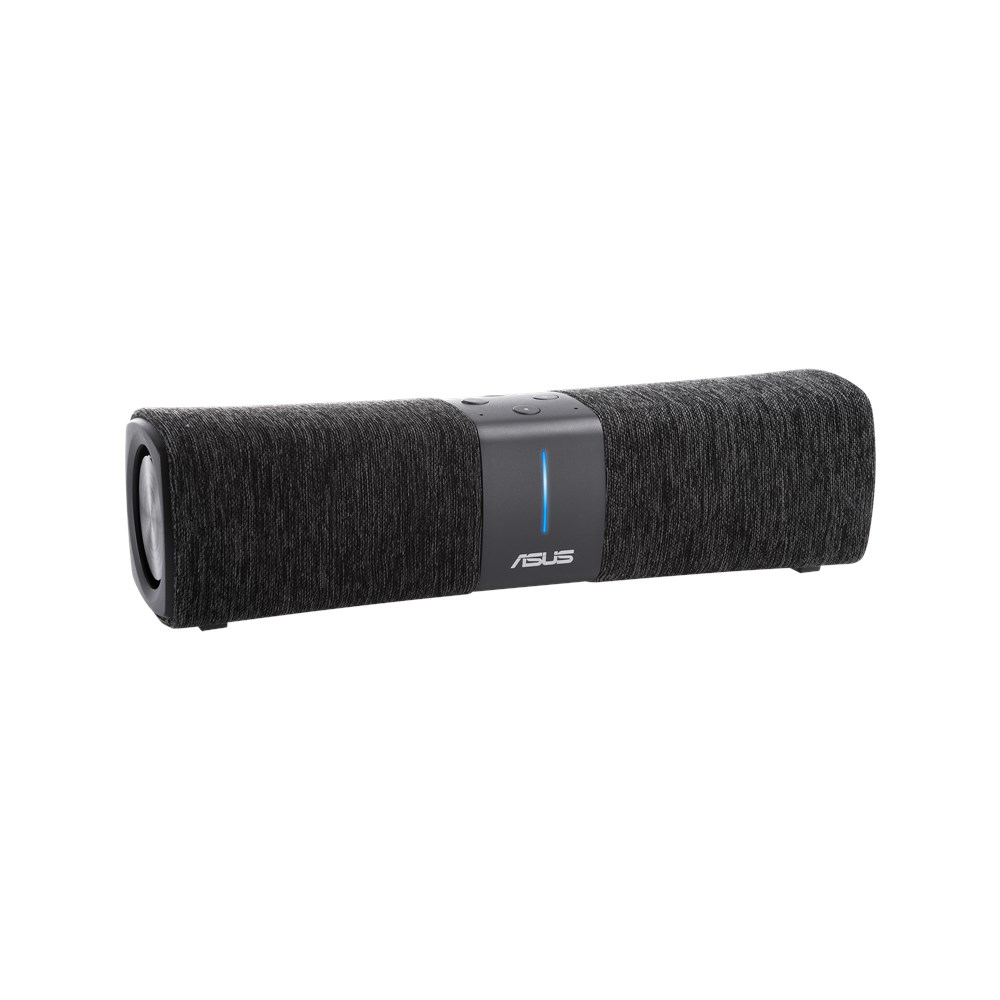

Lyra Voice AC2200
Model Lyra Voice AC2200Part no. 90IG04N0-MM3G20EAN 192876099728
27 specifications
- Memory512 MB
- SpeedWi-Fi 5 (802.11ac)
- TypeMesh router
- Weight975 g
- ColourBlack
- Ethernet LAN (RJ-45) ports2
Overview
- Memory
- 512 MB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mesh router
- Weight
- 975 g
- Colour
- Black
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- ASUS
- Category
- Mesh Wi-Fi System
- Model
- Lyra Voice AC2200
- Part number
- 90IG04N0-MM3G20
- EAN / UPC
- 192876099728, 192876039977, 192876040096, 4718017040099 +1 more
- Also known as
- ASUS Lyra Voice AC2200 Tri-band (2.4 GHz / 5 GHz / 5 GHz) Wi-Fi 5 (802.11ac) Black 2
Specifications
27 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Product type | Mesh router |
| Antennas quantity | 7 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| WLAN data transfer rate (first band) | 400 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| WLAN data transfer rate (third band) | 867 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n |
| Security algorithms | WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
Features
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Mac operating systems supported | Mac OS X 10.1 Puma, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |

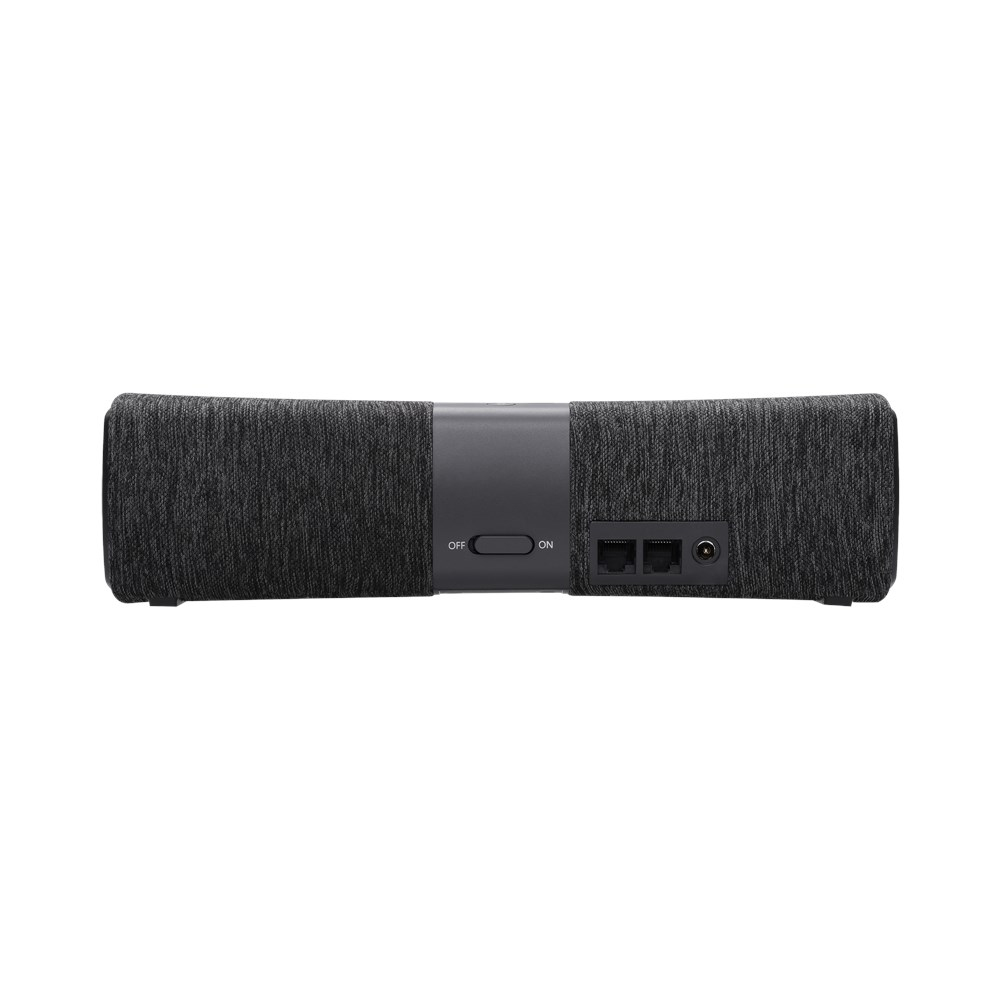

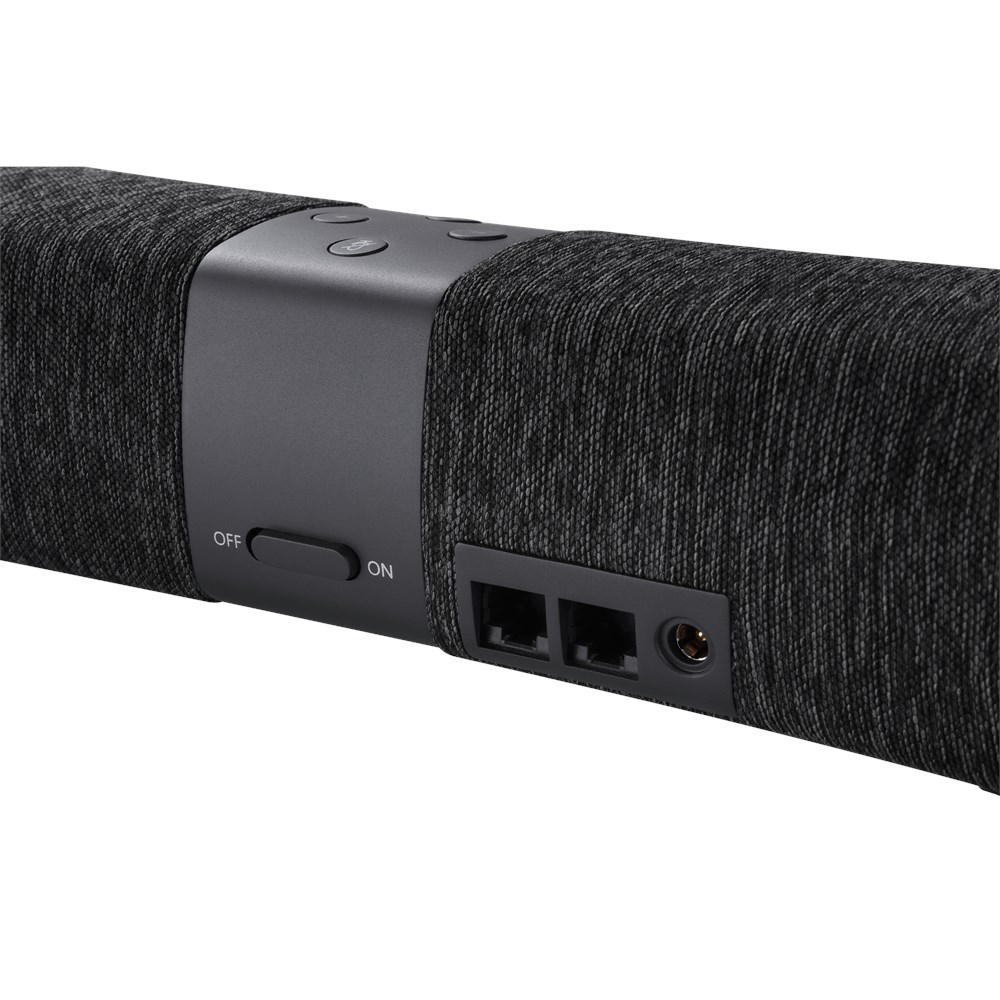

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 75 mm |
| Height | 75 mm |
| Weight | 975 g |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
