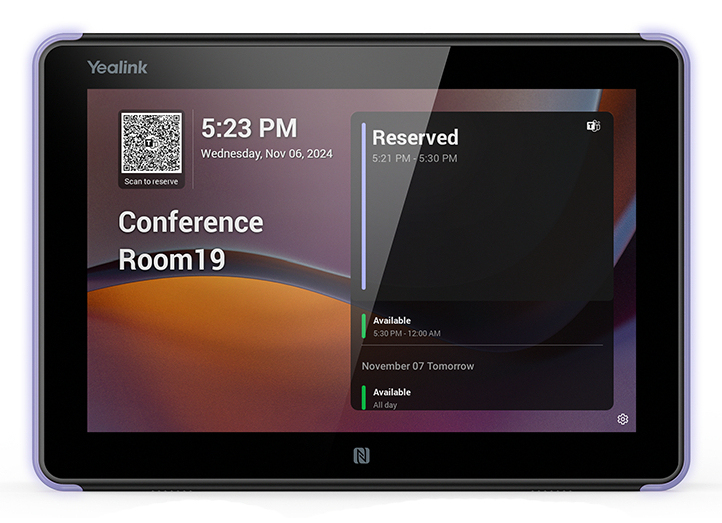

RoomPanel E2
Model RoomPanel E2Part no. 130317
46 specifications
- Display20.3 cm (8")
- Resolution1280 x 800 pixels
- OSAndroid 13.0
- Weight530 g
- Housing colourBlack
- Built-in microphoneYes
Overview
- Display
- 20.3 cm (8")
- Resolution
- 1280 x 800 pixels
- OS
- Android 13.0
- Weight
- 530 g
- Housing colour
- Black
- Built-in microphone
- Yes
- Brand
- Yealink
- Category
- Meeting Room Display
- Model
- RoomPanel E2
- Part number
- 130317
- Also known as
- Yealink RoomPanel E2 20.3 cm (8") 1280 x 800 pixels LCD 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) Black Bluetooth
Specifications
46 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Display technology | LCD |
| Aspect ratio | 16:10 |
| Viewing angle | 80° |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
| Fingerprint resistant | Yes |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| Ambient light sensor | Yes |
| Proximity sensor | Yes |
| Country of origin | China |
Performance
| Specification | Value |
|---|---|
| Operating system installed | Android 13.0 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Number of microphones | 2 |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Security algorithms | EAP-MD5, EAP-TLS, EAP-PEAP, EAP-TTLS, MSCHAPv2 |
| Networking standards | IEEE 802.3af, IEEE 802.1x |
| Near Field Communication (NFC) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB port type | USB Type-C |
| RJ-45 ports quantity | 1 |
| RFID reader | Yes |
| RFID frequency | 13.56 MHz |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power over Ethernet (PoE) type supported | Active PoE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Height | 146 mm |
| Weight | 530 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 725 mm |
| Package depth | 410 mm |
| Package height | 300 mm |
| Package weight | 1.59 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
