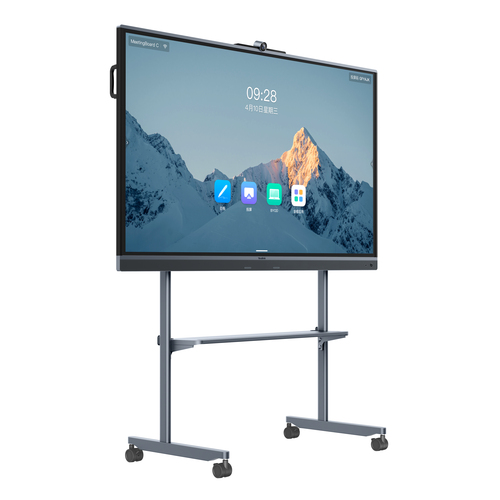

MB75C-EDLA

MB75C-EDLA

Model MB75C-EDLAPart no. 1303288EAN 6938818323889

70 specifications

Display190.5 cm (75")
Resolution3840 x 2160 pixels
Memory8 GB
Storage64 MB
Weight52.2 kg
Housing colourBlack

See all specifications

Overview

Display: 190.5 cm (75")
Resolution: 3840 x 2160 pixels
Memory: 8 GB
Storage: 64 MB
Weight: 52.2 kg
Housing colour: Black

Brand: Yealink
Category: Meeting Room Display
Model: MB75C-EDLA
Part number: 1303288
EAN / UPC: 6938818323889
Also known as: Yealink MB75C-EDLA

Specifications

70 specifications in 12 groups

Display

Specification	Value
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Aspect ratio	16:9
Maximum refresh rate	60 Hz
Viewing angle	178°
Display brightness	400 cd/m²
Contrast ratio (typical)	1200:1
Touchscreen	Yes
Number of simultaneous touchpoints	20
Anti-glare surface	Yes

Design

Specification	Value
Housing colour	Black

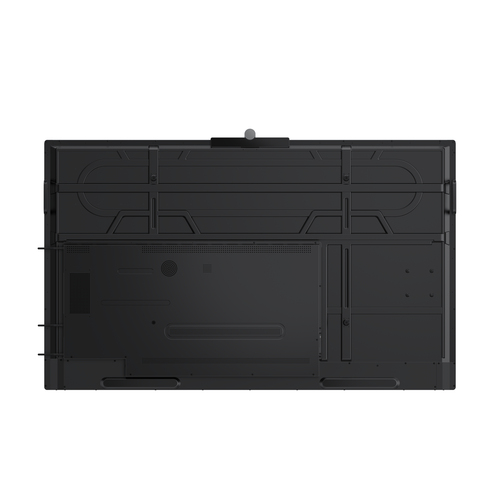

VESA mounting	Yes
Panel mounting interface	600 x 400 mm

Performance

Specification	Value
Built-in processor	Yes
Processor cores	8
RAM capacity	8 GB
Storage capacity	64 MB
Windows operating systems supported	Yes

Audio

Specification	Value
Built-in microphone	Yes
Built-in speaker(s)	Yes
Speaker power	30 W
Number of microphones	16

Camera

Specification	Value
Built-in camera	Yes
Maximum resolution	3840 x 2160 pixels
Total megapixels	50 MP
F-number (relative aperture)	1.56
Field of view (FOV) angle	98.2°
PTZ control	Yes
Camera shutter type	Electronic
Camera privacy shutter	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
MIMO	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Bluetooth	Yes
Bluetooth version	5.1
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Security algorithms	SNMP

Ports & interfaces

Specification	Value
USB port	Yes
USB port type	USB Type-A
Audio RCA inputs	1
Audio RCA outputs	1
HDMI input ports quantity	1
HDMI output ports quantity	1
RJ-45 ports quantity	2
3.5 mm connector	Yes

Power

Specification	Value
Power source type	AC
Input voltage	100 - 240 V
Power consumption (average)	141 W
Power consumption (max)	243 W
USB output current	0.5 A
USB output voltage	5 V

Weight & dimensions

Specification	Value
Width	1705 mm
Depth	105 mm
Height	1081 mm
Weight	52.2 kg

Packaging data

Specification	Value
Package width	1900 mm
Package depth	225 mm
Package height	1160 mm
Package weight	65 kg
Package type	Box

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick start guide	Yes
Number of stylus pens	4
Packaging content	- 1 x 3m AC power cable - 1 x 3m CAT5E network cable - 4 x Stylus pens - 3 x Cable ties - 1 x Quick Start Guide
Stylus pen	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
