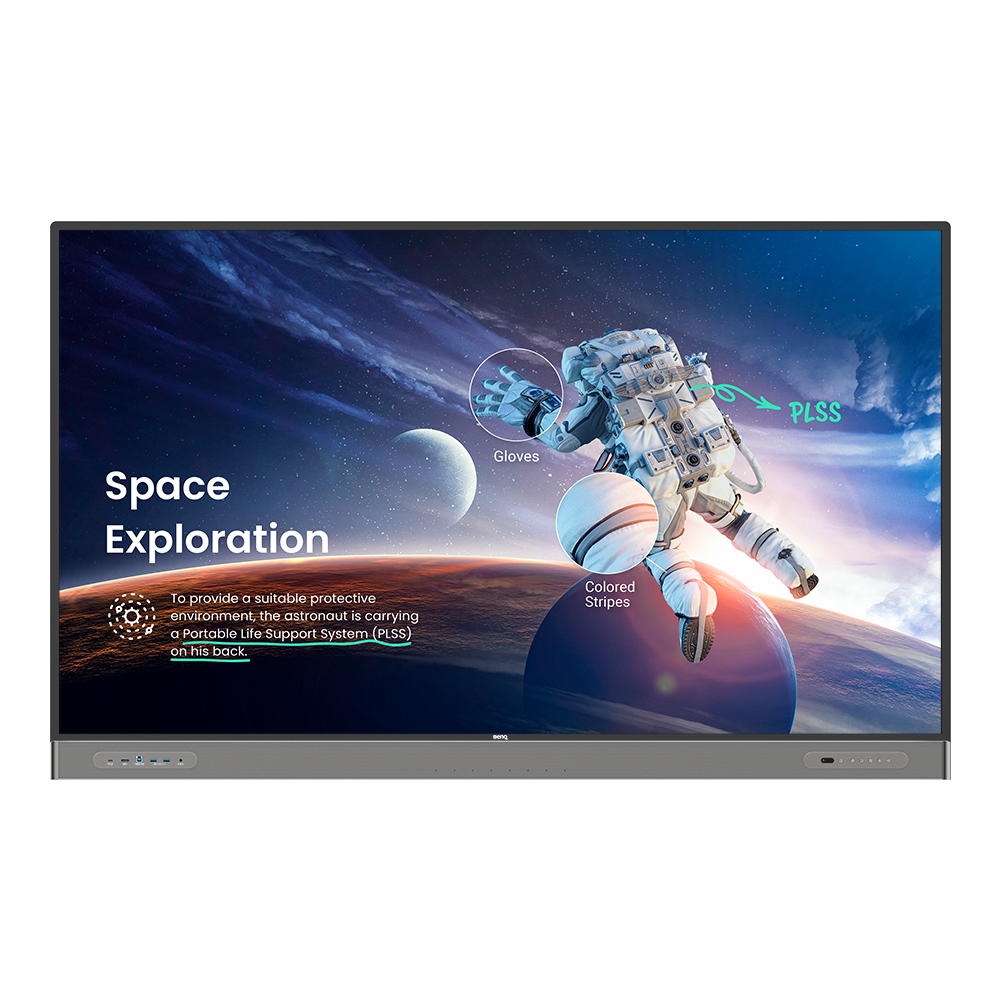

RM7503A 190.5 cm (75") IPS Black
Model RM7503APart no. 9H.F8JTK.DA1
47 specifications
- Display190.5 cm (75")
- Memory8 GB
- Storage3200 MB
- OSAndroid 11
- Weight53.5 kg
- Housing colourBlack
Overview
- Display
- 190.5 cm (75")
- Memory
- 8 GB
- Storage
- 3200 MB
- OS
- Android 11
- Weight
- 53.5 kg
- Housing colour
- Black
- Brand
- BenQ
- Category
- Meeting Room Display
- Model
- RM7503A
- Part number
- 9H.F8JTK.DA1
- Also known as
- BenQ RM7503A 190.5 cm (75") IPS Black
Specifications
47 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 190.5 cm (75") |
| Display technology | IPS |
| LED backlight | Yes |
| Aspect ratio | 16:9 |
| Response time | 8 ms |
| Display brightness | 400 cd/m² |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
| VESA mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 4 |
| RAM capacity | 8 GB |
| Storage capacity | 3200 MB |
| Operating system installed | Android 11 |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Speaker power | 16 W |
| Number of microphones | 8 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Wi-Fi standards | Not supported |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

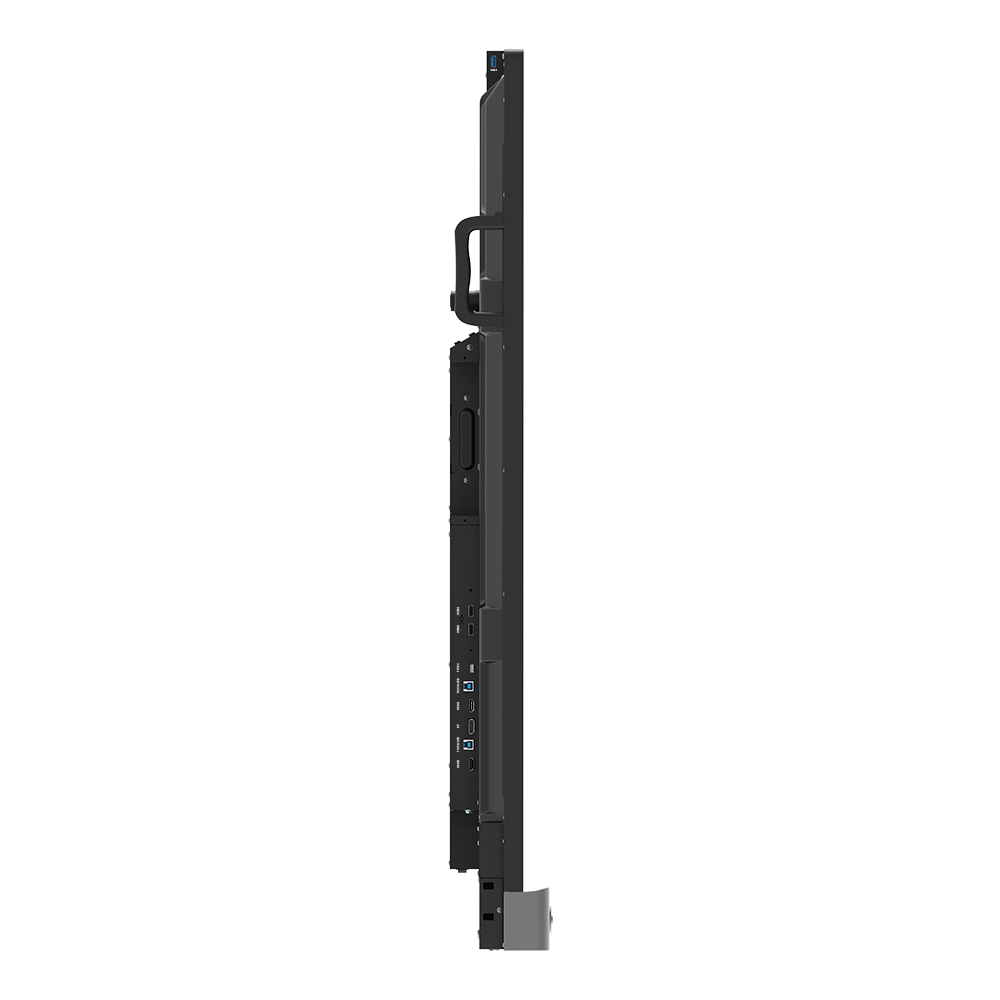

Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB port type | USB Type-A |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| RJ-45 ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 2 |
| 3.5 mm connector | Yes |
| HDMI ports quantity | 4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 480 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1717.1 mm |
| Depth | 1065.3 mm |
| Height | 121.8 mm |
| Weight | 53.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 68 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of stylus pens | 2 |
| Stylus pen | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
