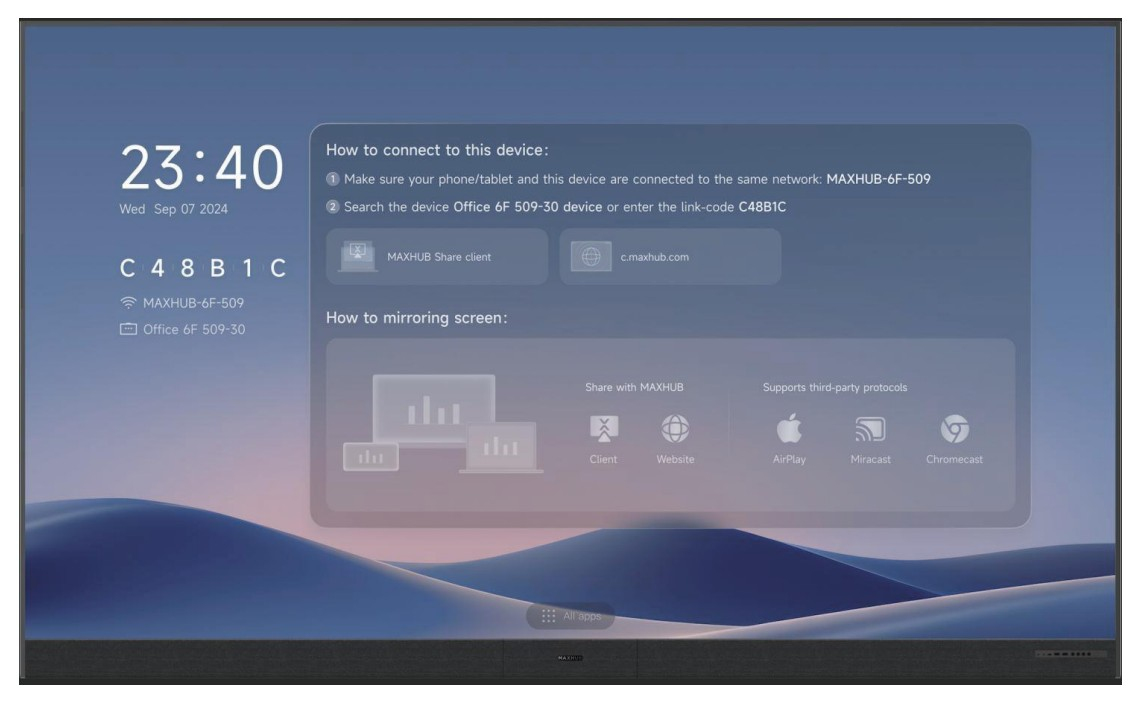

LX135V07C DvLED
Model LX135V07C DvLEDPart no. LX135V07CEAN 6927433607603
41 specifications
- Display3.43 m (135")
- Resolution1920 x 1080 pixels
- Memory8 GB
- Storage64000 MB
- OSAndroid 13.0
- Weight110 kg
Overview
- Display
- 3.43 m (135")
- Resolution
- 1920 x 1080 pixels
- Memory
- 8 GB
- Storage
- 64000 MB
- OS
- Android 13.0
- Weight
- 110 kg
- Brand
- MAXHUB
- Category
- Meeting Room Display
- Model
- LX135V07C DvLED
- Part number
- LX135V07C
- EAN / UPC
- 6927433607603
- Also known as
- MAXHUB Raptor Series V3 LX135V07C All-In-One DvLED
Specifications
41 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 3.43 m (135") |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| Pixel pitch | 1.5 x 1.5 mm |
| Aspect ratio | 16:9 |
| Maximum refresh rate | 3840 Hz |
| Display brightness | 600 cd/m² |
| Contrast ratio (typical) | 15000:1 |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 8 |
| RAM capacity | 8 GB |
| Storage capacity | 64000 MB |
| Operating system installed | Android 13.0 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| RJ-45 ports quantity | 4 |
| USB Type-C ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| 3.5 mm connector | Yes |
| HDMI ports quantity | 5 |
| HDMI version | 1.4/2.0 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 100 - 240 V |
| Power consumption (average) | 418 W |
| Power consumption (max) | 1252 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 3030.8 mm |
| Height | 1812.9 mm |
| Weight | 110 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | -10 - 40 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
