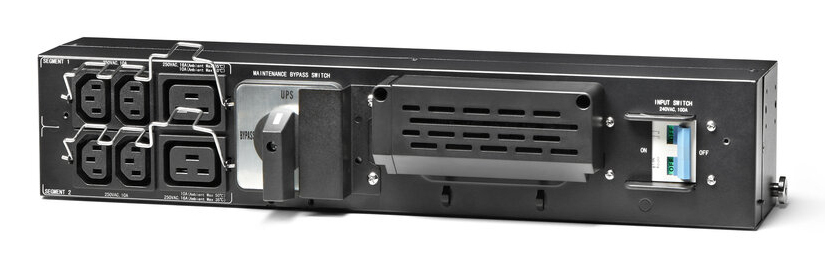

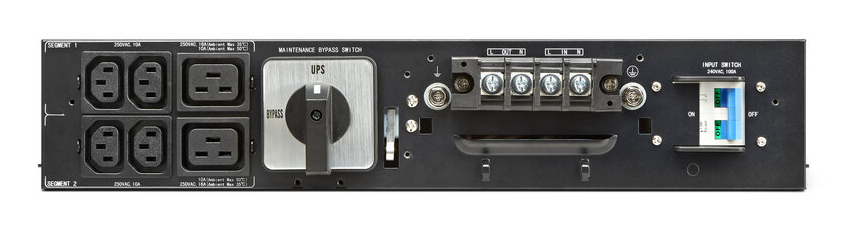

BM-R 63 A+
Model BM-R 63 A+Part no. 6B4OP000002EAN 8436584873709
21 specifications
- Weight2.4 kg
- Housing colourBlack
- UPS inputTerminals
- Maximum current63 A
- Operating temperature (T-T)0 - 45 °C
- Width440 mm
Overview
- Weight
- 2.4 kg
- Housing colour
- Black
- UPS input
- Terminals
- Maximum current
- 63 A
- Operating temperature (T-T)
- 0 - 45 °C
- Width
- 440 mm
- Brand
- Salicru
- Category
- Maintenance Bypass Panels (MBPs)
- Model
- BM-R 63 A+
- Part number
- 6B4OP000002
- EAN / UPC
- 8436584873709
- Also known as
- Salicru BM-R 63 A+ 208 - 240 V Black
Specifications
21 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Housing colour | Black |
| Number of output IEC jumpers | 6 |
| Recommended cable | 10 mm² |
| Rack capacity | 2U |
| Rack mounting | Yes |
| Wall mountable | Yes |
| Compatible rack width | 19" |
Ports & interfaces
| Specification | Value |
|---|---|
| UPS input | Terminals |
| UPS output | Terminal + 2x IEC19 + 2x IEC13 |
Power
| Specification | Value |
|---|---|
| Maximum current | 63 A |
| Operation voltage range | 208 - 240 V |
| Output frequency | 50/60 Hz |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead, Mercury, Cadmium |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Maximum operating altitude | 2400 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 80 mm |
| Height | 85 mm |
| Weight | 2.4 kg |
