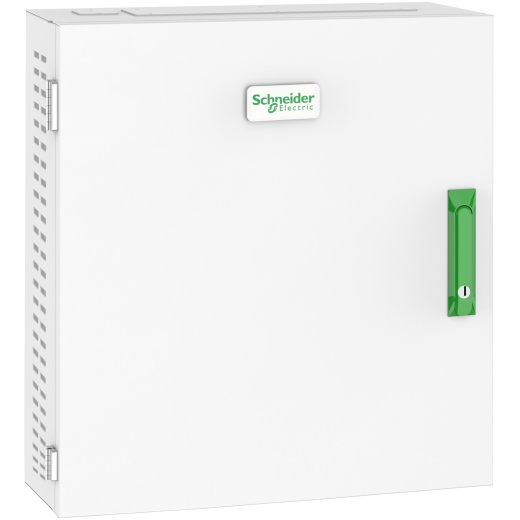

E3SBPSU10K20F maintenance bypass panel (MBP) 10000
20000 V White
Model E3SBPSU10K20FEAN 731304427599
10 specifications
- Weight30 kg
- Housing colourWhite
- Operation voltage range10000 - 20000 V
- Operating temperature (T-T)0 - 40 °C
- Width550 mm
Overview
- Weight
- 30 kg
- Housing colour
- White
- Operation voltage range
- 10000 - 20000 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 550 mm
- Brand
- APC
- Category
- Maintenance Bypass Panels (MBPs)
- Model
- E3SBPSU10K20F
- Part number
- E3SBPSU10K20F
- EAN / UPC
- 731304427599
- Also known as
- APC E3SBPSU10K20F maintenance bypass panel (MBP) 10000 - 20000 V White
Specifications
10 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Housing colour | White |
Power
| Specification | Value |
|---|---|
| Operation voltage range | 10000 - 20000 V |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 550 mm |
| Depth | 260 mm |
| Height | 600 mm |
| Weight | 30 kg |
