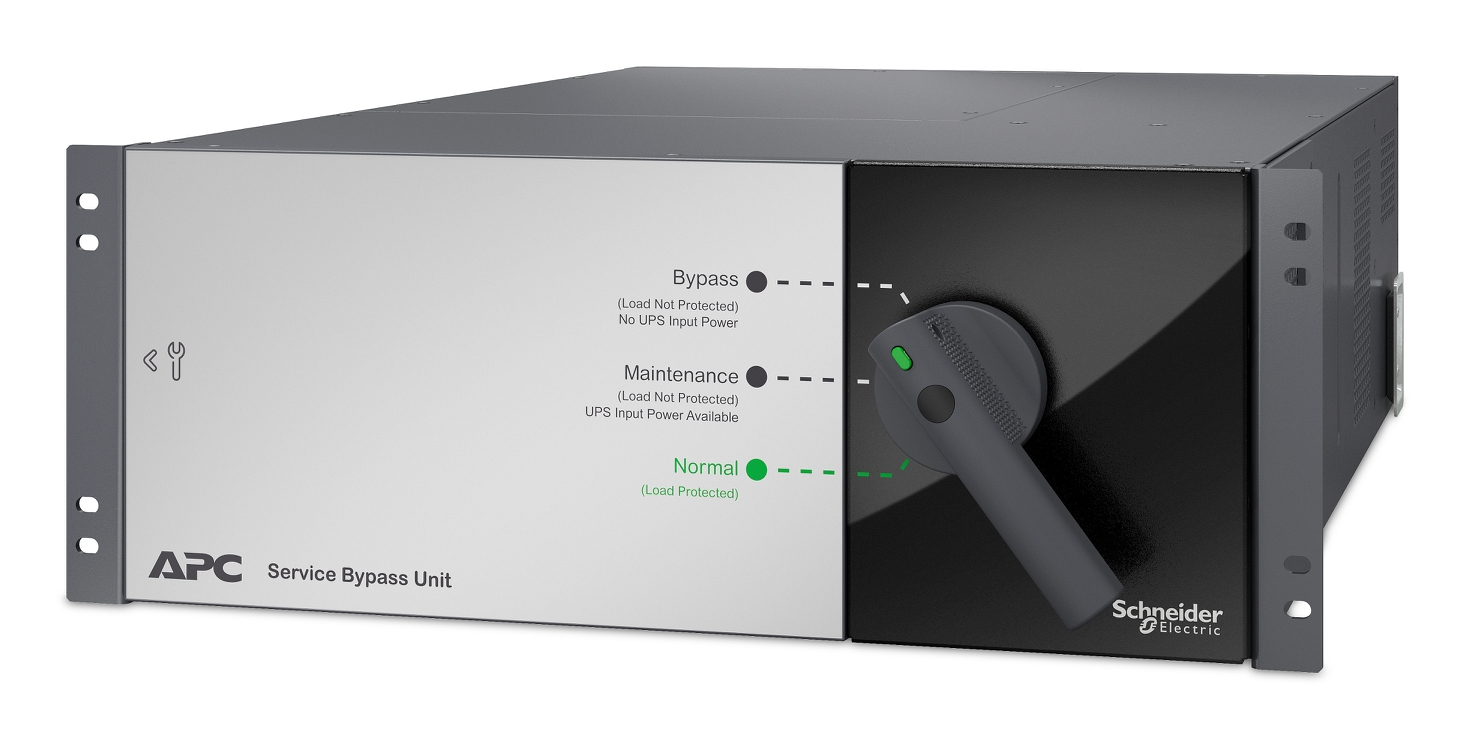

SRYLSBP20KP maintenance bypass panel (MBP) 200
240 V Black 125 A
Model SRYLSBP20KPEAN 731304434702
11 specifications
- Weight23 kg
- Housing colourBlack
- Maximum current125 A
- Operating temperature (T-T)0 - 40 °C
- Width432 mm
Overview
- Weight
- 23 kg
- Housing colour
- Black
- Maximum current
- 125 A
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 432 mm
- Brand
- APC
- Category
- Maintenance Bypass Panels (MBPs)
- Model
- SRYLSBP20KP
- Part number
- SRYLSBP20KP
- EAN / UPC
- 731304434702
- Also known as
- APC SRYLSBP20KP maintenance bypass panel (MBP) 200 - 240 V Black 125 A
Specifications
11 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Housing colour | Black |
| Rack capacity | 4U |
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| Maximum current | 125 A |
| Operation voltage range | 200 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Maximum operating altitude | 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 755 mm |
| Height | 175 mm |
| Weight | 23 kg |
