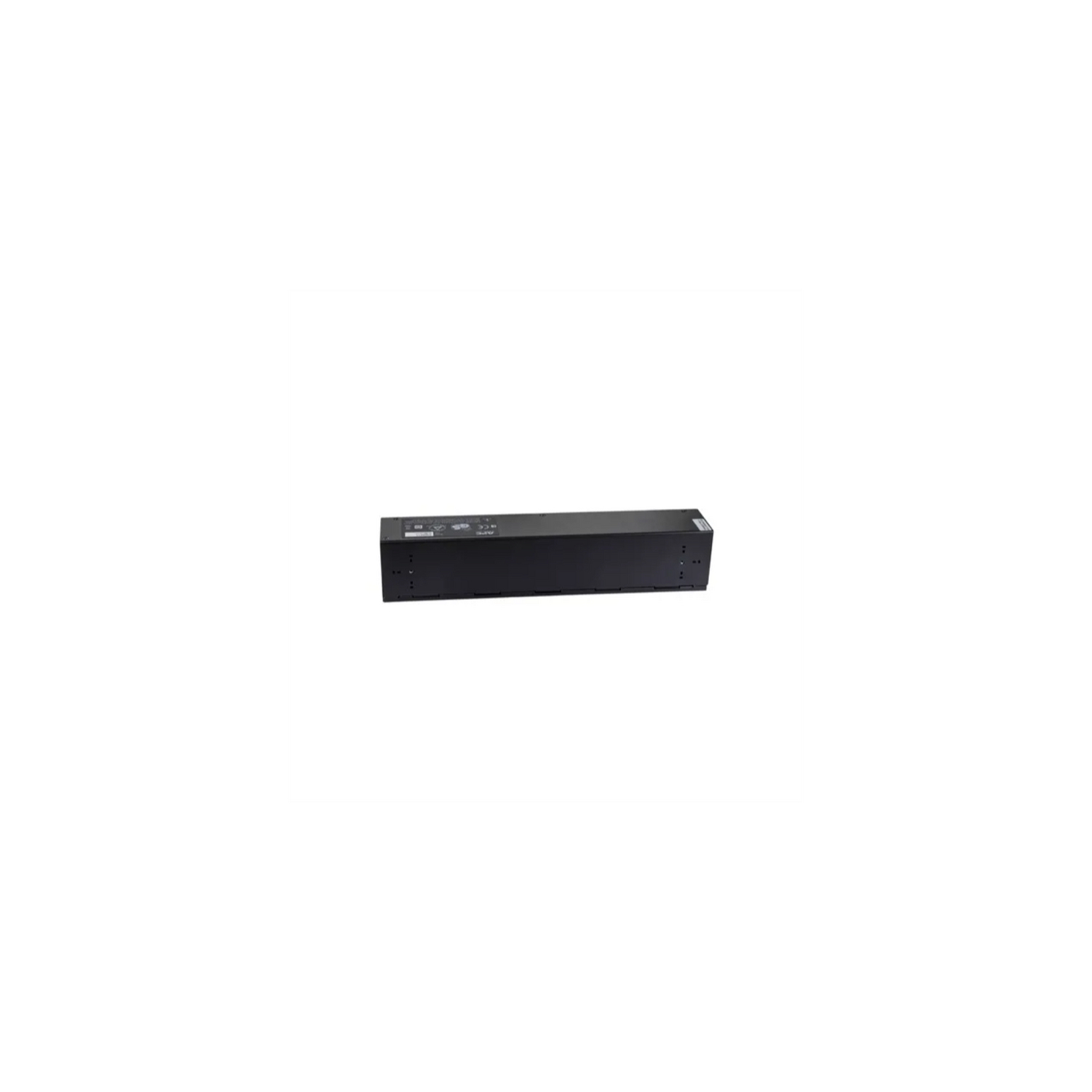

Service Bypass PDU, 230V 16AMP Hardwire
Model Service Bypass PDU, 230V 16AMP HardwirePart no. SBP3000RMHWEAN 731304283225
21 specifications
- Weight2.27 kg
- Rack capacity2U
- AC input voltage230 V
- Operating temperature (T-T)0 - 40 °C
- Width432 mm
- Mountingfront
Overview
- Weight
- 2.27 kg
- Rack capacity
- 2U
- AC input voltage
- 230 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 432 mm
- Mounting
- front
- Brand
- APC
- Category
- Maintenance Bypass Panels (MBPs)
- Model
- Service Bypass PDU, 230V 16AMP Hardwire
- Part number
- SBP3000RMHW
- EAN / UPC
- 731304283225
- Also known as
- APC Service Bypass PDU, 230V 16AMP Hardwire
Specifications
21 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 2U |
| Country of origin | India |
Ports & interfaces
| Specification | Value |
|---|---|
| Output connections | hard wire 3-wire (H N + E) for 1 zone(s) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC output voltage | 230 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | VDE, REACH |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 76 mm |
| Height | 89 mm |
| Weight | 2.27 kg |
Technical details
| Specification | Value |
|---|---|
| Mounting | front |
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | no preference |
| Packaging without single use plastic | No |
| SCIP number | 7a19864b-8bf5-40ac-85e8-7678b0910185 |
| Sustainable packaging | No |
| Take-back system | No |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8536699099 |
