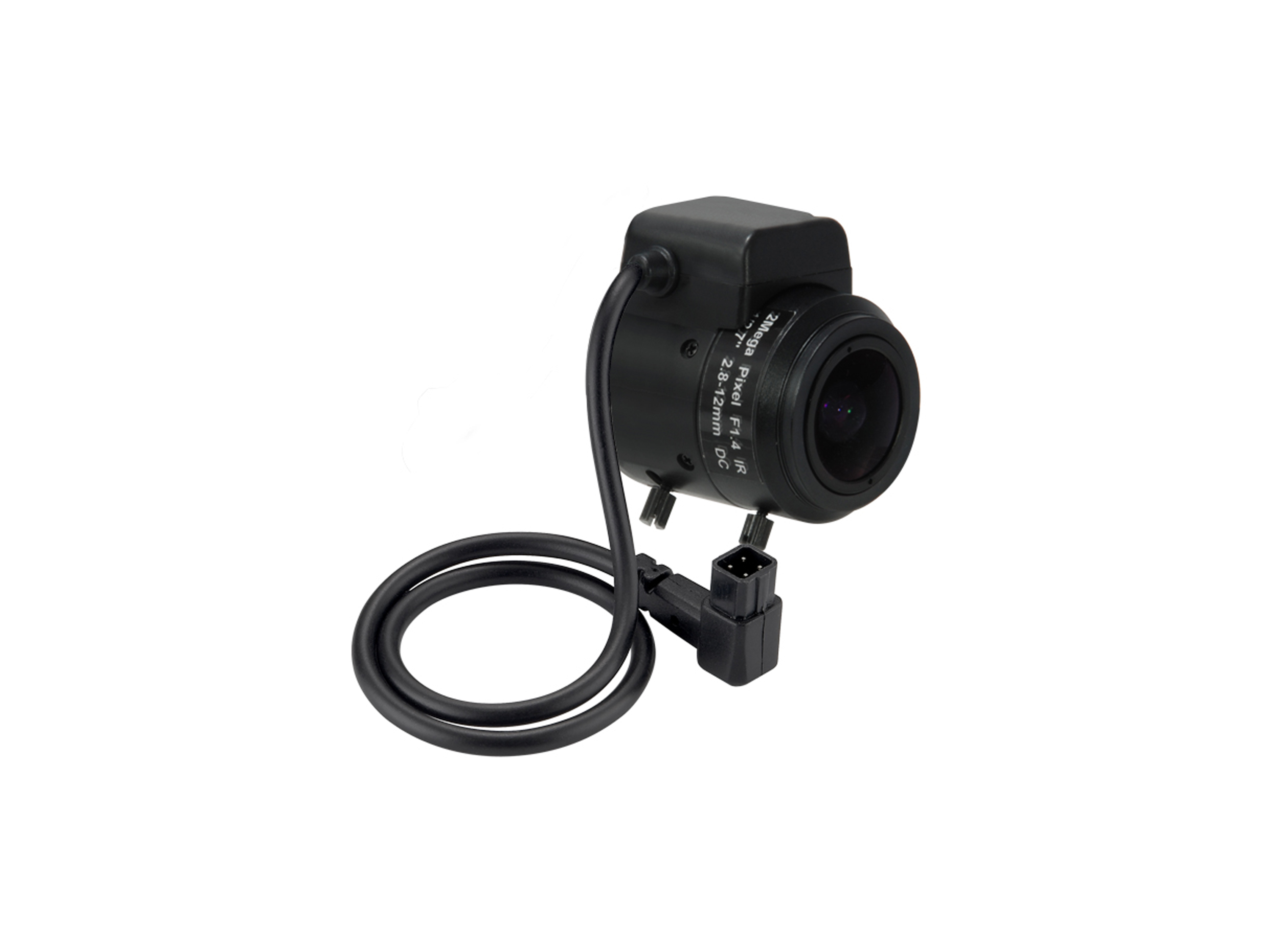

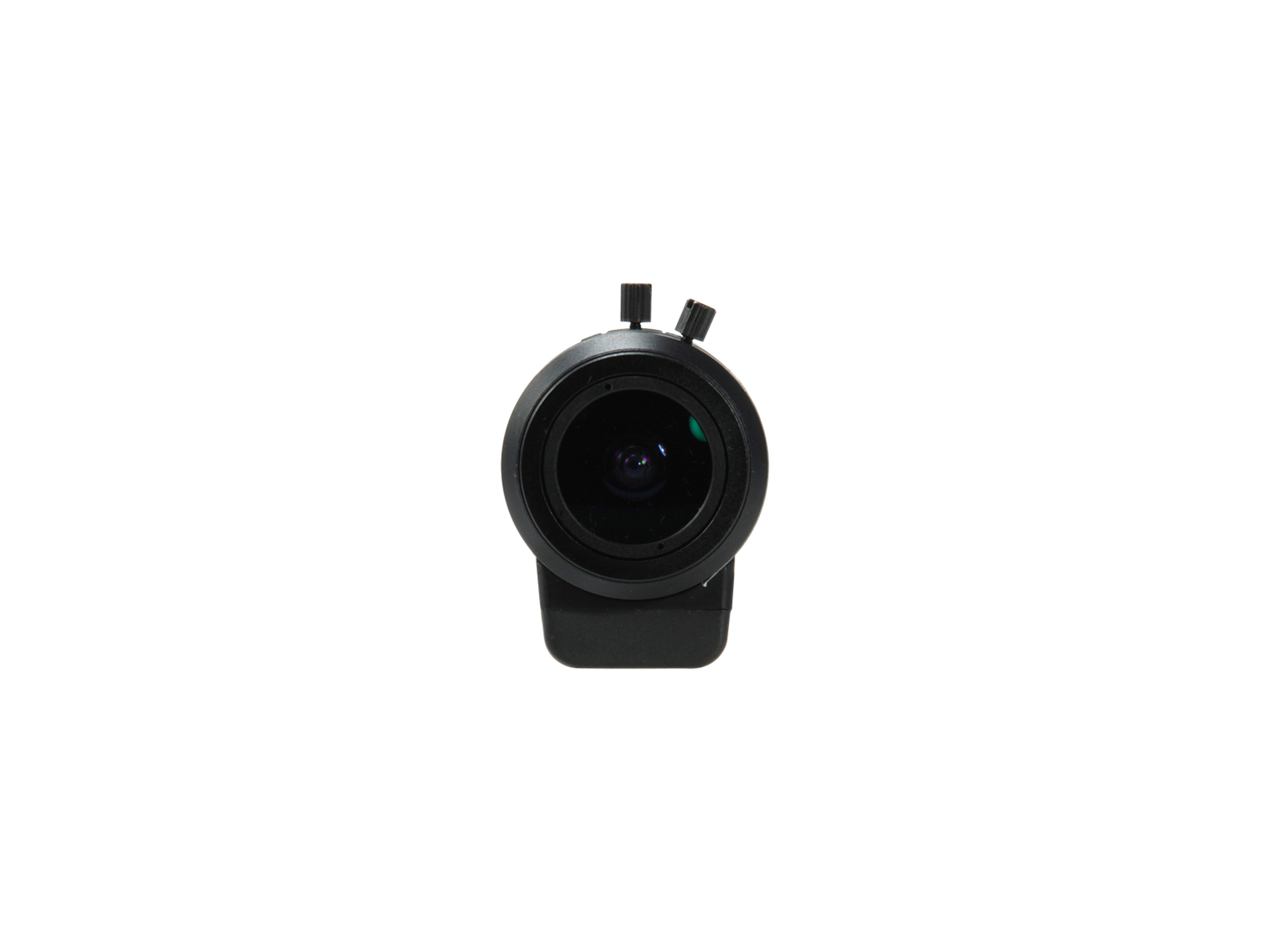

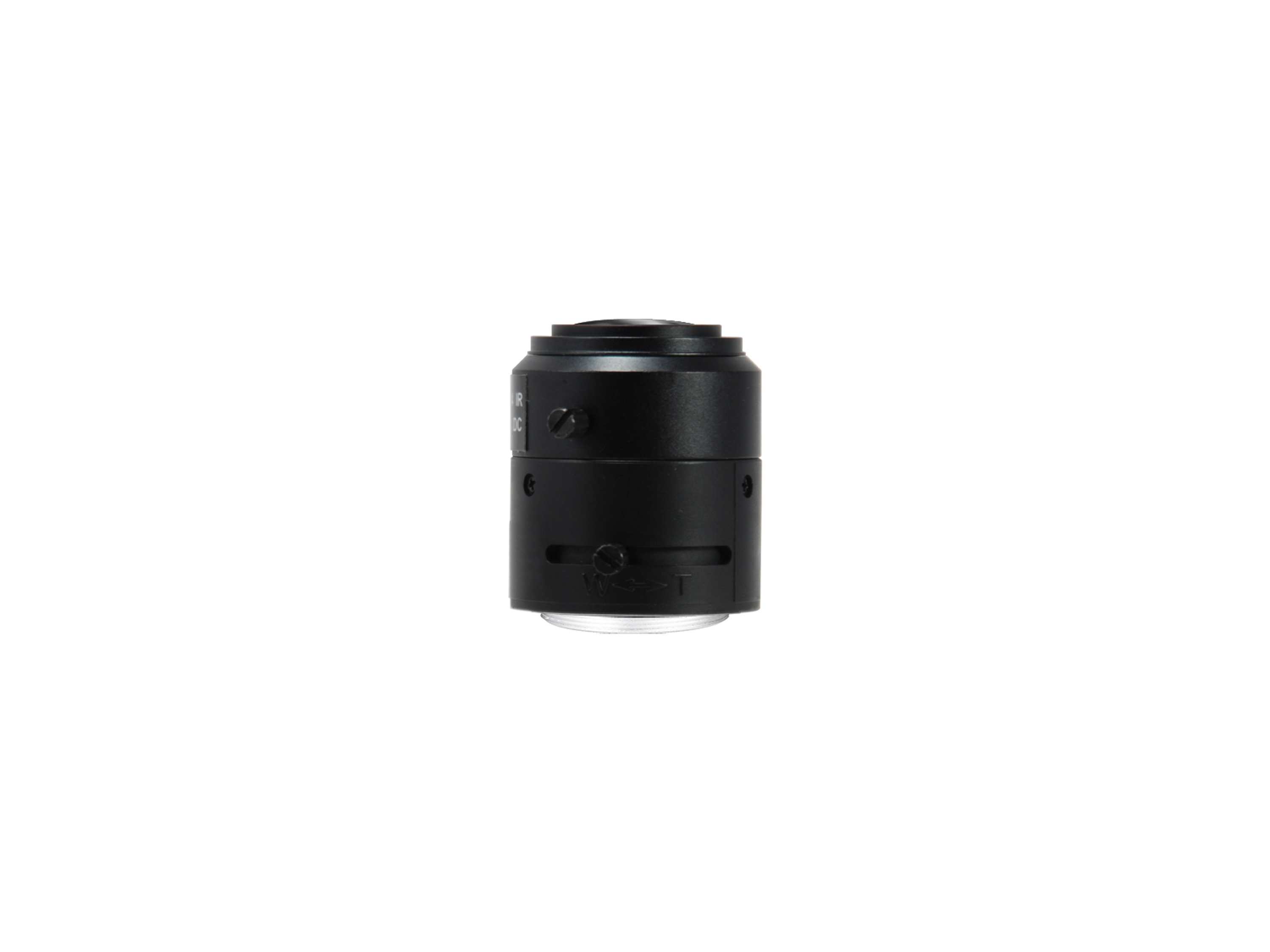

Varifocal Lens, 2-Megapixel, 2.8-12mm
Model CAS-1400EAN 4015867180006
19 specifications Checked today
- Weight60.6 g
- ColourBlack
- Component forIP Camera
- Operating temperature (T-T)-10 - 50 °C
- Megapixel (approx.)2 MP
- Diameter3.6 cm
Overview
- Weight
- 60.6 g
- Colour
- Black
- Component for
- IP Camera
- Operating temperature (T-T)
- -10 - 50 °C
- Megapixel (approx.)
- 2 MP
- Diameter
- 3.6 cm
- Brand
- LevelOne
- Category
- Lens
- Model
- CAS-1400
- Part number
- CAS-1400
- EAN / UPC
- 4015867180006
- Also known as
- LevelOne Varifocal Lens, 2-Megapixel, 2.8-12mm
Specifications
19 specifications in 7 groups
Lens system
| Specification | Value |
|---|---|
| Component for | IP Camera |
| Lens viewing angle, horizontal | 93° |
| Aperture range (F-F) | 1.4 - 360 |
| Lens viewing angle, vertical | 77° |
| Lens viewing angle, diagonal | 105 - 35° |
| Focal length range | 2.8 - 12 mm |
| Lens mount interface | CS mount |
| Minimum aperture number | 360 |
Performance
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 90021100 |
Technical details
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 3.6 cm |
| Length | 45.2 mm |
| Weight | 60.6 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 130 mm |
| Package height | 50 mm |
| Package weight | 100 g |
| Package width | 75 mm |
