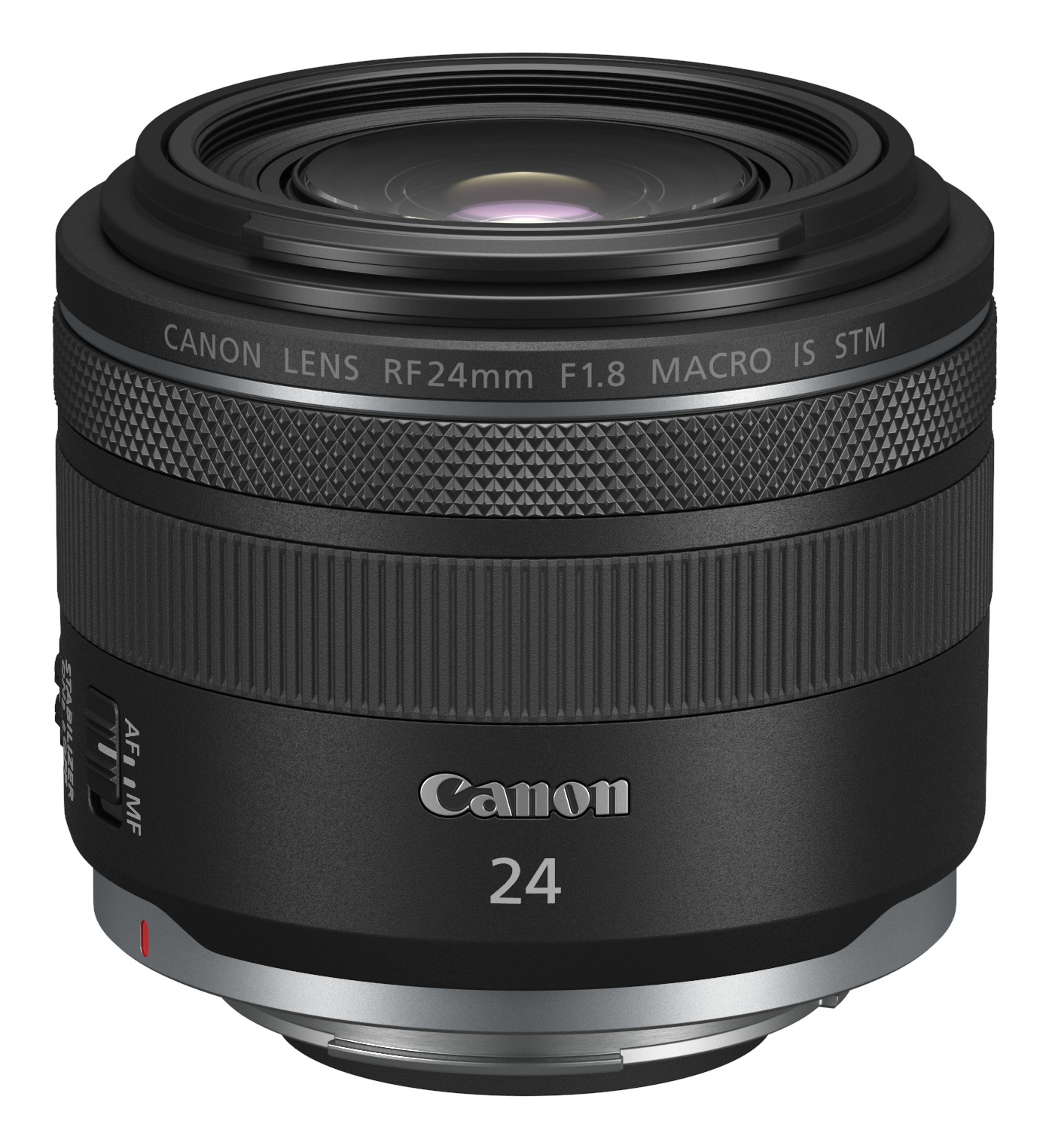

RF24mm F1.8 MACRO IS STM

Model RF24mm F1.8 MACRO IS STMPart no. 5668C002EAN 013803352016

67 specifications Checked today

Overview

67 specifications in 7 groups

Specification	Value
Component for	MILC
Lens structure (elements/groups)	11/9
Lens type	Wide zoom lens
Lens viewing angle, horizontal	74°
Focus adjustment	Auto/Manual
Lens viewing angle, vertical	53°
Fixed focal length	24 mm
Lens viewing angle, diagonal	84°
Focal length range	24 - 24 mm
Closest focusing distance	0.14 m
Control ring	Yes
Image sensor format	Full frame
Lens mount interface	Canon RF
Macro ratio	1:2
Maximum aperture number	1.8
Minimum aperture number	22
Number of aspheric elements	1
Number of diaphragm blades	9
Teleconverter/Extender compatible	No
Zoom capability	Yes
Image stabilizer	Yes
Image stabilizer type	Optical Image Stabilization (OIS)
Image stabilizer number of stops (OIS)	5
Image stabilizer number of stops (IBIS x OIS)	6.5

Specification	Value
AF actuator	STM
Auto focus	Yes
Camera brands compatibility	Canon
Circular aperture	Yes
Lens coating features	Super Spectra Coating (SSC)
Lens colour	Black
Manual focus	Yes
Number of Ultra-low Dispersion (UD) elements	1
Lens hood	Yes
Lens hood model	EW-65B

Specification	Value
Country of origin	Japan
Master (outer) case gross weight	3.34 kg
Master (outer) case height	237 mm
Master (outer) case length	386 mm
Master (outer) case width	263 mm
Pallet gross height	131.5 cm
Pallet gross length	120 cm
Pallet gross weight	118.8 kg
Pallet gross width	80 cm
Products per master (outer) case	6 pc(s)
Products per pallet	180 pc(s)
Quantity per pack	1 pc(s)
Layers per pallet	5 pc(s)
Master (outer) cases per pallet layer	6 pc(s)
Products per pallet layer	36 pc(s)
