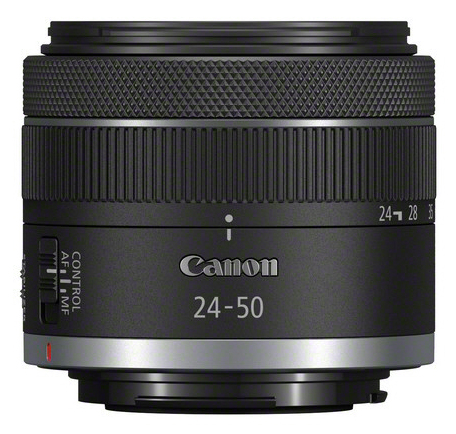

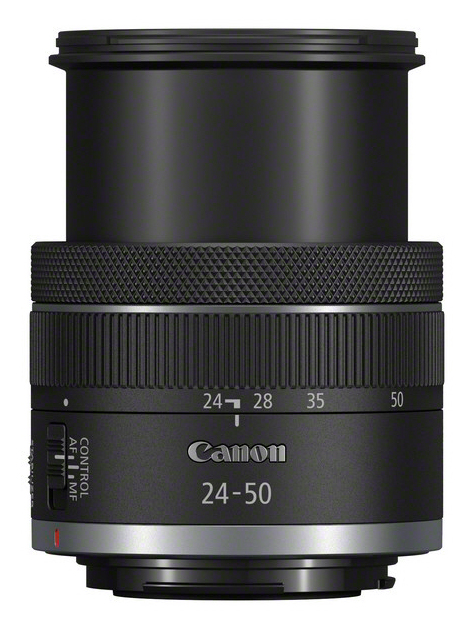

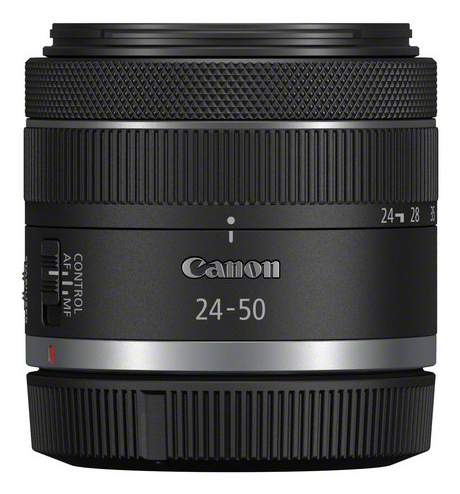

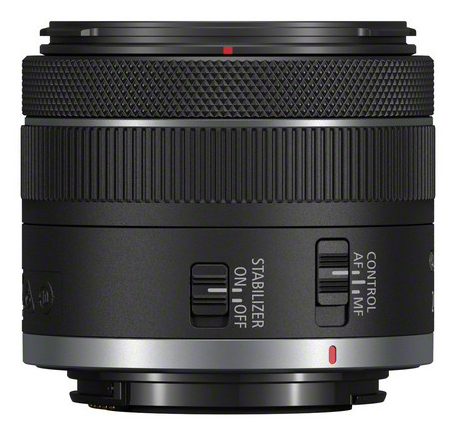

RF 24-50 mm f4.5-6.3 IS STM
Model RF 24-50 mm f4.5-6.3 IS STMPart no. 5823C005EAN 4549292207446
57 specifications Checked today
- Weight210 g
- ColourBlack
- Component forMILC
- AF actuatorSTM
- Diameter6.96 cm
Overview
- Weight
- 210 g
- Colour
- Black
- Component for
- MILC
- AF actuator
- STM
- Diameter
- 6.96 cm
- Brand
- Canon
- Category
- Lens
- Model
- RF 24-50 mm f4.5-6.3 IS STM
- Part number
- 5823C005
- EAN / UPC
- 4549292207446
- Also known as
- Canon RF 24-50 mm F4.5-6.3 IS STM Camera Lenses, Black
Specifications
57 specifications in 7 groups
Lens system
| Specification | Value |
|---|---|
| Component for | MILC |
| Lens structure (elements/groups) | 8/8 |
| Lens type | Standard zoom lens |
| Lens viewing angle, horizontal | 74 - 40° |
| Focus adjustment | Auto/Manual |
| Lens viewing angle, vertical | 53 - 27° |
| Lens viewing angle, diagonal | 84 - 46° |
| Focal length range | 24 - 50 mm |
| Closest focusing distance | 0.3 m |
| Control ring | Yes |
| Image sensor format | Full frame |
| Lens mount interface | Canon RF |
| Macro ratio | 1:5.3 |
| Maximum aperture number | 4.5 |
| Minimum aperture number | 6.3 |
| Number of aspheric elements | 2 |
| Number of diaphragm blades | 7 |
| Teleconverter/Extender compatible | No |
| Zoom capability | Yes |
| Image stabilizer | Yes |
| Image stabilizer type | Optical Image Stabilization (OIS) |
| Image stabilizer number of stops | 7 |
| Image stabilizer number of stops (OIS) | 4.5 |
| Image stabilizer number of stops (IBIS x OIS) | 7 |
Performance
| Specification | Value |
|---|---|
| AF actuator | STM |
| Auto focus | Yes |
| Camera brands compatibility | Canon |
| Circular aperture | Yes |
| Lens coating features | Super Spectra Coating (SSC) |
| Lens colour | Black |
| Manual focus | Yes |
| Number of Ultra-low Dispersion (UD) elements | 0 |
| Lens hood | Yes |
| Lens hood model | EW-63C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Bayonet |
| Dustproof | No |
| Weatherproof | No |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Japan |
| Quantity per pack | 1 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet layer | 9 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 6.96 cm |
| Filter size | 58 mm |
| Length | 58 mm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 250 mm |
| Package height | 100 mm |
| Package volume | 2723 cm³ |
| Package weight | 350 g |
| Package width | 250 mm |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Lens cap included | Yes |
| Lens cap model | E-58 II |
| Rear lens cap included | Yes |
| Rear lens cap model | RF |
| User guide | Yes |
