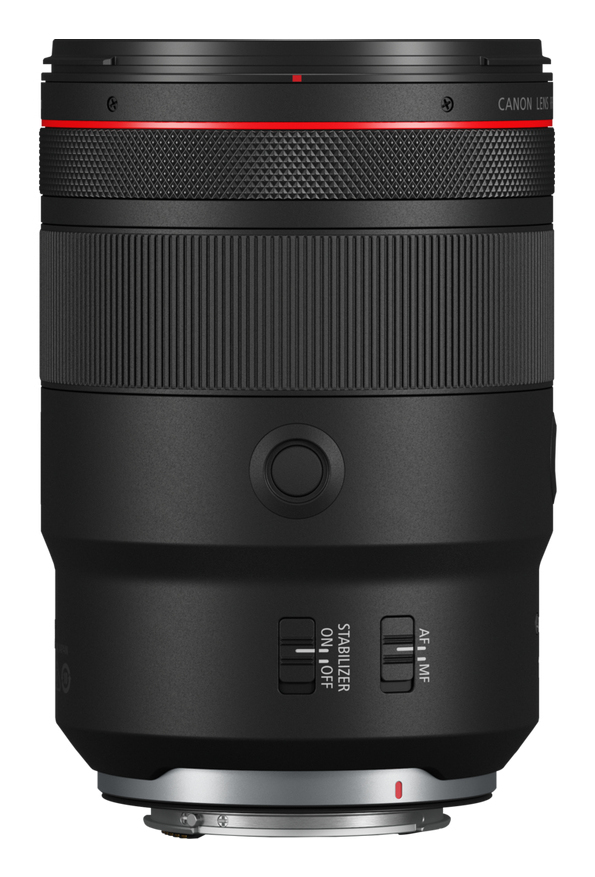

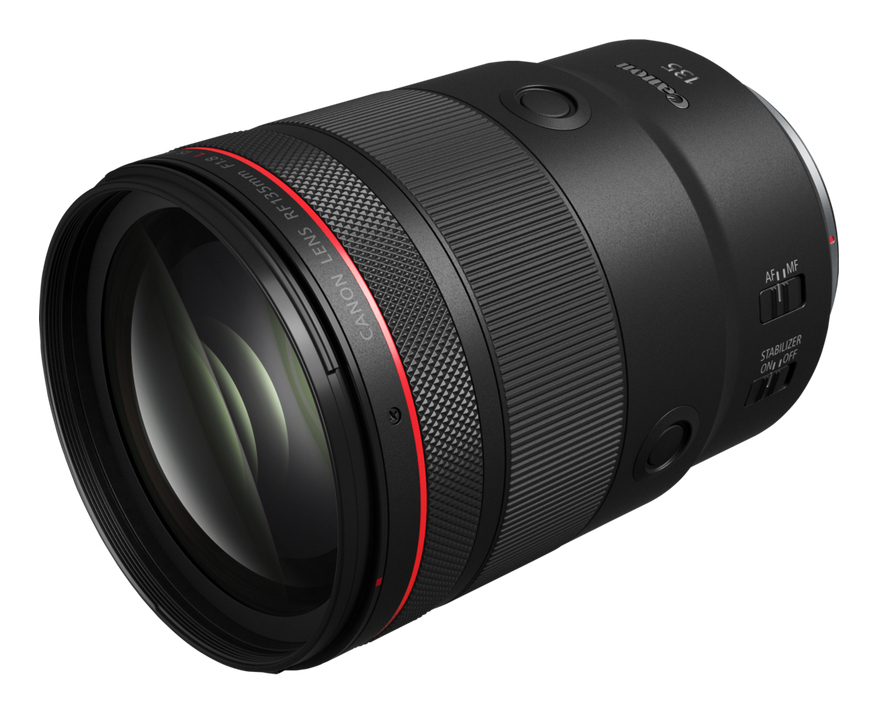

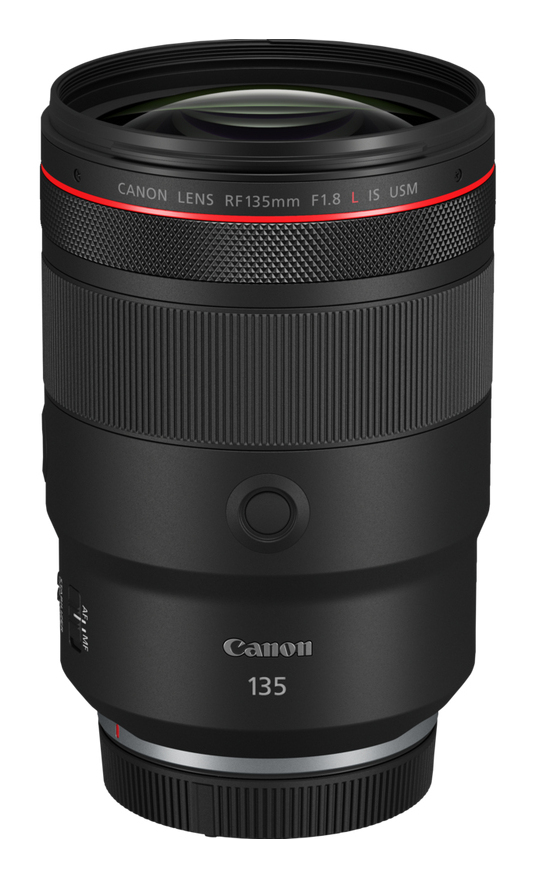

RF135mm F1.8 L IS USM
Model RF135mm F1.8 L IS USMPart no. 5776C002EAN 013803352078
57 specifications Checked today
- Weight940 g
- ColourBlack
- Component forMILC
- AF actuatorUSM
- Diameter8.92 cm
Overview
- Weight
- 940 g
- Colour
- Black
- Component for
- MILC
- AF actuator
- USM
- Diameter
- 8.92 cm
- Brand
- Canon
- Category
- Lens
- Model
- RF135mm F1.8 L IS USM
- Part number
- 5776C002
- EAN / UPC
- 013803352078
- Also known as
- Canon RF135mm F1.8 L IS USM Overview
Specifications
57 specifications in 7 groups
Lens system
| Specification | Value |
|---|---|
| Component for | MILC |
| Lens structure (elements/groups) | 17/12 |
| Lens type | Telephoto zoom lens |
| Lens viewing angle, horizontal | 15° |
| Focus adjustment | Auto/Manual |
| Lens viewing angle, vertical | 10° |
| Fixed focal length | 135 mm |
| Lens viewing angle, diagonal | 18° |
| Focal length range | 35 - 135 mm |
| Closest focusing distance | 0.7 m |
| Control ring | Yes |
| Image sensor format | Full frame |
| Lens mount interface | Canon RF |
| Macro ratio | 1:4 |
| Maximum aperture number | 1.8 |
| Minimum aperture number | 22 |
| Number of aspheric elements | 0 |
| Number of diaphragm blades | 9 |
| Teleconverter/Extender compatible | No |
| Zoom capability | Yes |
| Image stabilizer | Yes |
| Image stabilizer type | Optical Image Stabilization (OIS) |
| Image stabilizer number of stops | 6.5 |
| Image stabilizer number of stops (OIS) | 5.5 |
| Image stabilizer number of stops (IBIS x OIS) | 8 |
Performance
| Specification | Value |
|---|---|
| AF actuator | USM |
| Auto focus | Yes |
| Camera brands compatibility | Canon |
| Circular aperture | Yes |
| Lens coating features | Air Sphere Coating (ASC), Super Spectra Coating (SSC) |
| Lens colour | Black |
| Manual focus | Yes |
| Number of Ultra-low Dispersion (UD) elements | 3 |
| Lens hood | Yes |
| Lens hood model | ET-88B |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Bayonet |
| Dustproof | Yes |
| Weatherproof | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Japan |
| Quantity per pack | 1 pc(s) |
| Layers per pallet | 3 pc(s) |
| Master (outer) cases per pallet layer | 6 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 8.92 cm |
| Filter size | 82 mm |
| Length | 133 mm |
| Weight | 940 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 300 mm |
| Package height | 250 mm |
| Package volume | 4842 cm³ |
| Package weight | 1.1 kg |
| Package width | 250 mm |
Packaging content
| Specification | Value |
|---|---|
| Lens cap included | Yes |
| Lens cap model | E-82 II |
| Rear lens cap included | Yes |
| Rear lens cap model | RF |
| User guide | Yes |
