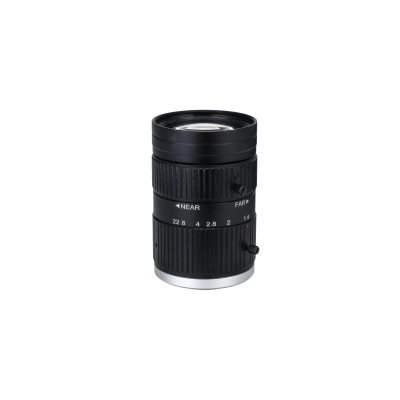

PFL50-L12M camera lens IP Camera Fixed focus lens Black
Model PFL50-L12M
23 specifications Checked today
- Weight318 g
- ColourBlack
- Component forIP Camera
- Operating temperature (T-T)-30 - 70 °C
- MaterialMetal
- Total megapixels12 MP
Overview
- Weight
- 318 g
- Colour
- Black
- Component for
- IP Camera
- Operating temperature (T-T)
- -30 - 70 °C
- Material
- Metal
- Total megapixels
- 12 MP
- Brand
- Dahua Technology
- Category
- Lens
- Model
- PFL50-L12M
- Part number
- PFL50-L12M
- Also known as
- Dahua Technology PFL50-L12M camera lens IP Camera Fixed focus lens Black
Specifications
23 specifications in 6 groups
Lens system
| Specification | Value |
|---|---|
| Component for | IP Camera |
| Lens type | Fixed focus lens |
| Lens viewing angle, horizontal | 16.5° |
| Aperture range (F-F) | 1.4 - 1.4 |
| Lens viewing angle, vertical | 11.3° |
| Fixed focal length | 50 mm |
| Lens viewing angle, diagonal | 20.1° |
| Focal length range | 50 - 50 mm |
| Closest focusing distance | 1.5 m |
| Distortion | -2% |
| Lens mount interface | C mount |
| Maximum aperture number | 1.4 |
| Minimum aperture number | 1.4 |
| Optical sensor size | 25.4 / 1.1 mm (1 / 1.1") |
Performance
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
Design
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
Technical details
| Specification | Value |
|---|---|
| Total megapixels | 12 MP |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 318 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 455 mm |
| Package height | 325 mm |
| Package weight | 370 g |
| Package width | 255 mm |
