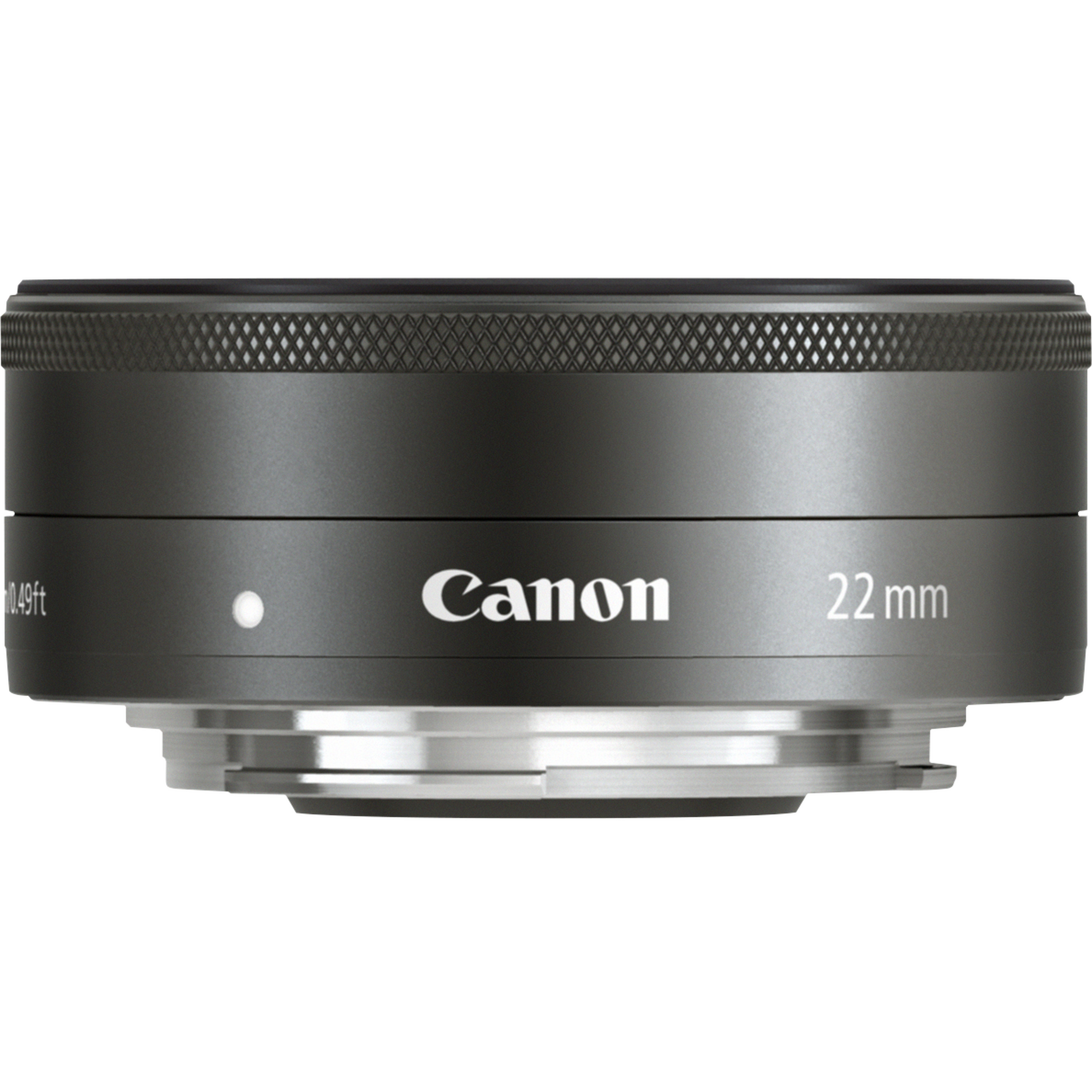

EF-M 22mm f/2 STM Lens
Model 5985B005EAN 4960999841120
26 specifications Checked today
- Weight105 g
- ColourBlack
- Lens structure (elements/groups)7/6
- AF actuatorSTM
- MaterialAluminium
- Diameter6.09 cm
Overview
- Weight
- 105 g
- Colour
- Black
- Lens structure (elements/groups)
- 7/6
- AF actuator
- STM
- Material
- Aluminium
- Diameter
- 6.09 cm
- Brand
- Canon
- Category
- Lens
- Model
- 5985B005
- Part number
- 5985B005
- EAN / UPC
- 4960999841120, 5053959359878, 8030207007856
- Also known as
- Canon EF-M 22mm f/2 STM Lens
Specifications
26 specifications in 5 groups
Lens system
| Specification | Value |
|---|---|
| Lens structure (elements/groups) | 7/6 |
| Lens type | Wide lens |
| Lens viewing angle, horizontal | 54° |
| Focus adjustment | Auto |
| Lens viewing angle, vertical | 37° |
| Lens viewing angle, diagonal | 63° |
| Closest focusing distance | 0.15 m |
| Focal length (35mm film equivalent) | 0 - 35 mm |
| Image sensor format | APS-C |
| Lens mount interface | Canon EF-M |
| Maximum aperture number | 22 |
| Number of diaphragm blades | 7 |
Performance
| Specification | Value |
|---|---|
| AF actuator | STM |
| Camera brands compatibility | Canon |
| Maximum magnification | 0.21x |
| Lens hood | Yes |
Design
| Specification | Value |
|---|---|
| Material | Aluminium |
| Product colour | Black |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 6.09 cm |
| Filter size | 43 mm |
| Length | 23.7 mm |
| Weight | 105 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 90 mm |
| Package height | 75 mm |
| Package weight | 190 g |
| Package width | 95 mm |
