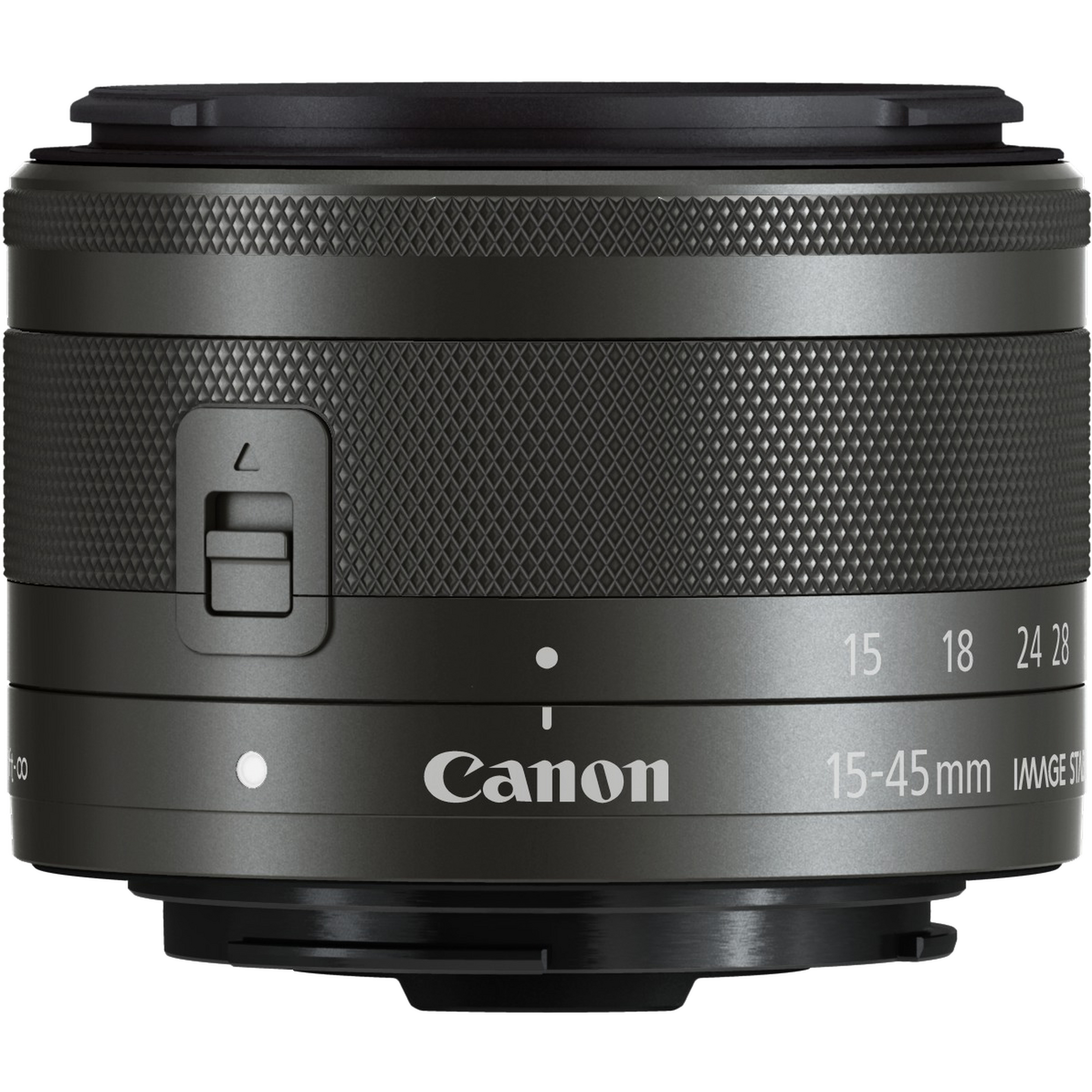

EF-M 15-45mm f/3.5-6.3 IS STM Lens - Graphite
Model 0572C005EAN 4549292037715
34 specifications Checked today
- Weight130 g
- ColourGraphite
- Component forMILC
- AF actuatorSTM
- Diameter6.09 cm
Overview
- Weight
- 130 g
- Colour
- Graphite
- Component for
- MILC
- AF actuator
- STM
- Diameter
- 6.09 cm
- Brand
- Canon
- Category
- Lens
- Model
- 0572C005
- Part number
- 0572C005
- EAN / UPC
- 4549292037715, 8799146113461
- Also known as
- Canon EF-M 15-45mm f/3.5-6.3 IS STM Lens - Graphite
Specifications
34 specifications in 5 groups
Lens system
| Specification | Value |
|---|---|
| Component for | MILC |
| Lens structure (elements/groups) | 10/9 |
| Lens type | Wide zoom lens |
| Lens viewing angle, horizontal | 74° |
| Aperture range (F-F) | 3.5 - 6.3 |
| Focus adjustment | Auto/Manual |
| Lens viewing angle, vertical | 53° |
| Lens viewing angle, diagonal | 84 - 33° |
| Focal length range | 15 - 45 mm |
| Closest focusing distance | 0.25 m |
| Image sensor format | APS-C |
| Lens mount interface | Canon EF-M |
| Maximum aperture number | 40 |
| Maximum focal length (35mm film equiv) | 72 mm |
| Minimum aperture number | 3.5 |
| Minimum focal length (35mm film equiv) | 24 mm |
| Number of diaphragm blades | 7 |
| Image stabilizer | Yes |
Performance
| Specification | Value |
|---|---|
| AF actuator | STM |
| Auto focus | Yes |
| Camera brands compatibility | Canon |
| Compatibility | EOS M |
| Manual focus | Yes |
| Maximum magnification | 0.25x |
| Lens hood | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Graphite |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 6.09 cm |
| Filter size | 49 mm |
| Length | 44.5 mm |
| Weight | 130 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 115.1 mm |
| Package height | 95.8 mm |
| Package weight | 614 g |
| Package width | 164.8 mm |
