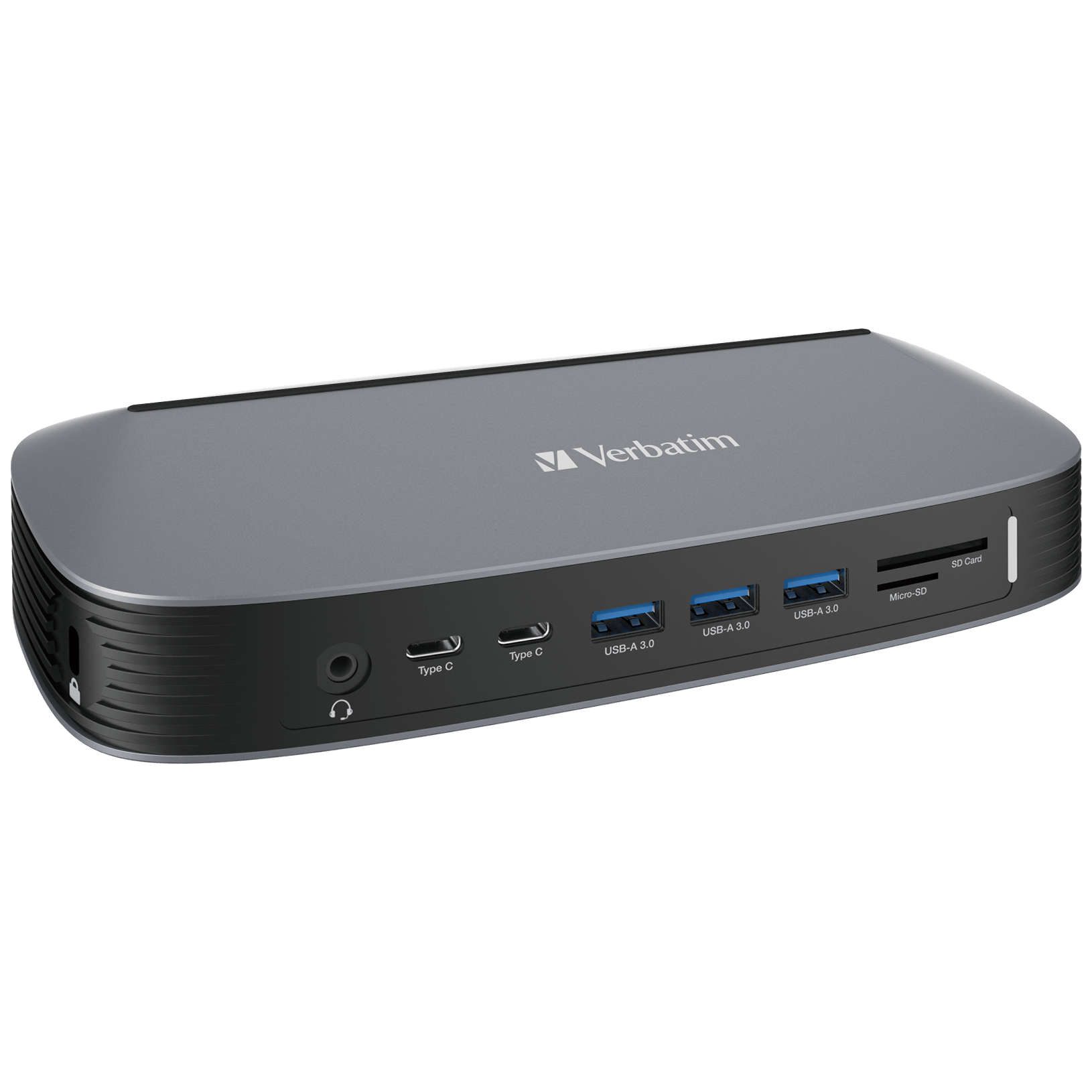

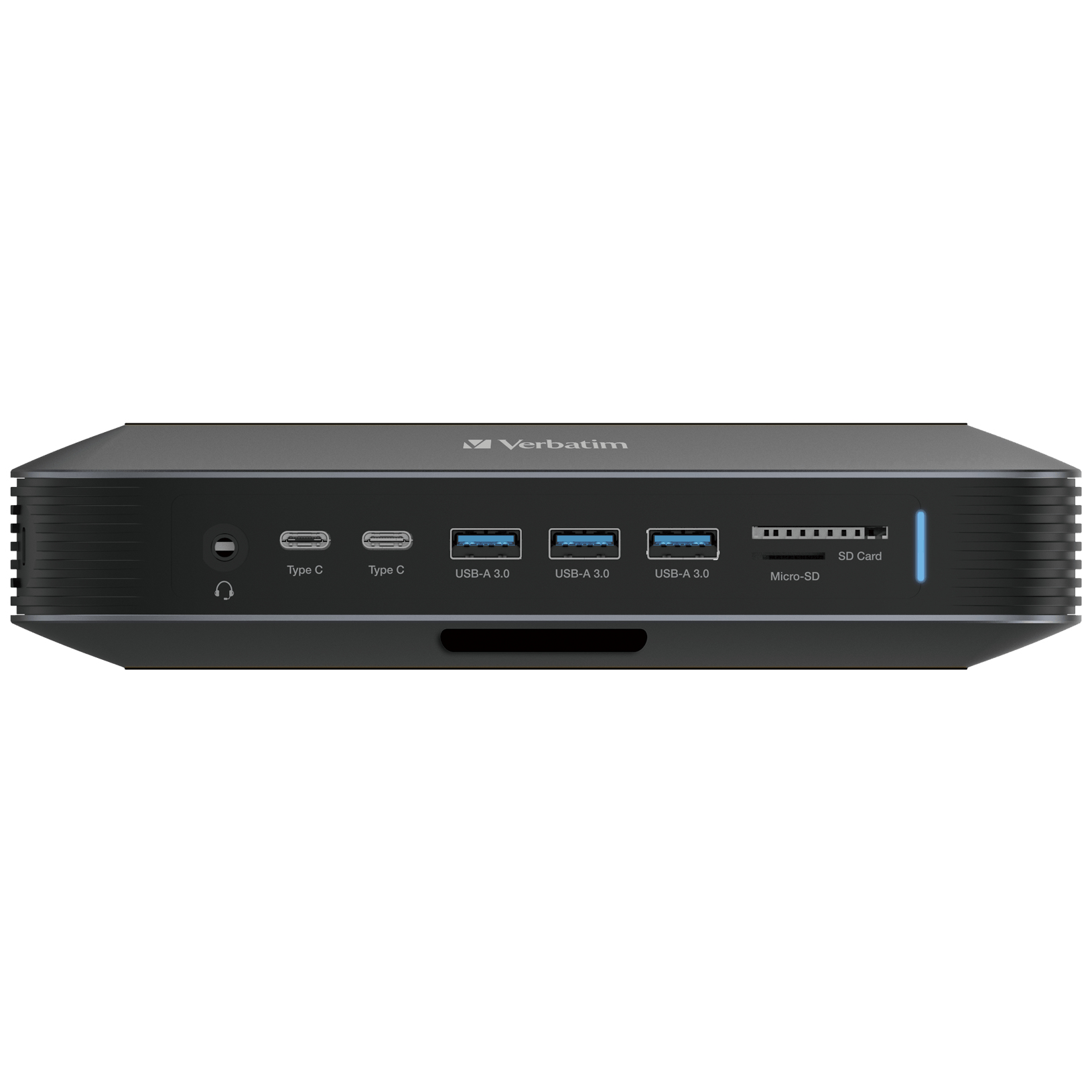

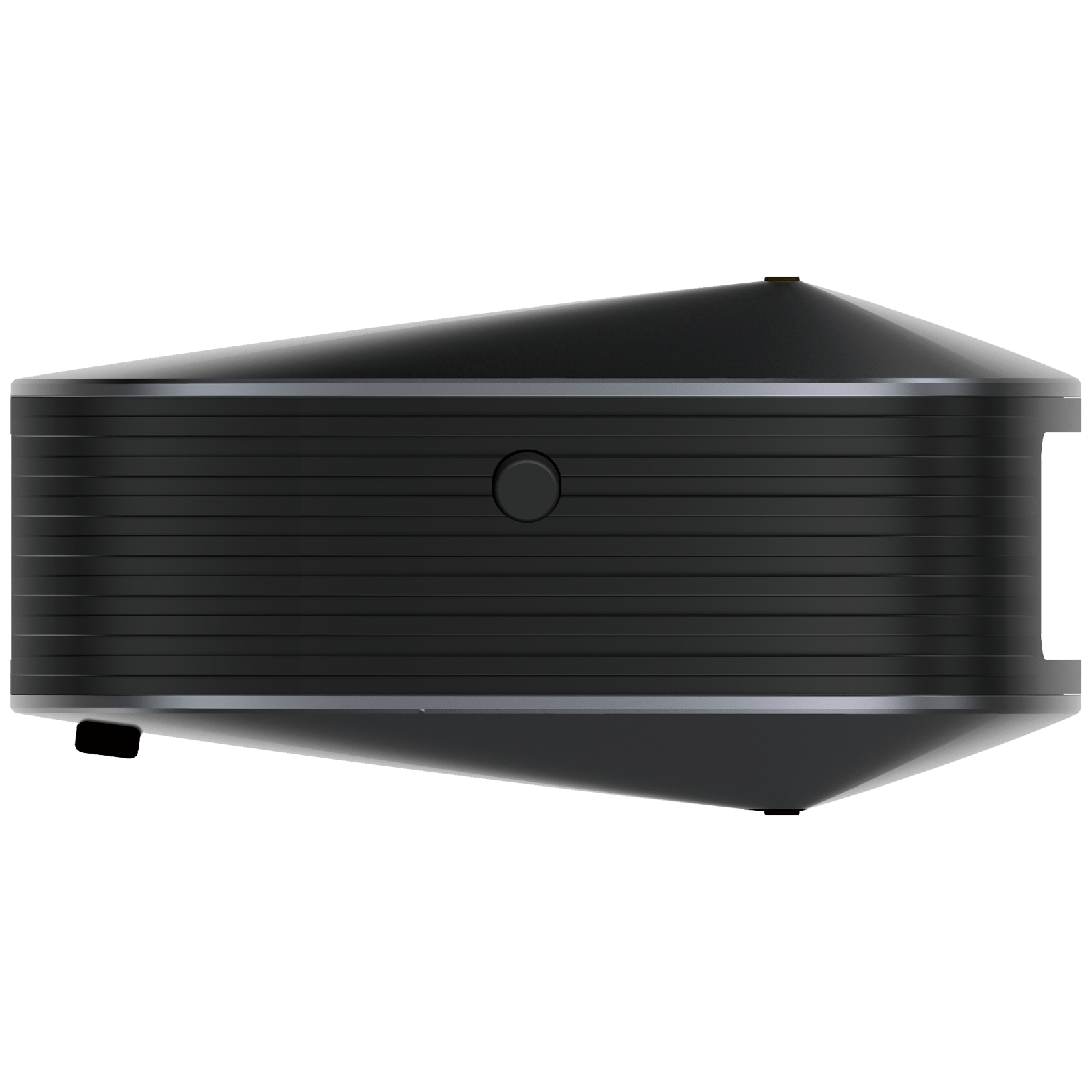

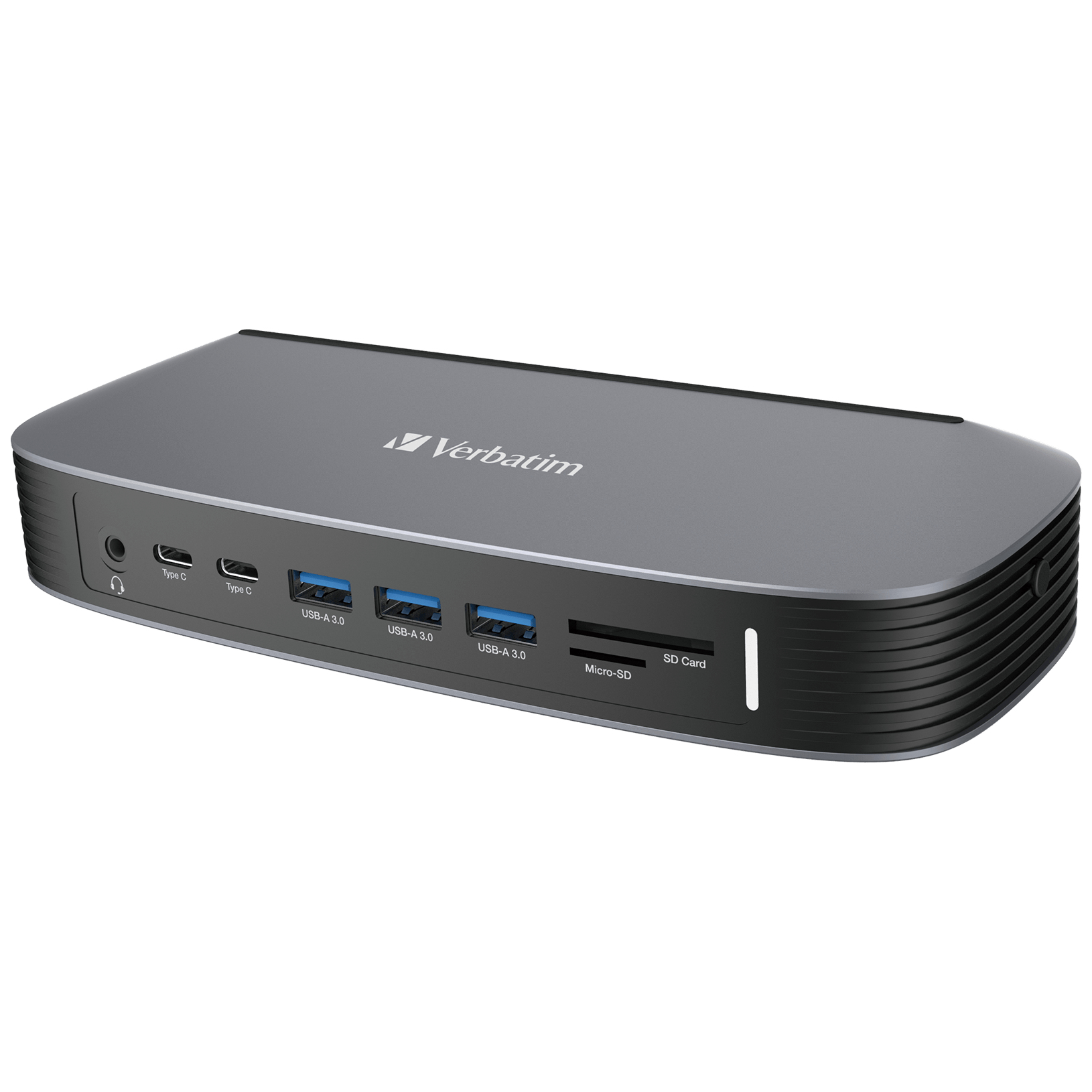

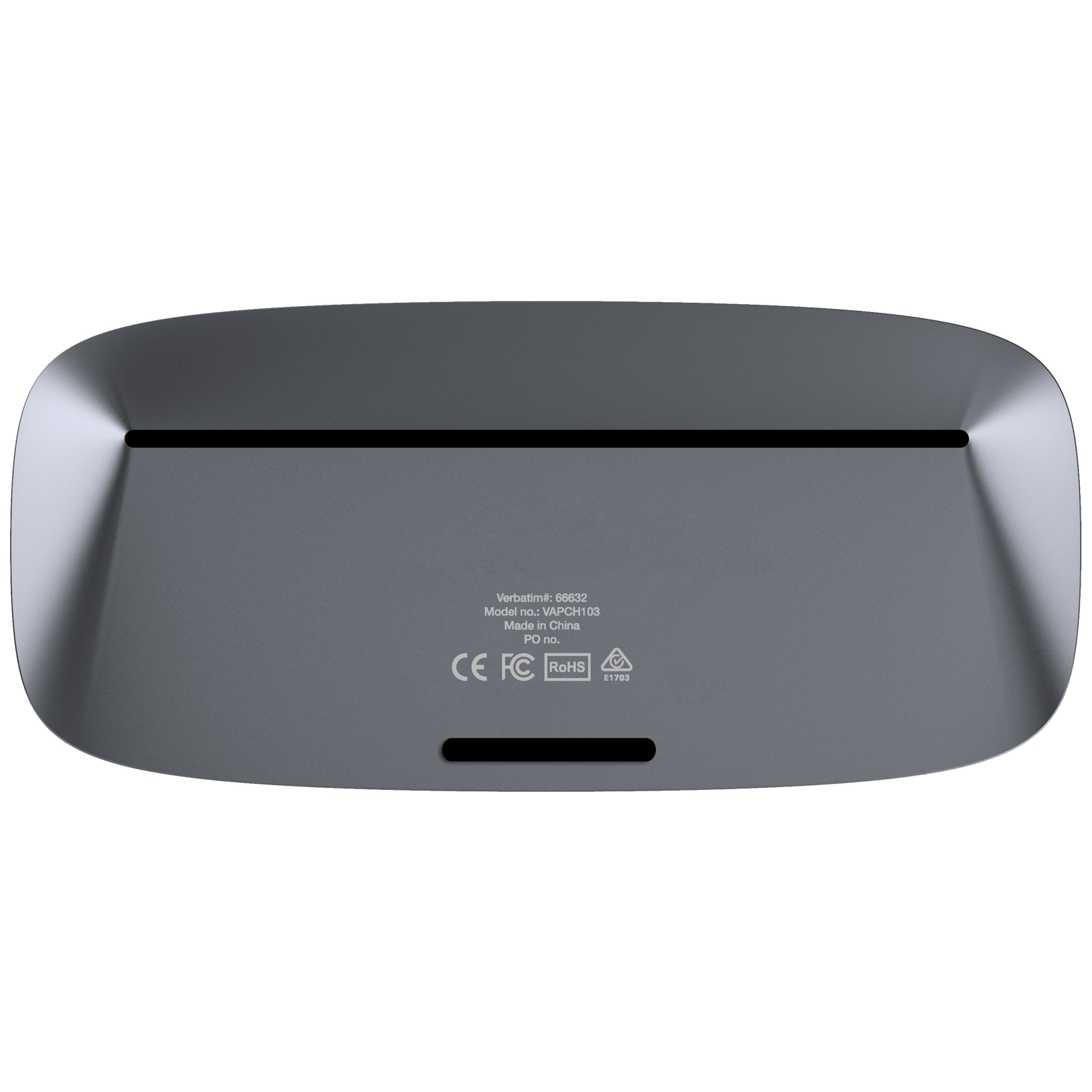

66632 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Model 66632EAN 4895117966327
39 specifications
- ConnectivityWired
- Weight540 g
- ColourGrey
- Ethernet LANYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 50 °C
Overview
- Connectivity
- Wired
- Weight
- 540 g
- Colour
- Grey
- Ethernet LAN
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Verbatim
- Category
- Laptop Docks & Port Replicators
- Model
- 66632
- Part number
- 66632
- EAN / UPC
- 4895117966327
- Also known as
- Verbatim 66632 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Specifications
39 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Maximum memory card size | 2 TB |
| Data transfer rate | 5 Gbit/s |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Charging function | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| Output current | 5 A |
| Output voltage | 20 V |
| Power consumption (max) | 100 W |
| USB cable length | 1 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 196 mm |
| Depth | 90 mm |
| Height | 45 mm |
| Weight | 540 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 202 mm |
| Package depth | 410 mm |
| Package height | 245 mm |
| Package weight | 1.41 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Power, USB Type-C to USB Type-C |
| Manual | Yes |
