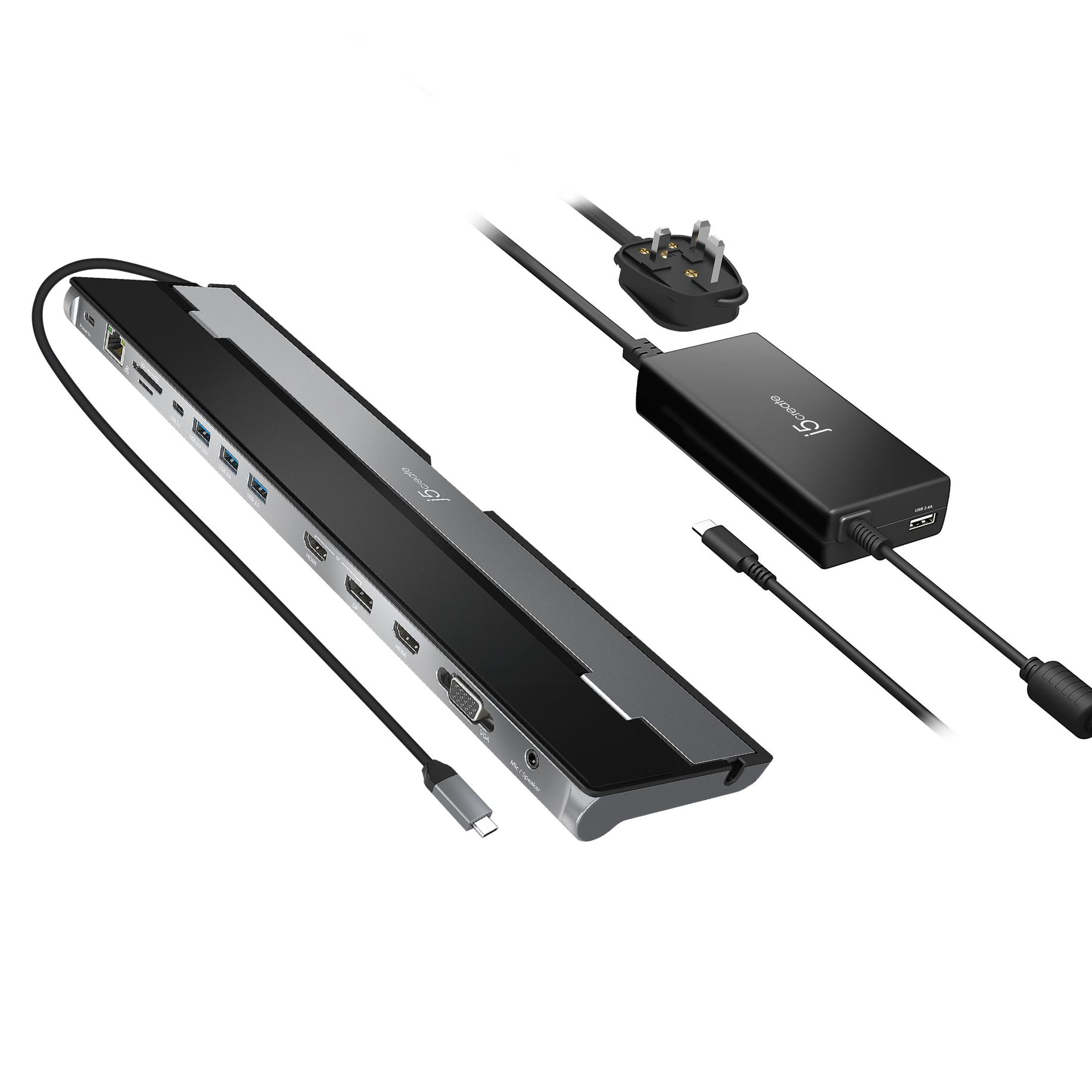

JCD543P USB-C™ Triple Display Docking Station with
j5create

JCD543P USB-C™ Triple Display Docking Station with

100W PD Adapter

Model JCD543P-FNEAN 24712795084003

69 specifications
  • ConnectivityWired
  • Weight300 g
  • ColourBlack, Silver
  • Ethernet LANYes
  • Power source typeDC, USB
  • Operating temperature (T-T)0 - 48 °C
See all specifications

Overview

Connectivity
Wired
Weight
300 g
Colour
Black, Silver
Ethernet LAN
Yes
Power source type
DC, USB
Operating temperature (T-T)
0 - 48 °C
Brand
j5create
Model
JCD543P-FN
Part number
JCD543P-FN
EAN / UPC
24712795084003, 4712795084009
Also known as
j5create JCD543P USB-C™ Triple Display Docking Station with 100W PD Adapter

Specifications

69 specifications in 12 groups

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
HDMI ports quantity2
VGA (D-Sub) ports quantity1
DisplayPorts quantity1
Microphone inNo
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Product colourBlack, Silver
Colour nameSilver and Black
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SD
Data transfer rate5 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 1080 pixels
Maximum analog resolution1920 x 1080 pixels
Number of displays supported3
Display modesExtended, Mirror
Housing materialAluminium
Country of originTaiwan
CompatibilityMacbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0

Power

Power source typeDC, USB
Power connectorUSB Type-C
AC input voltage110 - 220 V
Input current0.8 A
Power supply100 W
Output current4.75 A
Output voltage20 V
Power consumption (typical)4.5 W
USB cable length0.45 m

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 48 °C
Storage temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Weight & dimensions

Width82.5 mm
Depth350 mm
Height23.4 mm
Weight300 g

Packaging data

Quantity per pack1 pc(s)
Package width89.3 mm
Package depth358 mm
Package height63.5 mm
Package weight920.5 g

Packaging content

AC adapter includedYes
Cables includedUSB Type-C
Packaging content1 - JCD543P USB-C Triple Display Docking Station 1 - JUP2290 100W USB-C Super Charger 1 - Quick Installation Guide
Quick start guideYes

Technical details

Warranty period2 year(s)

Logistics data

Export Control Classification Number (ECCN)EAR99
Master (outer) case gross weight2.1 kg
Master (outer) case height123 mm
Master (outer) case length398 mm
Master (outer) case width150 mm
Products per master (outer) case2 pc(s)

Other features

Special featuresSimultaneous DisplayPort™, HDMI™ and VGA Output, 13 ports in one sleek design for all your needs
I/O ports2 - USB™ 3.0 Type-A 1 - USB™ 3.0 Type-A fast charge 1 - USB-C™ 3.1 Gen 1 1 - USB-C™ Power Delivery 3.0 2 - 4K HDMI™ 1 - DisplayPort™ 1 - VGA 1 - SD™ & microSD™ memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - 3.5 mm combo audio jack
