JTD568 Thunderbolt™ 4 Quad Display Docking Station-EU, Black
Model JTD568Part no. JTD568-ENEAN 4712795088304
69 specifications
- ConnectivityWired
- Weight681 g
- ColourGrey
- Ethernet LANYes
- Power source typeDC
- Operating temperature (T-T)0 - 48 °C
Overview
- Connectivity
- Wired
- Weight
- 681 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 48 °C
- Brand
- j5create
- Category
- Laptop Docks & Port Replicators
- Model
- JTD568
- Part numbers
- JTD568-EN, JTD568-FN
- EAN / UPC
- 4712795088304, 4712795088311
- Also known as
- j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-EU, Black
Specifications
69 specifications in 12 groups

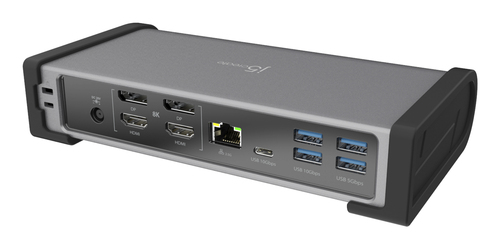

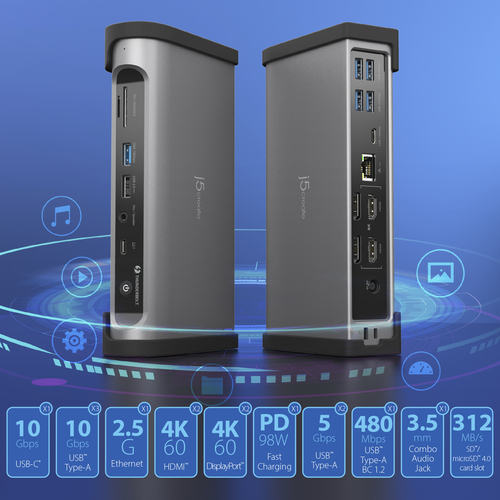

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |

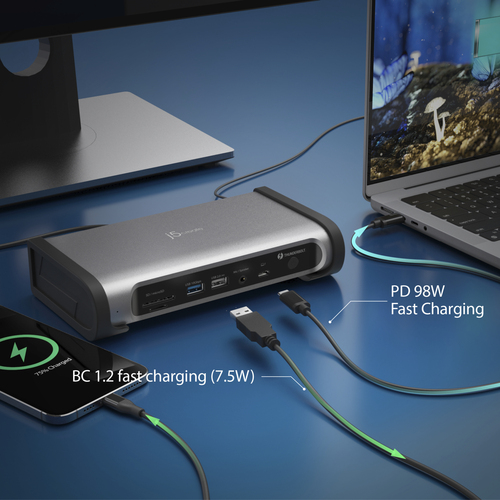

| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 98 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|

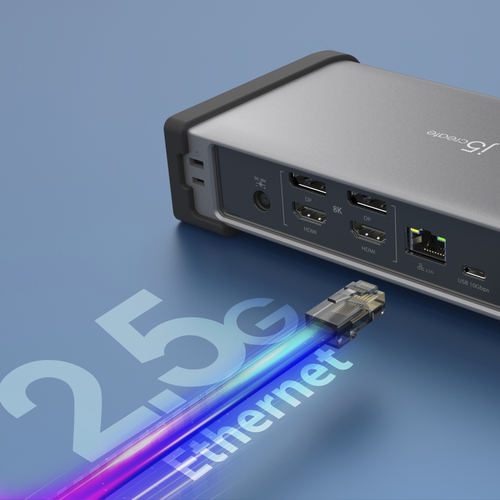

| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Colour name | Dark / Space Grey |

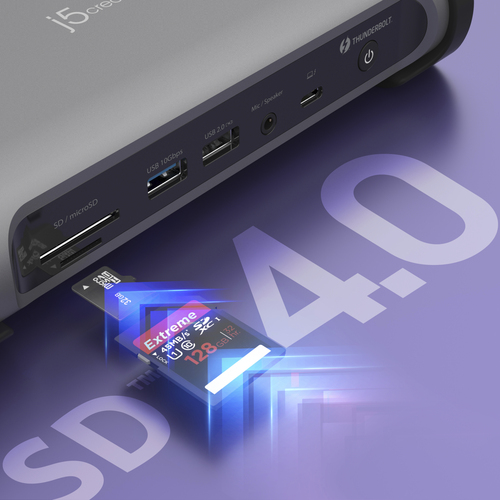

| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 10 Gbit/s |

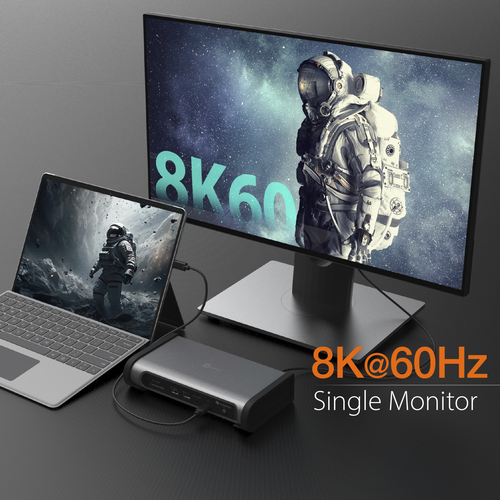

| HD type | 8K Ultra HD |
| Maximum digital resolution | 7860 x 4320 pixels |
| Maximum refresh rate | 240 Hz |

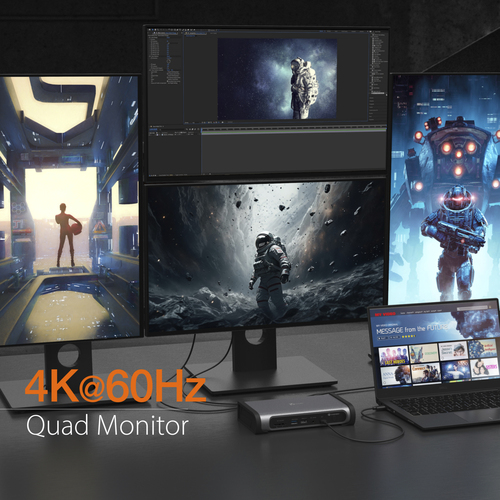

| Number of displays supported | 4 |

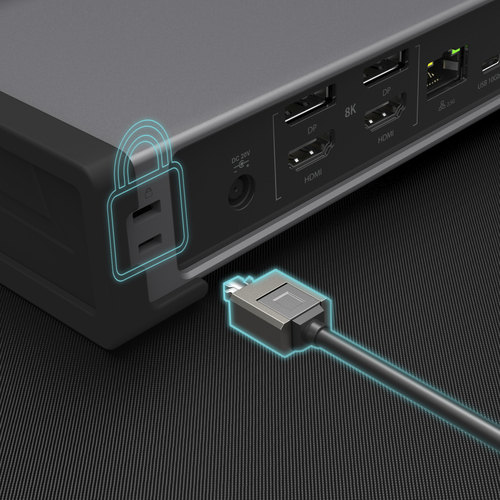

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| Charging function | Yes |
| Housing material | Aluminium |
| LED indicators | Yes |
| Country of origin | Taiwan |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input current | 6.75 A |
| Power supply | 135 W |
| Compatible power plug types | EU |
| Thunderbolt 4 cable length | 0.8 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 48 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 201 mm |
| Depth | 109 mm |
| Height | 43 mm |
| Weight | 681 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 122 mm |
| Package depth | 237 mm |
| Package height | 94 mm |
| Package weight | 1.67 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| Packaging content | 1 - JTD568 Thunderbolt™ 4 Quad display Docking Station 1 - 135W AC adapter with up to 98W PD charge 1 - Thunderbolt™ 4 Cable (2.6 ft / 80 cm) 1 - Quick Installation Guide (QIG) |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Master (outer) case GTIN (EAN/UPC) | 24712795088308 |
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case height | 155 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case net weight | 3.6 kg |
| Master (outer) case width | 207 mm |
| Products per master (outer) case | 2 pc(s) |
