Hypertec ProDock Station - Universal Multi-Display Docking Station
Hypertec

ProDock Station - Universal Multi-Display Docking Station

Model StationPart no. HYP-USBCAPD-SEAN 5050914185602

100 specifications
  • ConnectivityWired
  • Weight850 g
  • ColourBlack
  • Ethernet LANYes
  • Built-in speaker(s)No
  • Power source typeAC, DC
See all specifications

Overview

Connectivity
Wired
Weight
850 g
Colour
Black
Ethernet LAN
Yes
Built-in speaker(s)
No
Power source type
AC, DC
Brand
Hypertec
Model
Station
Part number
HYP-USBCAPD-S
EAN / UPC
5050914185602
Also known as
Hypertec ProDock Station - Universal Multi-Display Docking Station

Specifications

100 specifications in 13 groups

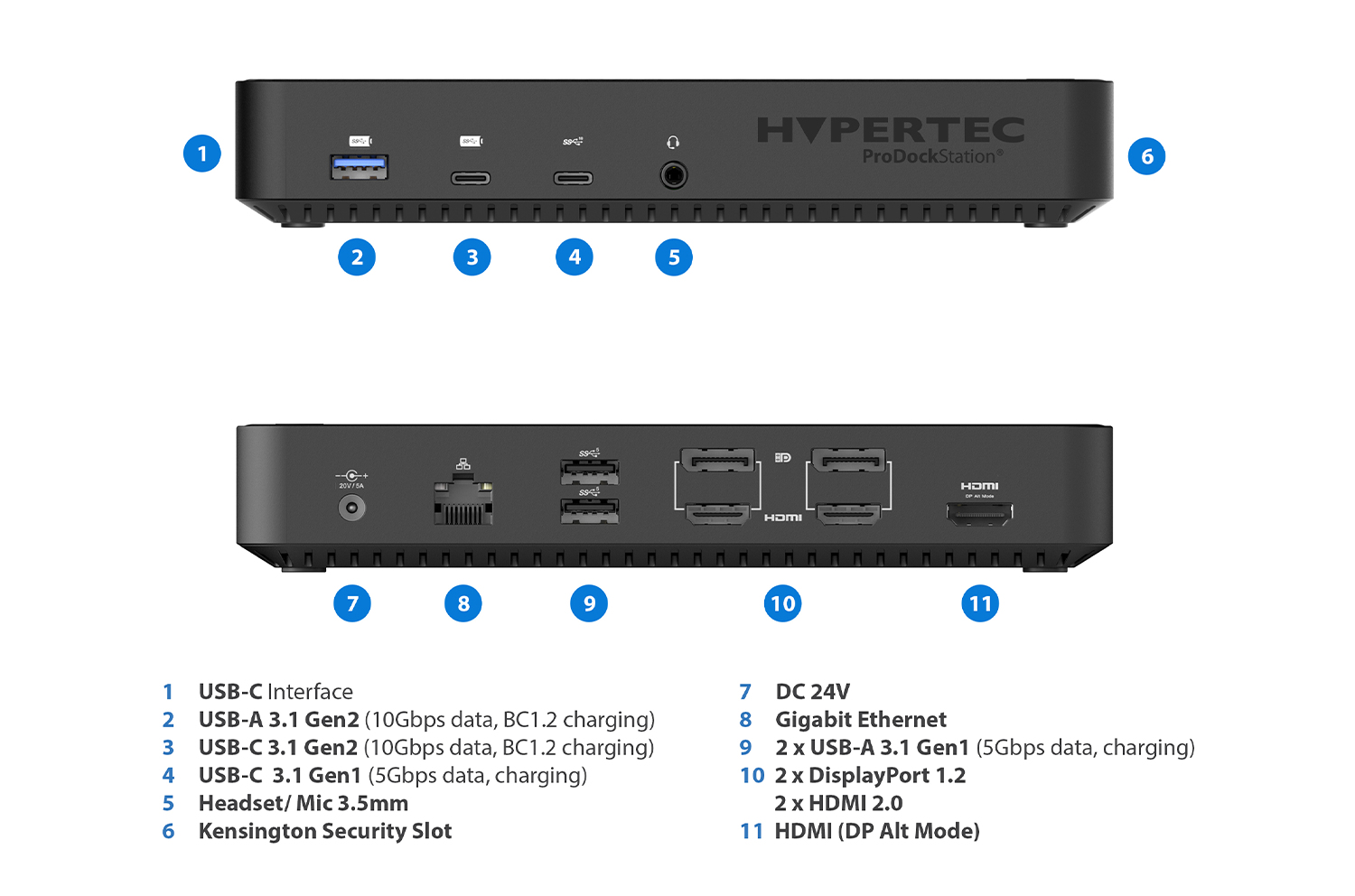

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity0
Micro-USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB4 ports quantity0
PowerShareNo
Number of USB ports with PowerShare support0
USB Power Delivery (USB PD)Yes
USB Power Delivery up to100 W
Audio output3.5mm jacket
HDMI ports quantity3
VGA (D-Sub) ports quantity0
DisplayPorts quantity2
Mini DisplayPorts quantity0
DVI-I ports quantity0
DVI-D ports quantity0
Thunderbolt ports quantity0
Thunderbolt 2 ports quantity0
Thunderbolt 3 ports quantity0
Thunderbolt 4 ports quantity0
Thunderbolt 5 ports quantity0
Microphone inNo
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
Firewire (IEEE 1394) ports0
FireWire 400 ports quantity0
FireWire 800 ports quantity0
Parallel ports quantity0
Serial ports quantity0
PS/2 ports quantity0
Fiber ports quantity0
DC-in jackYes
Dual antenna pass-throughNo
HDCPNo
USB Type-C DisplayPort Alternate ModeYes
USB connector typeUSB Type-A, USB Type-C
eSATA ports quantity0
eSATA/USB 2.0 ports quantity0
PCI Express slots quantity0
PCI Express x16 slots0

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3

Performance

Product colourBlack
Card reader integratedNo
Built-in SSDNo
NVMeNo
SSD enclosureNo
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz
Number of displays supported3
Cable lock slotYes
Cable lock slot typeKensington
On/off switchYes
Display modesDouble, Duplicate, Extended, Single, Triple
Charging functionYes
Housing materialPlastic, Silicone
Plug and PlayYes
Reset buttonNo
Rubber feetYes
Country of originChina
Brand compatibilityUniversal
CertificationRoHS, REACH, Prop65, CE, FCC

Audio

Built-in speaker(s)No

Power

Power source typeAC, DC
AC input voltage24 V
Input current5.41 A
Power supply130 W
USB cable length0.5 m
Wireless chargingNo

Software

Windows operating systems supportedYes
Mac compatibilityYes
Mac operating systems supportedYes
Other operating systems supportedChromeOS

Control unit

Remote control includedNo

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 55 °C
Storage relative humidity (H-H)0 - 85%

Weight & dimensions

Width85 mm
Depth191 mm
Height31.8 mm
Weight850 g

Packaging data

Quantity per pack1 pc(s)
Package dimensions (WxDxH)280 x 210 x 42 mm

Packaging content

AC adapter includedYes
Cables includedUSB Type-A to USB Type-C, USB Type-C
ManualYes

Technical details

Warranty period1 year(s)

Other features

Maximum operating temperature70 °C
USB data transfer rates10000 Mbit/s
USB portYes
USB ports quantity6
