j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock
j5create

JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock

Model JCD397Part no. JCD397-NEAN 4712795086324

71 specifications
  • ConnectivityWired
  • Weight121.4 g
  • ColourGrey
  • Ethernet LANYes
  • Power source typeUSB
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
121.4 g
Colour
Grey
Ethernet LAN
Yes
Power source type
USB
Operating temperature (T-T)
0 - 40 °C
Brand
j5create
Model
JCD397
Part number
JCD397-N
EAN / UPC
4712795086324
Also known as
j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock

Specifications

71 specifications in 12 groups

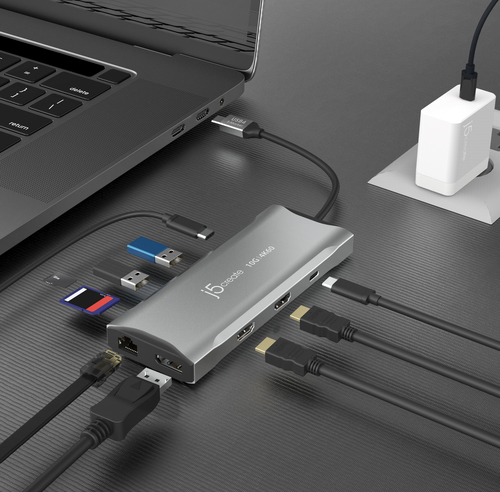

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0

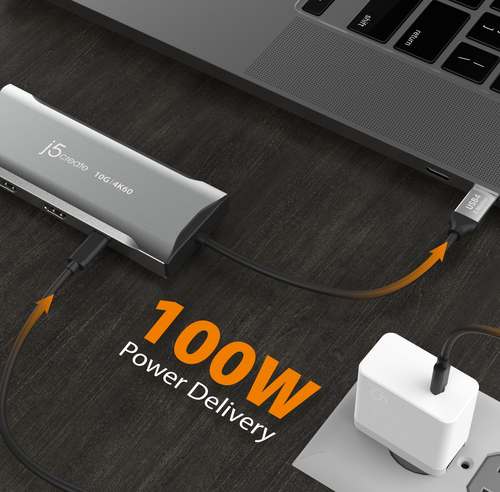

USB Power Delivery up to100 W
HDMI ports quantity2
HDMI version2.0
DisplayPorts quantity1
DisplayPort version1.4a
Microphone inNo
Headphone outputs0
USB Type-C DisplayPort Alternate ModeYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s

Performance

Product colourGrey
Colour nameSpace Grey
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), SD
Data transfer rate10 Gbit/s
HD type4K Ultra HD
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate240 Hz

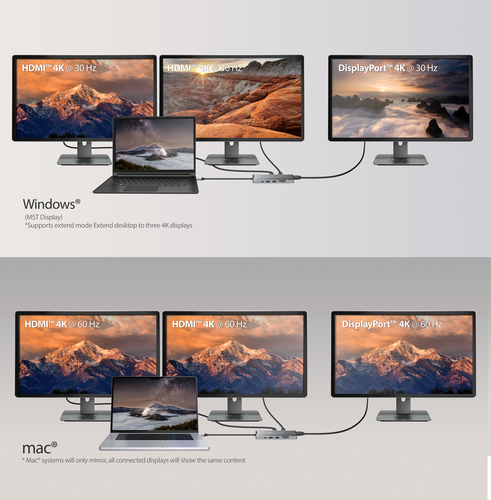

Number of displays supported3
Display modesExtended, Mirror, Primary display
Charging functionYes
Housing materialAluminium
Plug and PlayYes
Country of originChina
CompatibilityAvailable USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.

Power

Power source typeUSB
Power connectorUSB Type-C
Output current0.79 A
Output voltage5 V
Power consumption (typical)4.16 W
USB cable length0.2 m

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-17 - 68 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Weight & dimensions

Width55 mm
Depth17 mm
Height148 mm
Weight121.4 g

Packaging data

Quantity per pack1 pc(s)
Package width193 mm
Package depth125 mm
Package height22.5 mm
Package weight151 g

Packaging content

Cables includedUSB Type-C
ManualYes
Quick start guideYes

Technical details

Master (outer) case GTIN (EAN/UPC)24712795086328
Warranty period2 year(s)

Logistics data

Export Control Classification Number (ECCN)EAR99
Master (outer) case gross weight3.8 kg
Master (outer) case height190 mm
Master (outer) case length445 mm
Master (outer) case width226 mm
Products per master (outer) case18 pc(s)
Products per shipping (inner) case6 pc(s)
Shipping (inner) case width16.5 cm
Shipping (inner) case length21.2 cm
Shipping (inner) case height13.7 cm
Shipping (inner) case net weight1.06 kg

Other features

Special featuresBuilt-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output.
