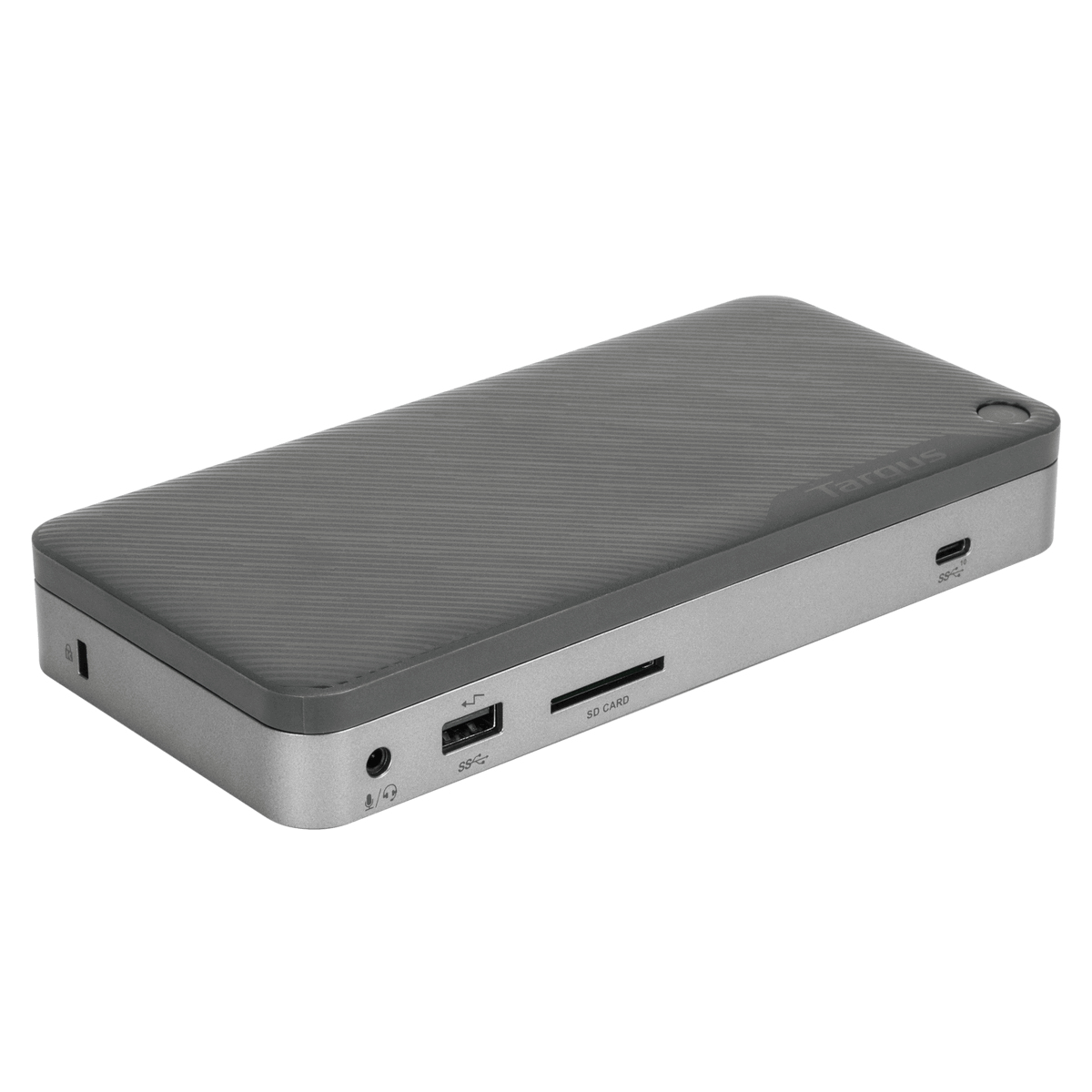

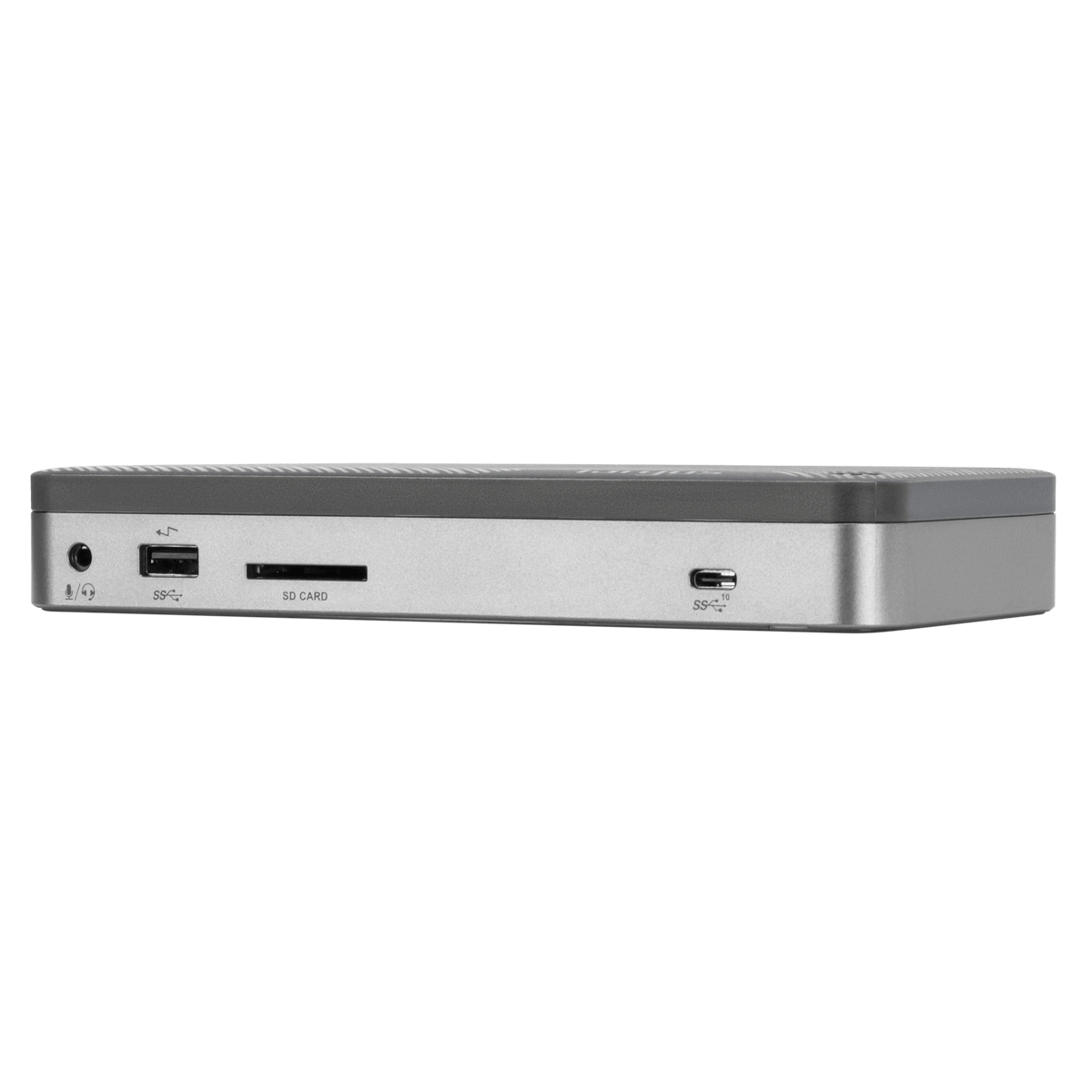

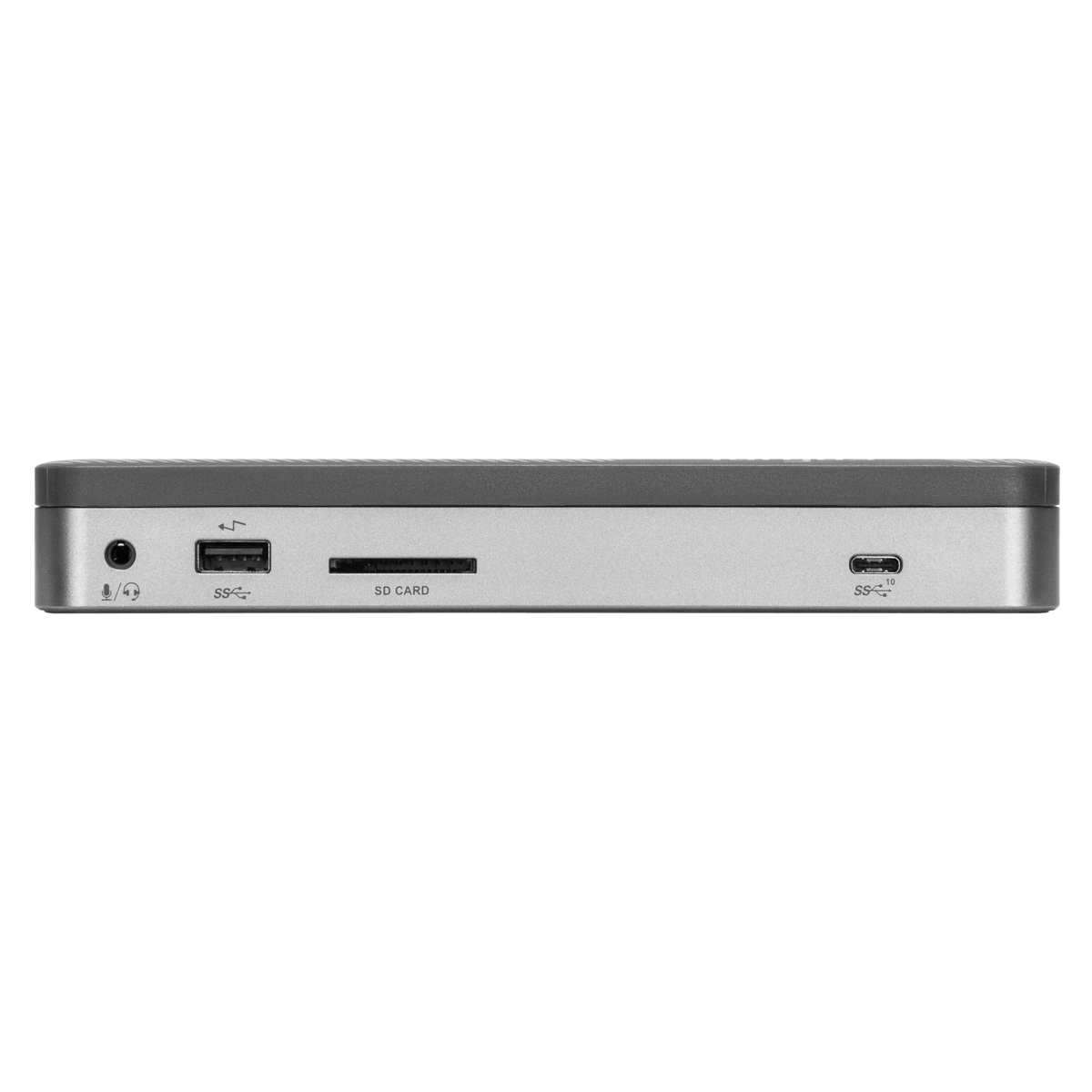

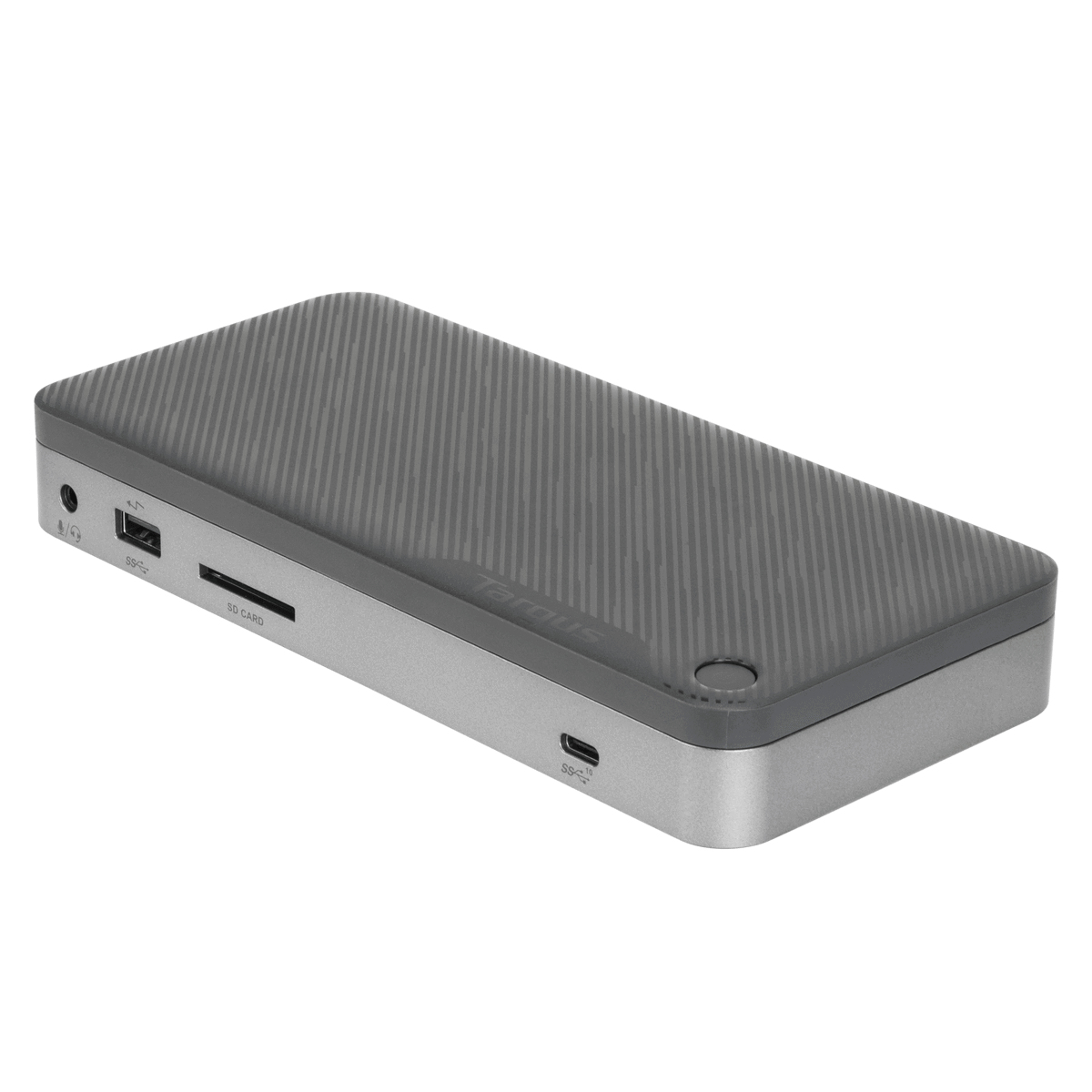

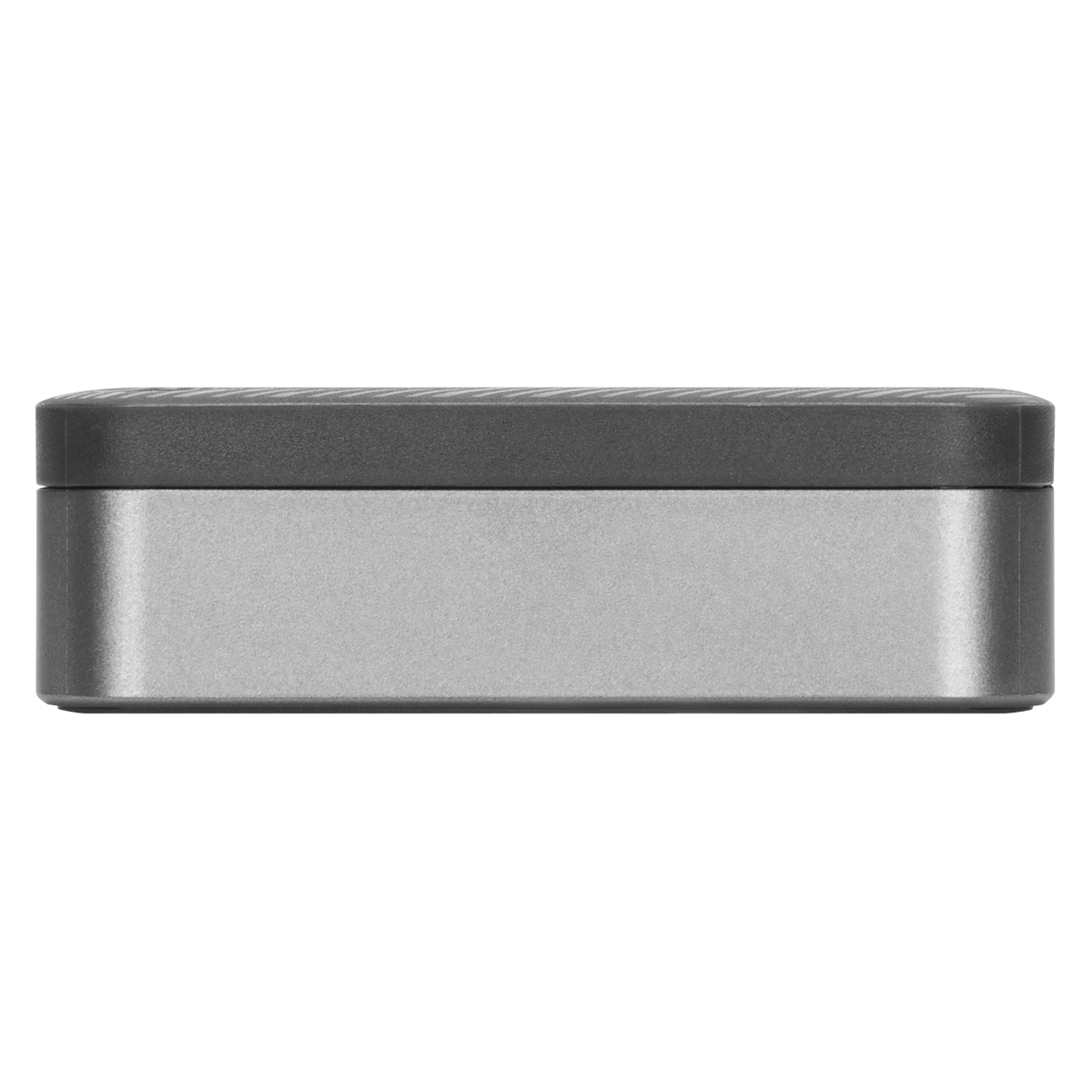

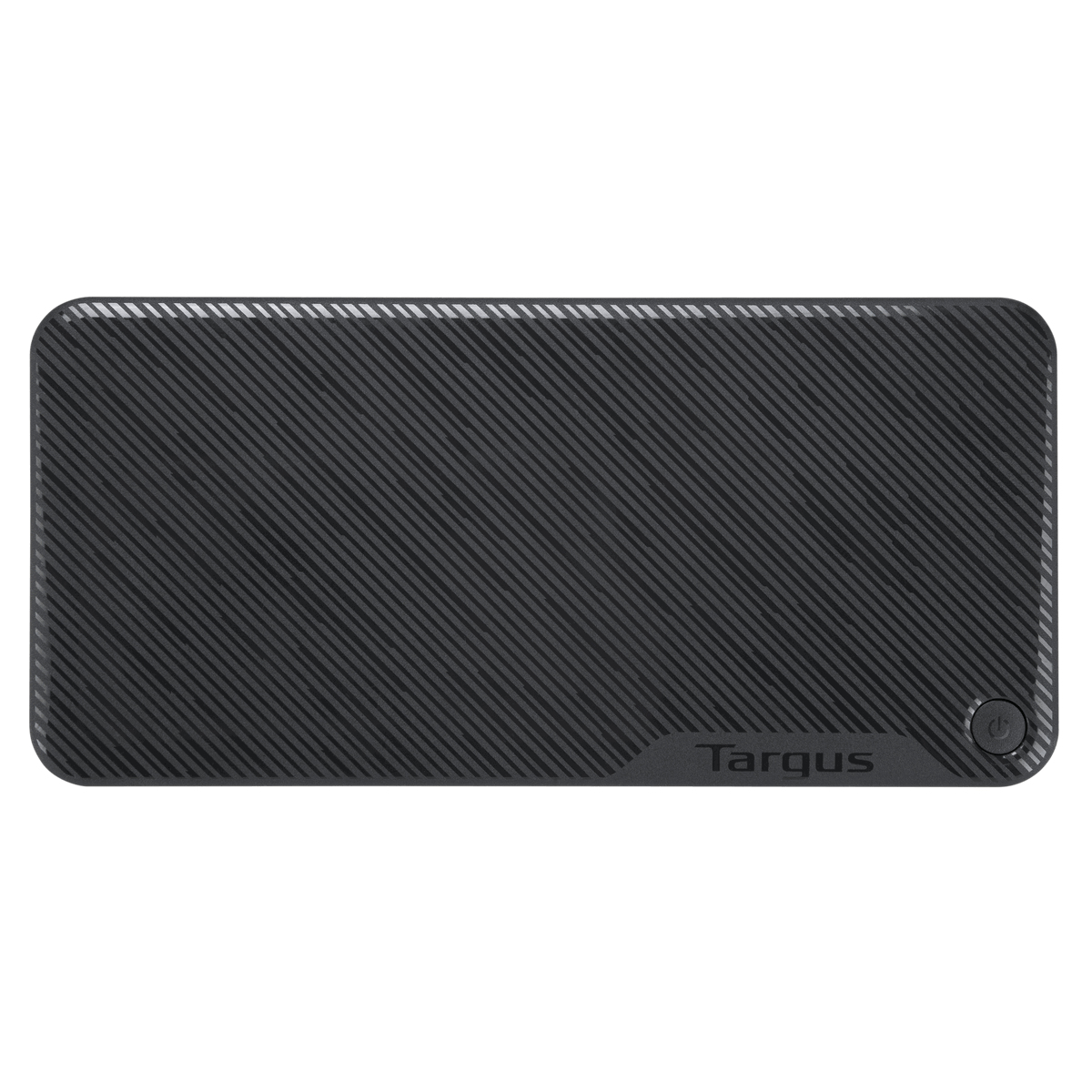

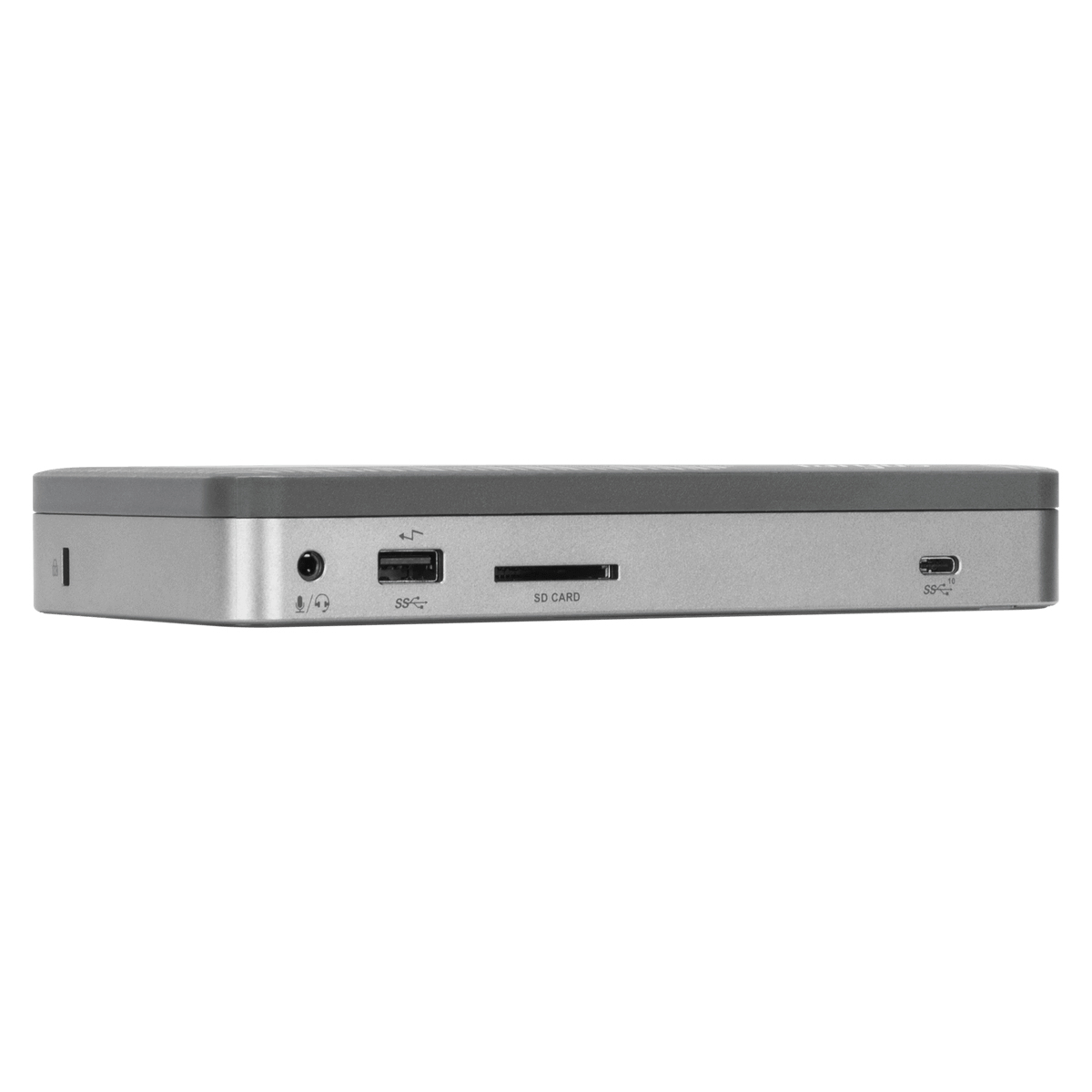

Thunderbolt 3 8K Video Dock
Model Thunderbolt 3 8K Video DockPart no. DOCK221EUZEAN 5051794029611
41 specifications
- ConnectivityWired
- Weight363 g
- ColourBlack, Grey
- Ethernet LANYes
- Power source typeAC
- Width187.5 mm
Overview
- Connectivity
- Wired
- Weight
- 363 g
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- Power source type
- AC
- Width
- 187.5 mm
- Brand
- Targus
- Category
- Laptop Docks & Port Replicators
- Model
- Thunderbolt 3 8K Video Dock
- Part number
- DOCK221EUZ
- EAN / UPC
- 5051794029611
- Also known as
- Targus Thunderbolt 3 8K Video Dock Wired Black, Grey
Specifications
41 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 85 W |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Mini DisplayPorts quantity | 0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Thunderbolt 3 ports quantity | 1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
| HD type | 8K Ultra HD |
| Number of displays supported | 2 |

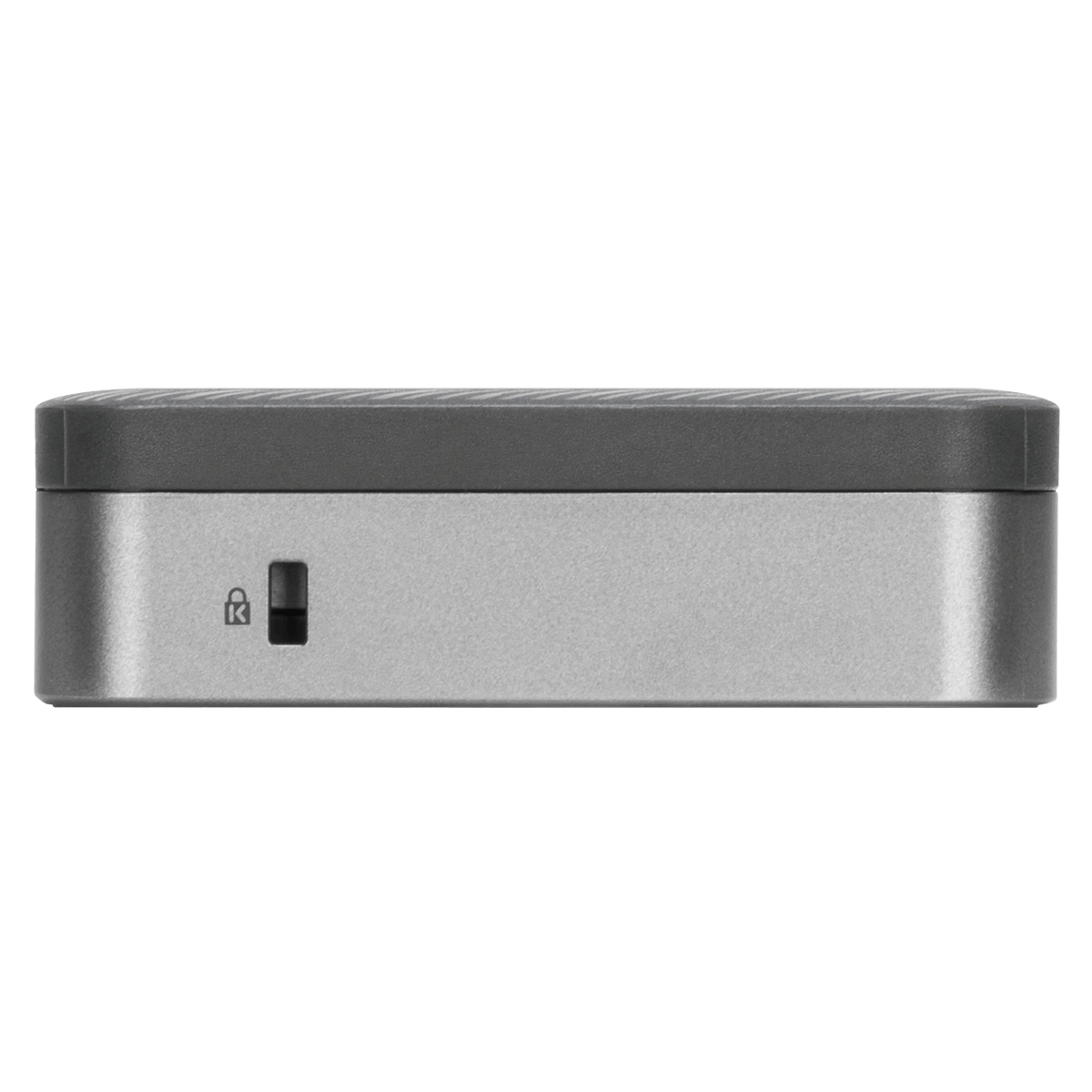

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 5, 9, 15, 20 V |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 187.5 mm |
| Depth | 27 mm |
| Height | 89 mm |
| Weight | 363 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|

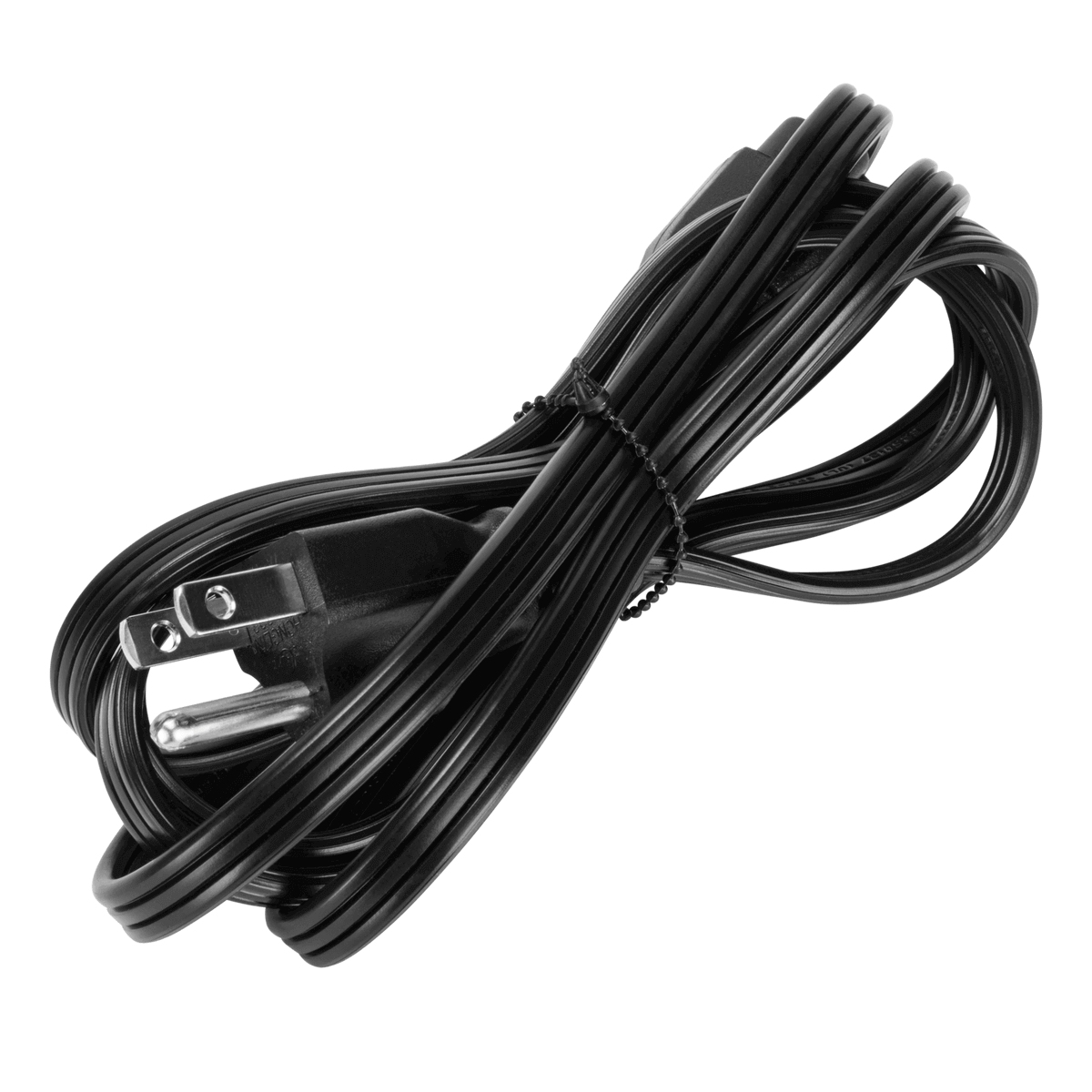

| AC adapter included | Yes |
