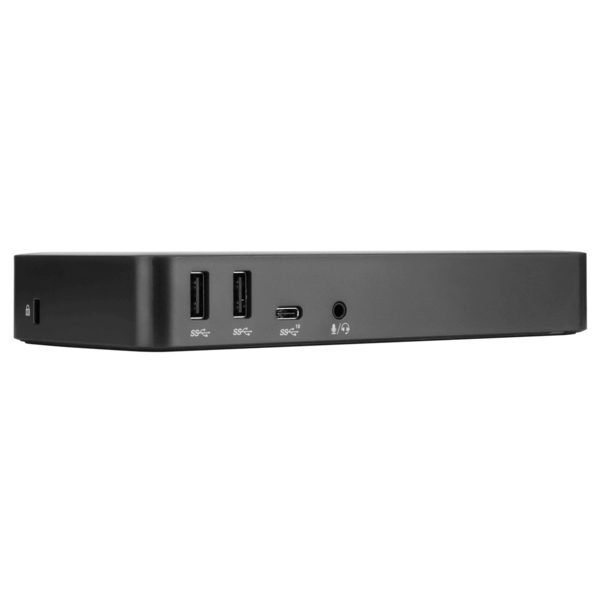

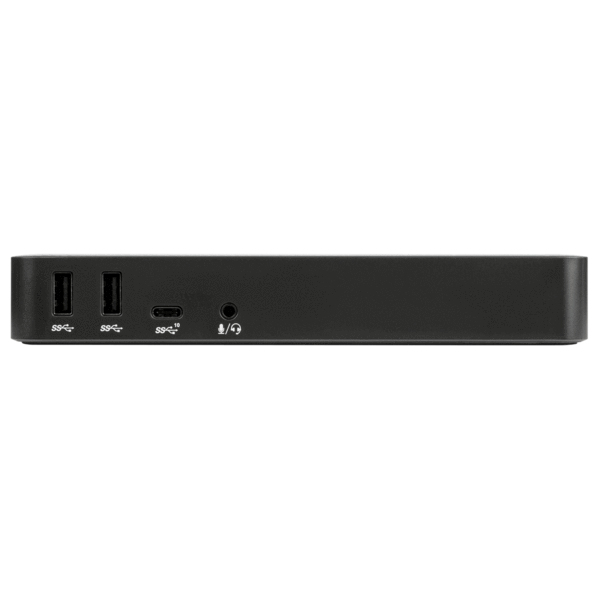

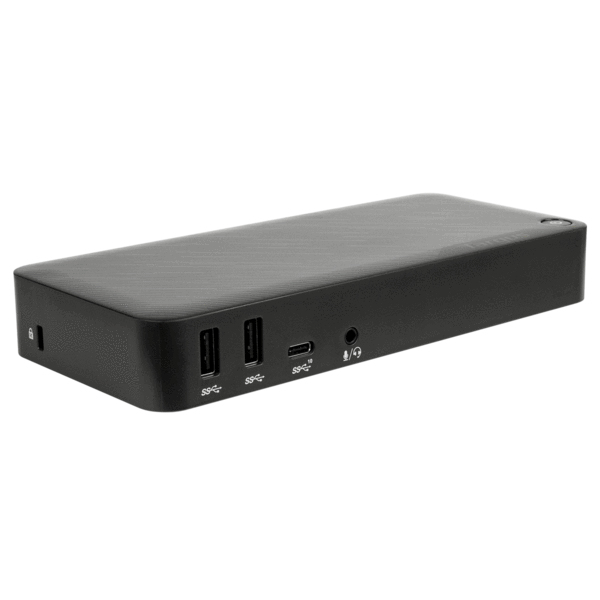

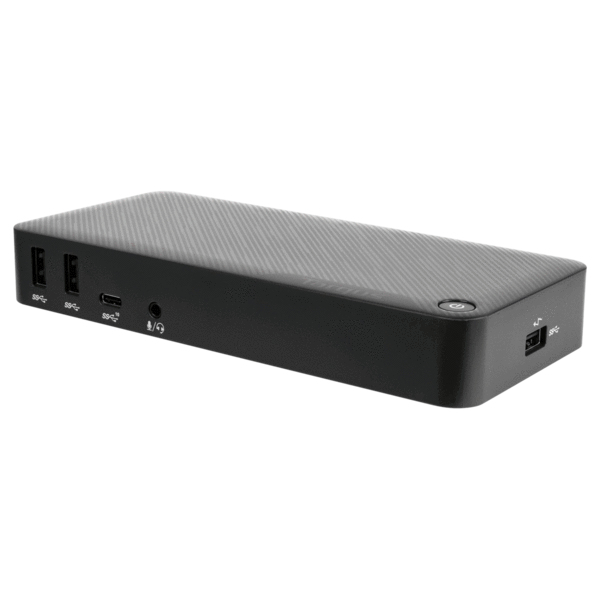

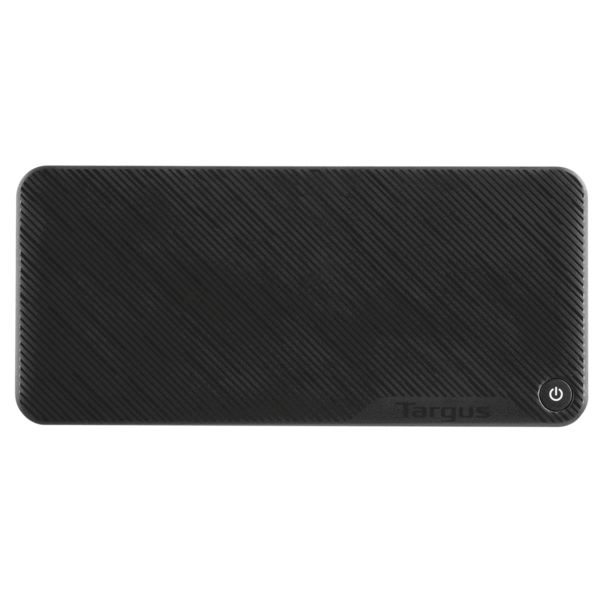

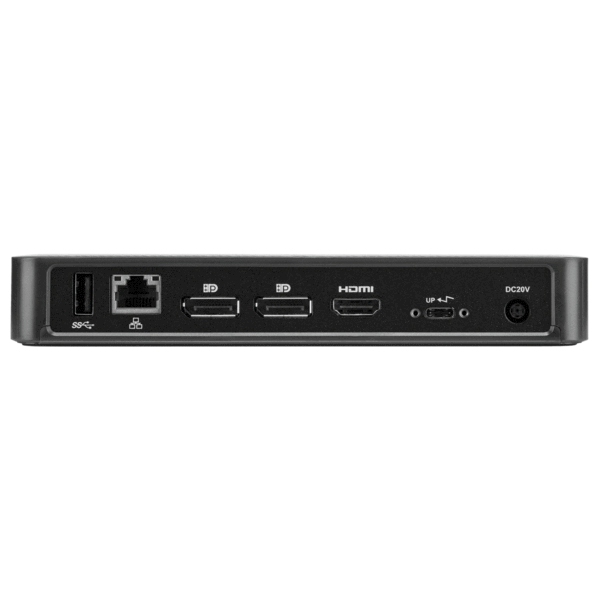

DOCK430USZ Wired Black
Model DOCK430USZPart no. DOCK430USZ-50EAN 092636336127
36 specifications
- ConnectivityWired
- Weight285 g
- ColourBlack
- Ethernet LANYes
- Built-in fanNo
- Power source typeAC, DC
Overview
- Connectivity
- Wired
- Weight
- 285 g
- Colour
- Black
- Ethernet LAN
- Yes
- Built-in fan
- No
- Power source type
- AC, DC
- Brand
- Targus
- Category
- Laptop Docks & Port Replicators
- Model
- DOCK430USZ
- Part numbers
- DOCK430USZ-50, DOCK430USZ-70, DOCK430USZ
- EAN / UPC
- 092636336127
- Also known as
- Targus DOCK430USZ Wired Black
Specifications
36 specifications in 9 groups

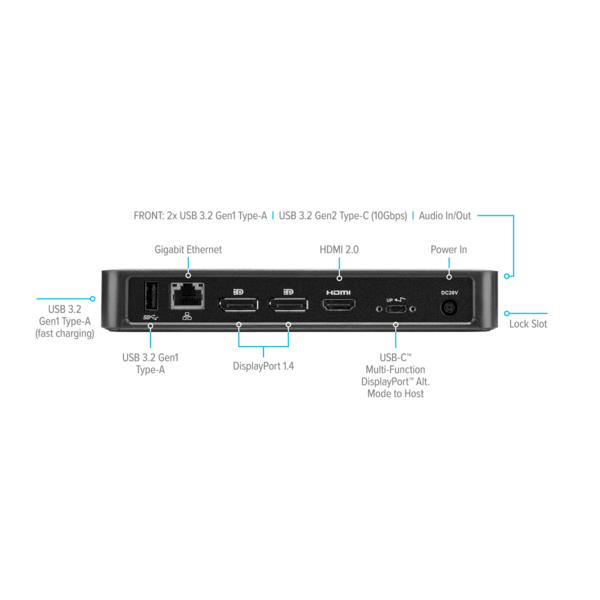

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

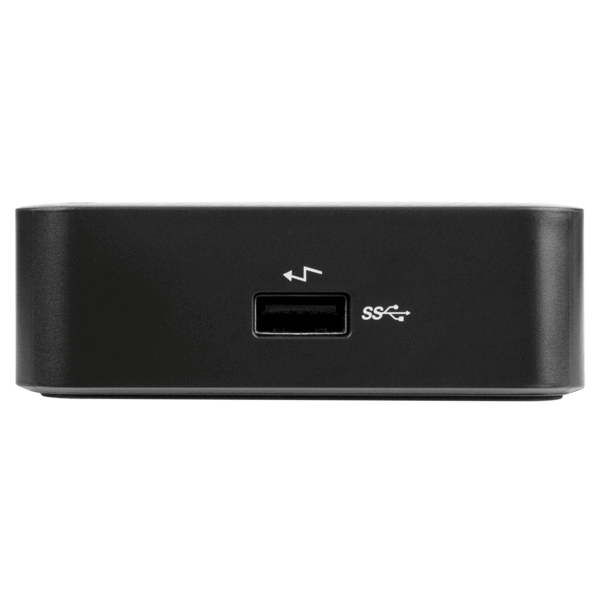

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |

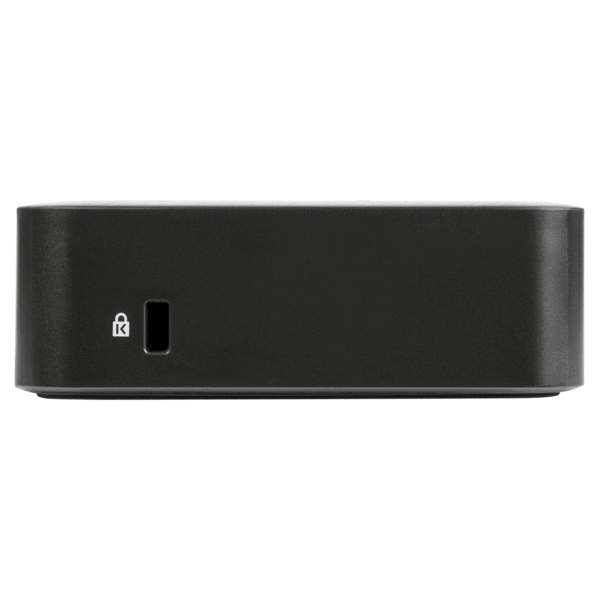

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Charging function | Yes |
Cooling
| Specification | Value |
|---|---|
| Built-in fan | No |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| Output current | 6.75 A |
| Output voltage | 20 V |
| Power consumption (max) | 135 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 27 mm |
| Height | 82 mm |
| Weight | 285 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | No |
| AC adapter included | Yes |
| User guide | Yes |
