USB 3.0 Mini Dock - Dual Monitor USB-A Docking Station with DisplayPort 4K
60Hz Video & Gigabit Ethernet - 1ft (30cm) cable - Portable USB 3.1 Gen
Model USBA2DPGBEAN 065030874328
49 specifications
- ConnectivityWired
- Weight126 g
- ColourBlack
- Ethernet LANYes
- Power source typeUSB
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 126 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Laptop Docks & Port Replicators
- Model
- USBA2DPGB
- Part number
- USBA2DPGB
- EAN / UPC
- 065030874328
- Also known as
- StarTech.com USB 3.0 Mini Dock - Dual Monitor USB-A Docking Station with DisplayPort 4K 60Hz Video & Gigabit Ethernet - 1ft (30cm) cable - Portable USB 3.1 Gen
Specifications
49 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |

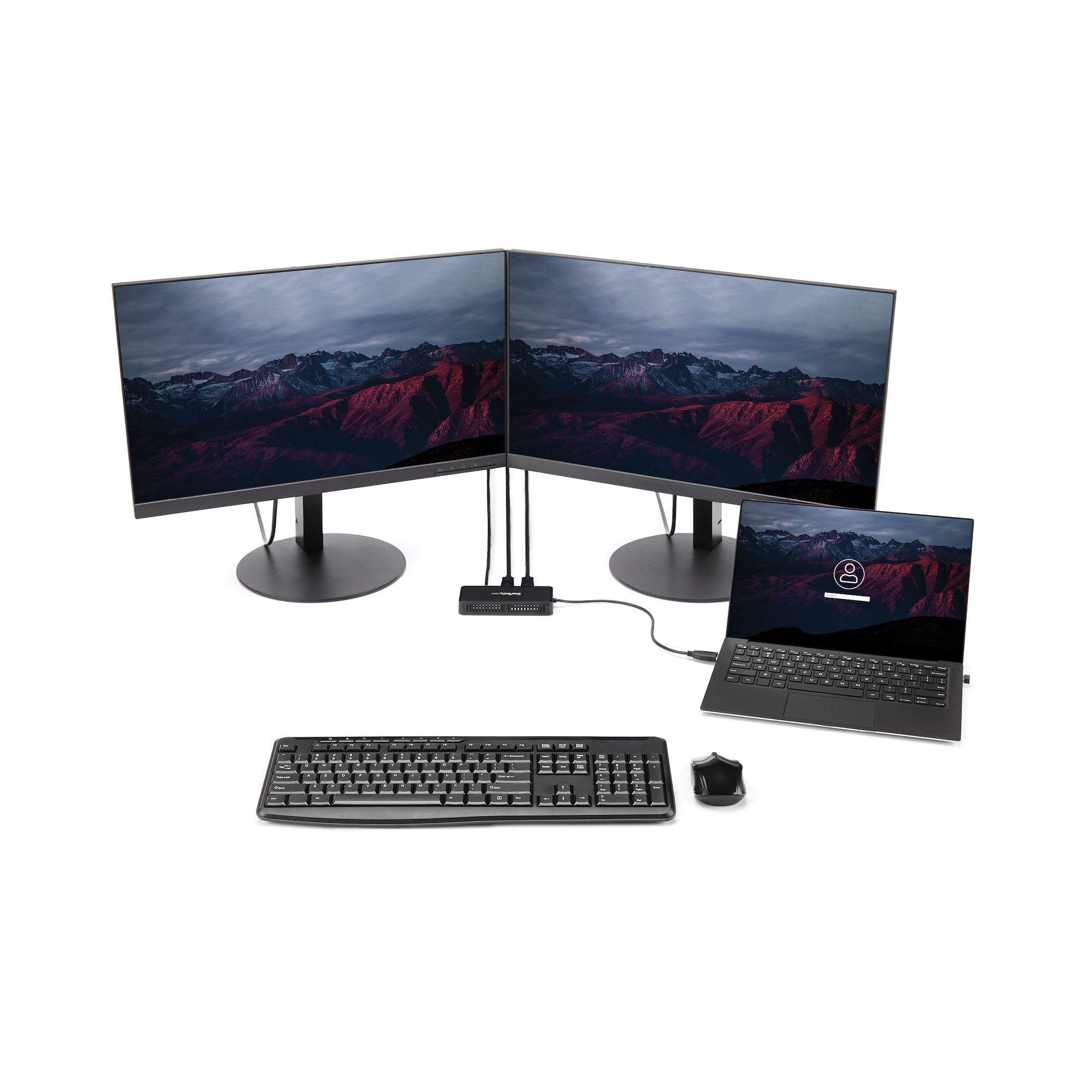

| Number of displays supported | 2 |
| UASP support | No |
| Brand compatibility | Any brand |
| Certification | CE, FCC, TAA |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 130 mm |
| Height | 20 mm |
| Weight | 126 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 114 mm |
| Package height | 38 mm |
| Package weight | 215 g |
Packaging content
| Specification | Value |
|---|---|

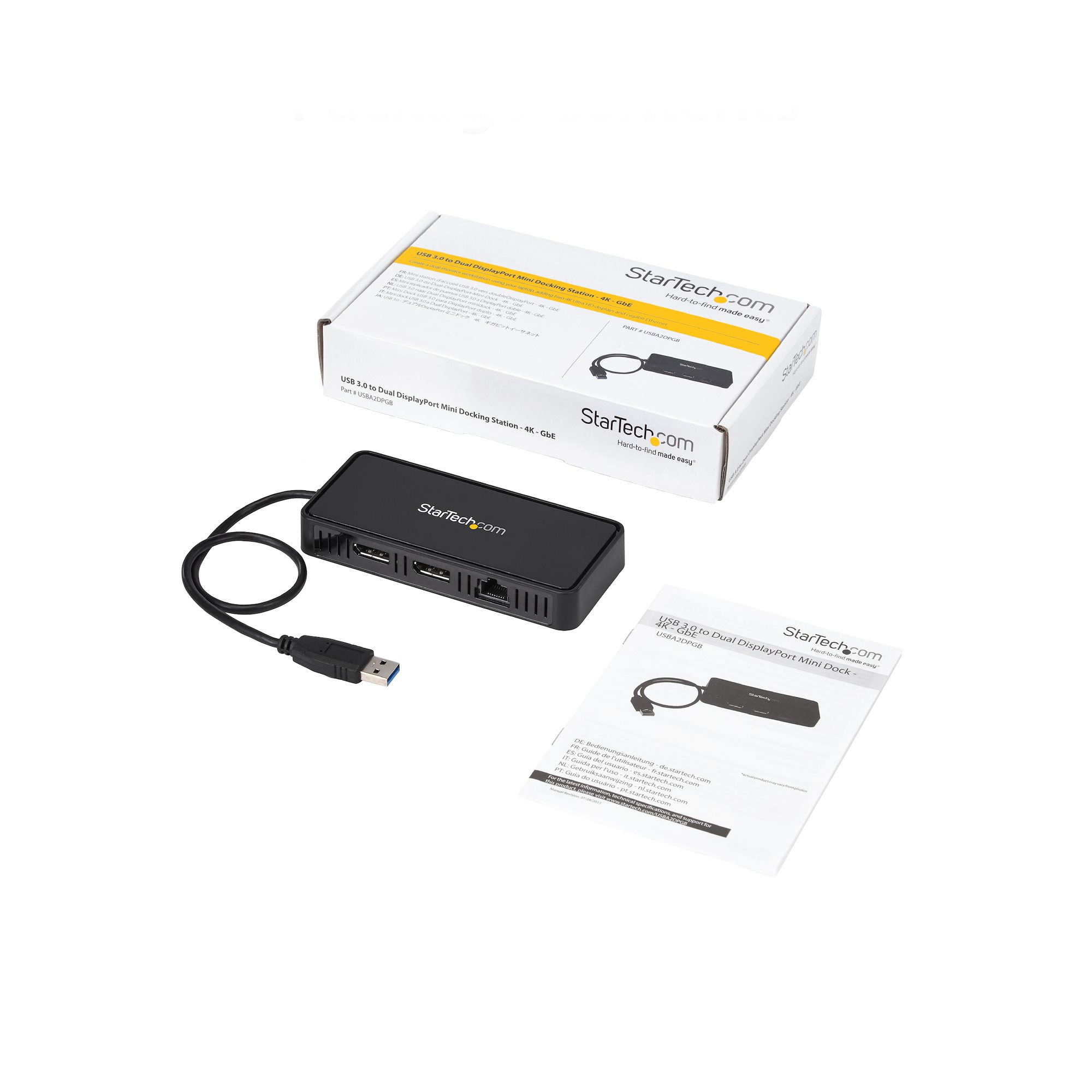

| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case height | 255 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case width | 220 mm |
| Products per master (outer) case | 20 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.14 m |
| Chipset | DisplayLink - DL-6950 |
