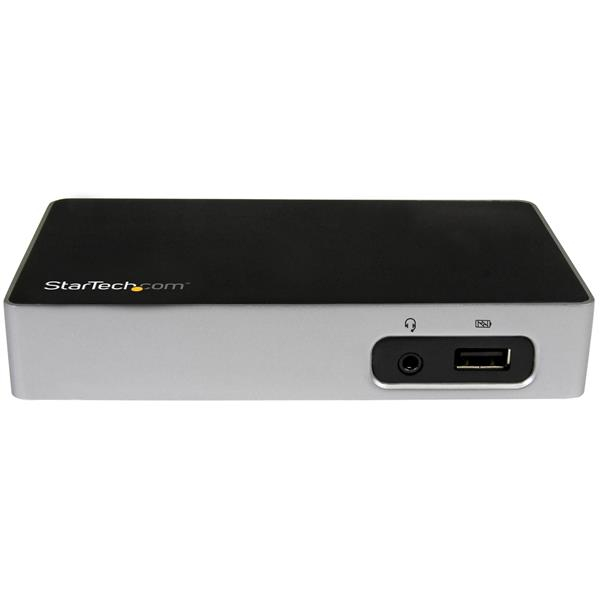

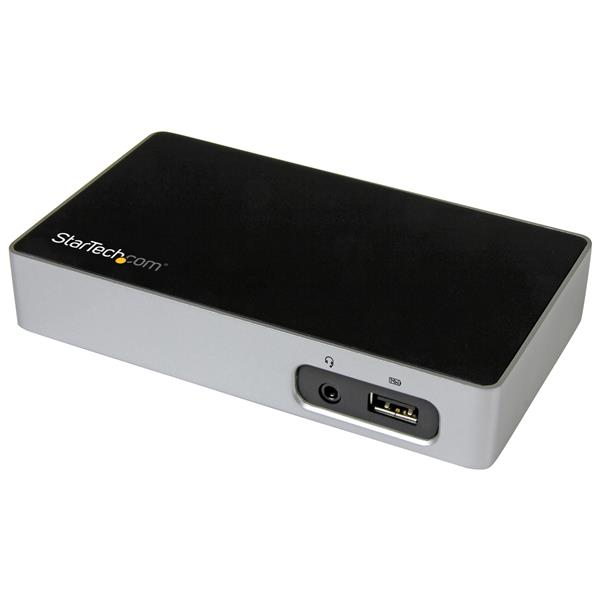

StarTech.com HDMI Docking Station for Laptops - USB 3.0

StarTech.com HDMI Docking Station for Laptops - USB 3.0

Model USB3VDOCKHEAN 065030861823

53 specifications
  • ConnectivityWired
  • Weight148 g
  • ColourBlack, Silver
  • Ethernet LANYes
  • AC input voltage100-240 V
  • Operating temperature (T-T)5 - 50 °C
See all specifications

Overview

Connectivity
Wired
Weight
148 g
Colour
Black, Silver
Ethernet LAN
Yes
AC input voltage
100-240 V
Operating temperature (T-T)
5 - 50 °C
Brand
StarTech.com
Model
USB3VDOCKH
Part number
USB3VDOCKH
EAN / UPC
065030861823, 5054629954713
Also known as
StarTech.com HDMI Docking Station for Laptops - USB 3.0

Specifications

53 specifications in 11 groups

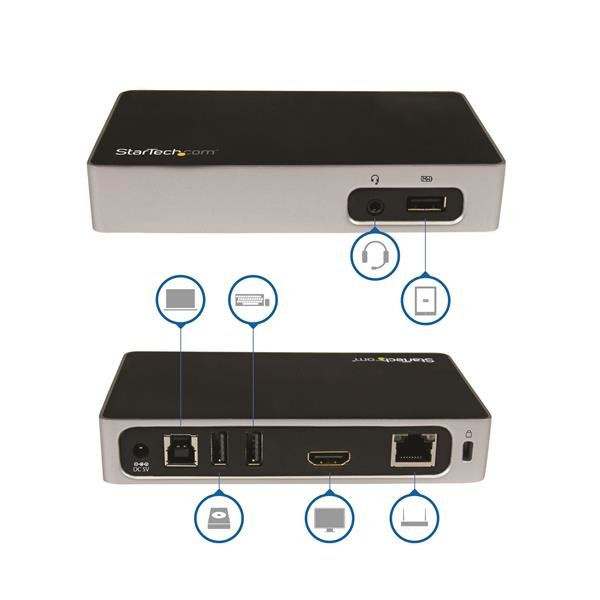

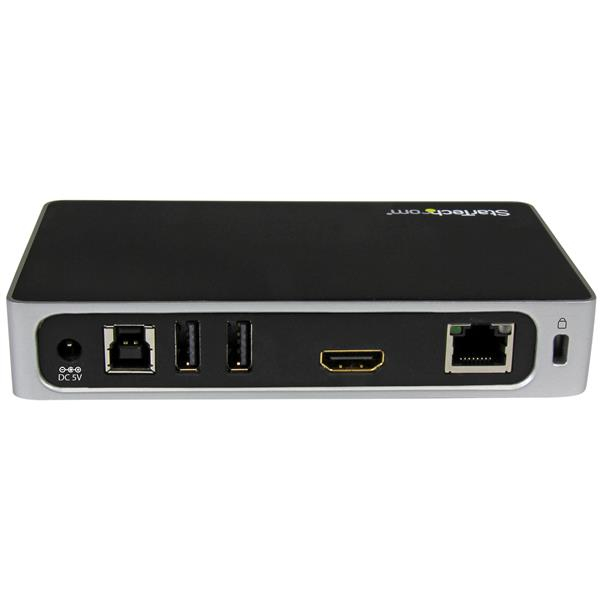

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Silver
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution2560 x 1440 pixels
Cable lock slotYes
Housing materialPlastic
LED indicatorsActivity, Link
UASP supportYes
CertificationCE, FCC

Power

AC input voltage100-240 V
Input current0.8 A
Output current4 A
Output voltage5 V
Power consumption (typical)20 W
Power plug typeType M
Compatible power plug typesAU, EU, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width79 mm
Depth139 mm
Height26 mm
Weight148 g

Packaging data

Package width229 mm
Package depth155 mm
Package height57 mm
Package weight574 g

Packaging content

AC adapter includedYes
Cables includedUSB
ManualYes

Technical details

Compliance certificatesRoHS

Other features

ChipsetDisplayLink - DL-3700, VLI - VL812
USB data transfer rates5000 Mbit/s
