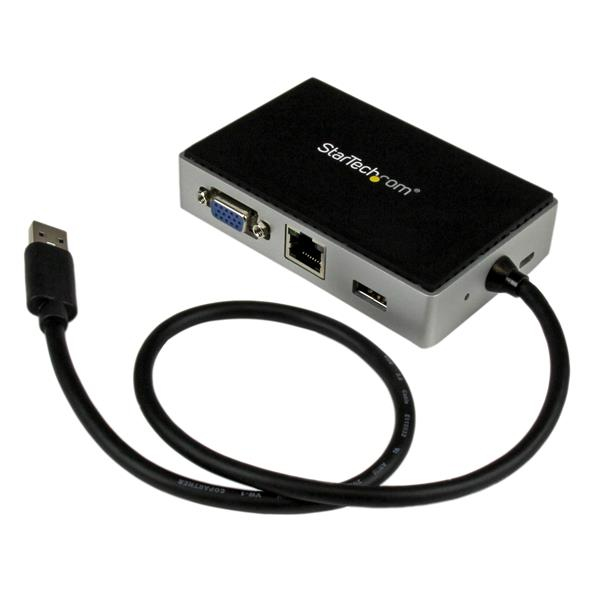

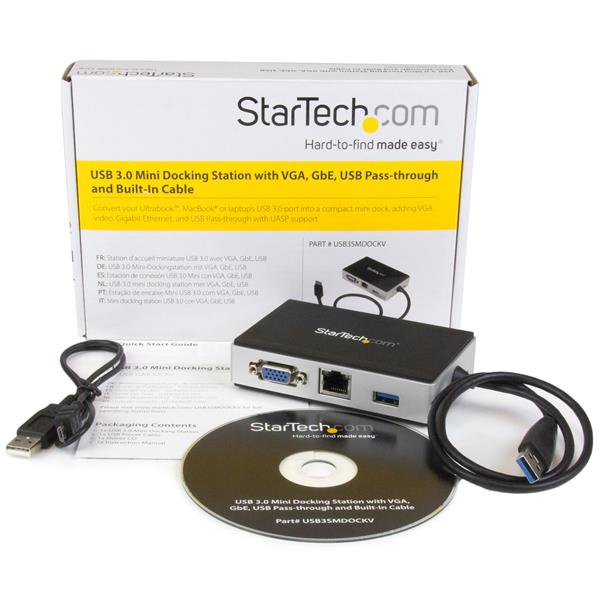

StarTech.com Travel Docking Station for Laptops - VGA - USB 3.0

StarTech.com Travel Docking Station for Laptops - VGA - USB 3.0

Model USB3SMDOCKVEAN 7427457955937

45 specifications
  • ConnectivityWired
  • Weight126 g
  • ColourBlack, Silver
  • Ethernet LANYes
  • Power source typeUSB
  • Operating temperature (T-T)0 - 50 °C
See all specifications

Overview

Connectivity
Wired
Weight
126 g
Colour
Black, Silver
Ethernet LAN
Yes
Power source type
USB
Operating temperature (T-T)
0 - 50 °C
Brand
StarTech.com
Model
USB3SMDOCKV
Part number
USB3SMDOCKV
EAN / UPC
7427457955937, 065030858878, 723856188554, 758399115521 +3 more
Also known as
StarTech.com Travel Docking Station for Laptops - VGA - USB 3.0

Specifications

45 specifications in 11 groups

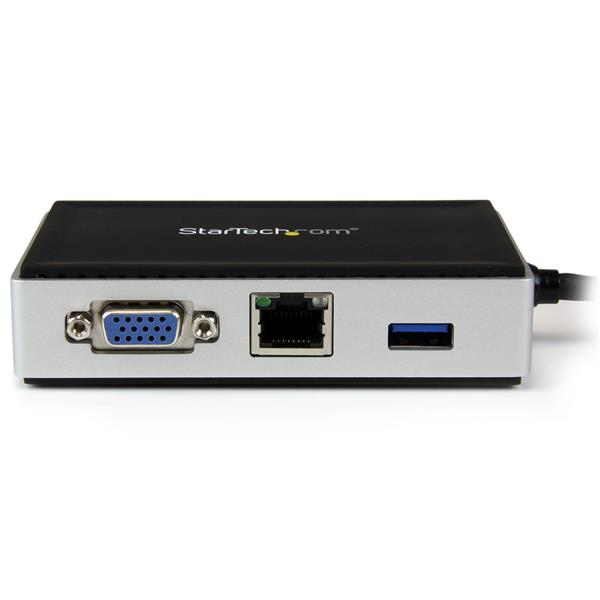

Ports & interfaces

Connectivity technologyWired

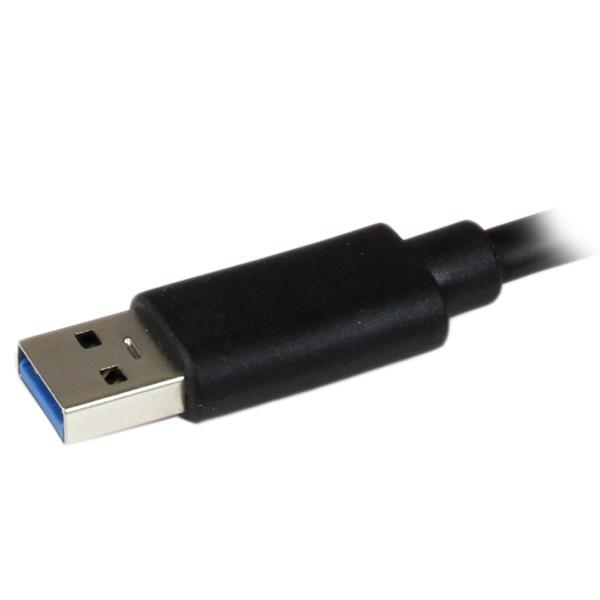

Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity0

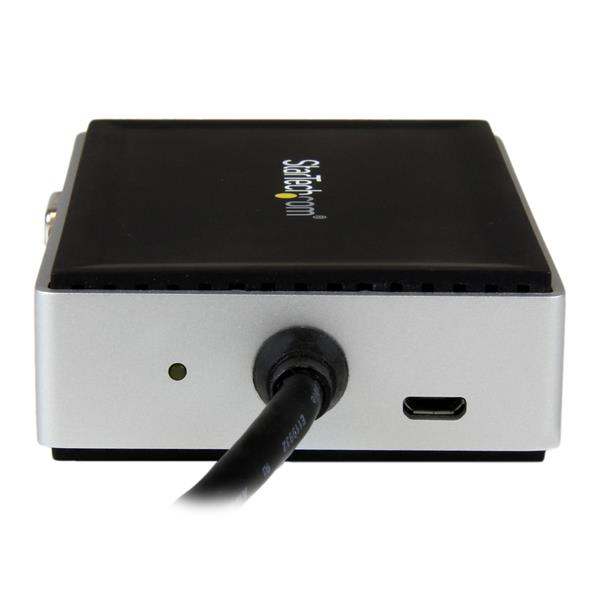

Micro-USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
VGA (D-Sub) ports quantity1
Microphone inNo
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Copper ethernet cabling technology1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Silver
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum analog resolution2048 x 1152 pixels
Housing materialPlastic
LED indicatorsActivity, Link, Power
UASP supportYes
Brand compatibilityAny brand
CertificationCE, FCC

Power

Power source typeUSB

Software

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 85%

Weight & dimensions

Width68 mm
Depth106 mm
Height25 mm
Weight126 g

Packaging data

Package width207 mm
Package depth144 mm
Package height47 mm
Package weight260 g

Packaging content

Cables includedUSB
Drivers includedYes
ManualYes

Technical details

Compliance certificatesRoHS

Other features

Cable length0.534 m
ChipsetDisplayLink - DL-3700
USB data transfer rates12,480,5000 Mbit/s
