StarTech.com HDMI and DVI Dual-Monitor Docking Station for Laptops - Single 4K Support - USB 3.0

StarTech.com HDMI and DVI Dual-Monitor Docking Station for Laptops - Single 4K Support - USB 3.0

Model USB3SMDOCK4KEAN 065030861564

53 specifications
  • ConnectivityWired
  • Weight283 g
  • ColourBlack, Silver
  • Ethernet LANYes
  • AC input voltage100-240 V
  • Operating temperature (T-T)10 - 40 °C
See all specifications

Overview

Connectivity
Wired
Weight
283 g
Colour
Black, Silver
Ethernet LAN
Yes
AC input voltage
100-240 V
Operating temperature (T-T)
10 - 40 °C
Brand
StarTech.com
Model
USB3SMDOCK4K
Part number
USB3SMDOCK4K
EAN / UPC
065030861564
Also known as
StarTech.com HDMI and DVI Dual-Monitor Docking Station for Laptops - Single 4K Support - USB 3.0

Specifications

53 specifications in 11 groups

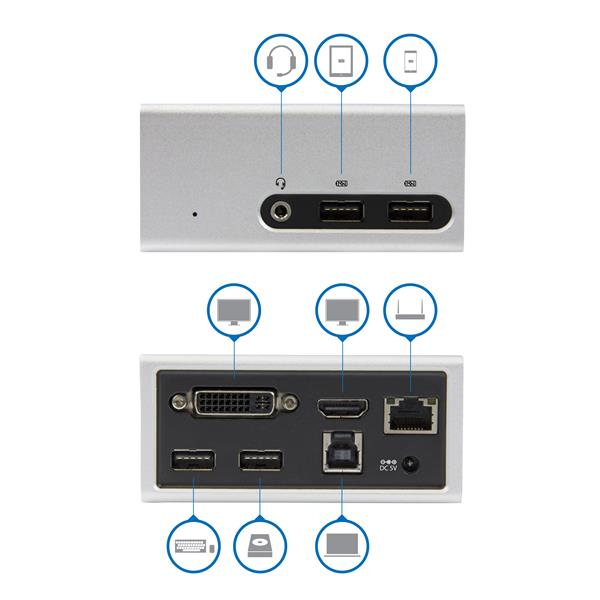

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
DVI-I ports quantity1
Combo headphone/mic portYes
Headphone outputs1
Headphone connectivity3.5 mm
USB connector typeUSB Type-A, USB Type-B

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Product colourBlack, Silver
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution3840 x 2160 pixels
Housing materialAluminium, Plastic
LED indicatorsActivity, Link, Power
UASP supportYes
CertificationCE, FCC

Power

AC input voltage100-240 V
Input current0.9 A
Output current4 A
Output voltage5 V
Power consumption (typical)20 W
Power plug typeType C
Compatible power plug typesAU, EU, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)10 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Width95 mm
Depth94 mm
Height45 mm
Weight283 g

Packaging data

Package width145 mm
Package depth225 mm
Package height56 mm
Package weight748 g

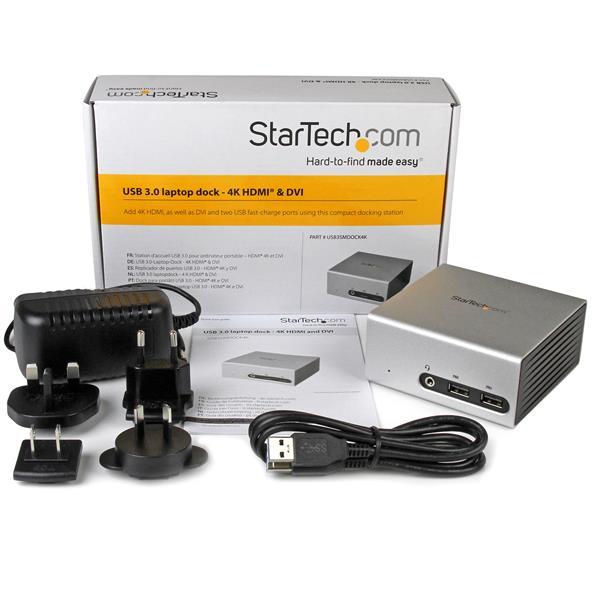

Packaging content

AC adapter includedYes
Cables includedUSB
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

ChipsetDisplayLink - DL-5900, VLI - VL812, Genesys Logic - GL3521
USB data transfer rates12,480,5000 Mbit/s
